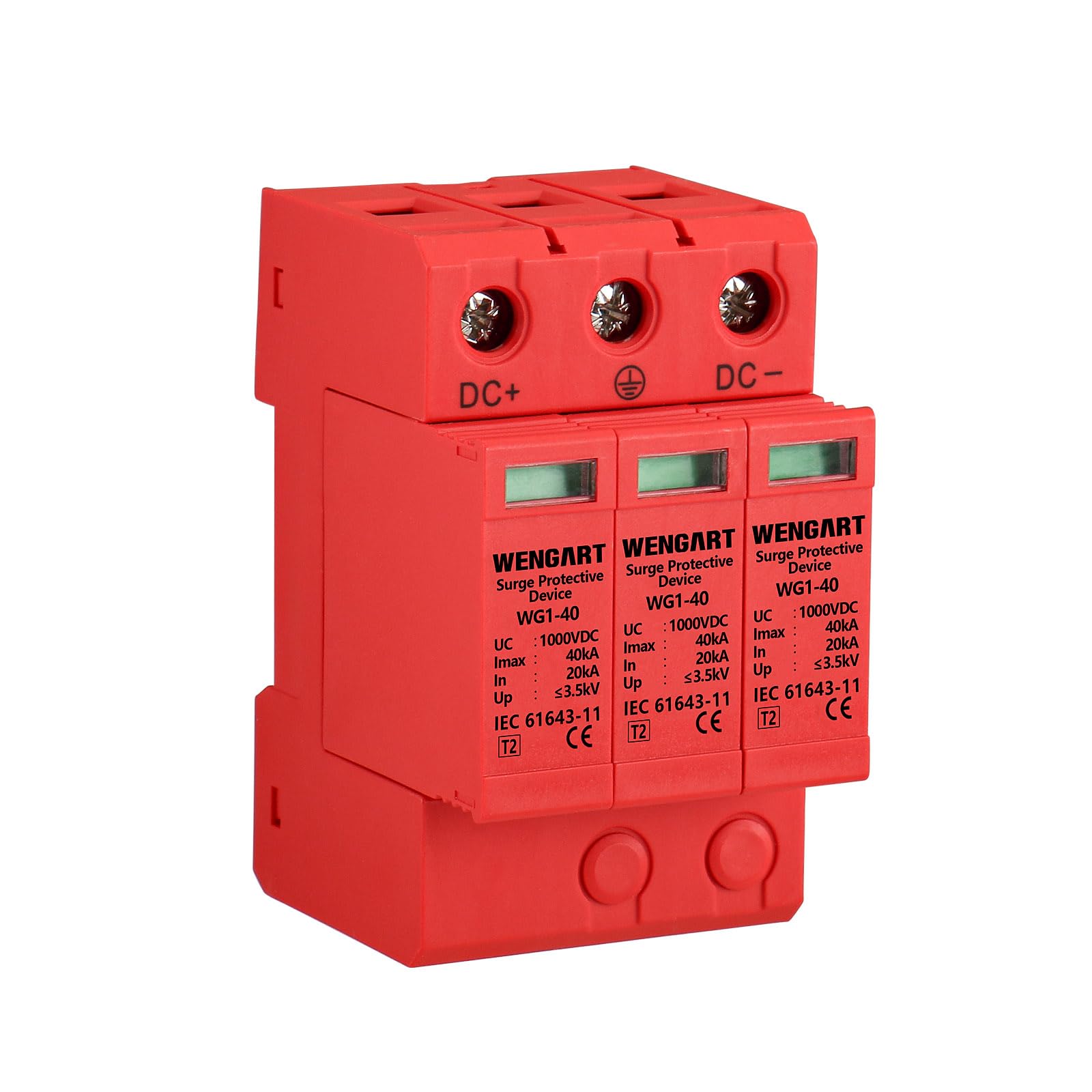

Description
Brand: WENGART
Color: 1000V_3P40KA
Characteristics:
- This surge protector is made of high-quality, flame-retardant materials and can withstand long-term use and provide reliable protection. Use this surge protector to protect your DC power system from lightning strikes and power surges.

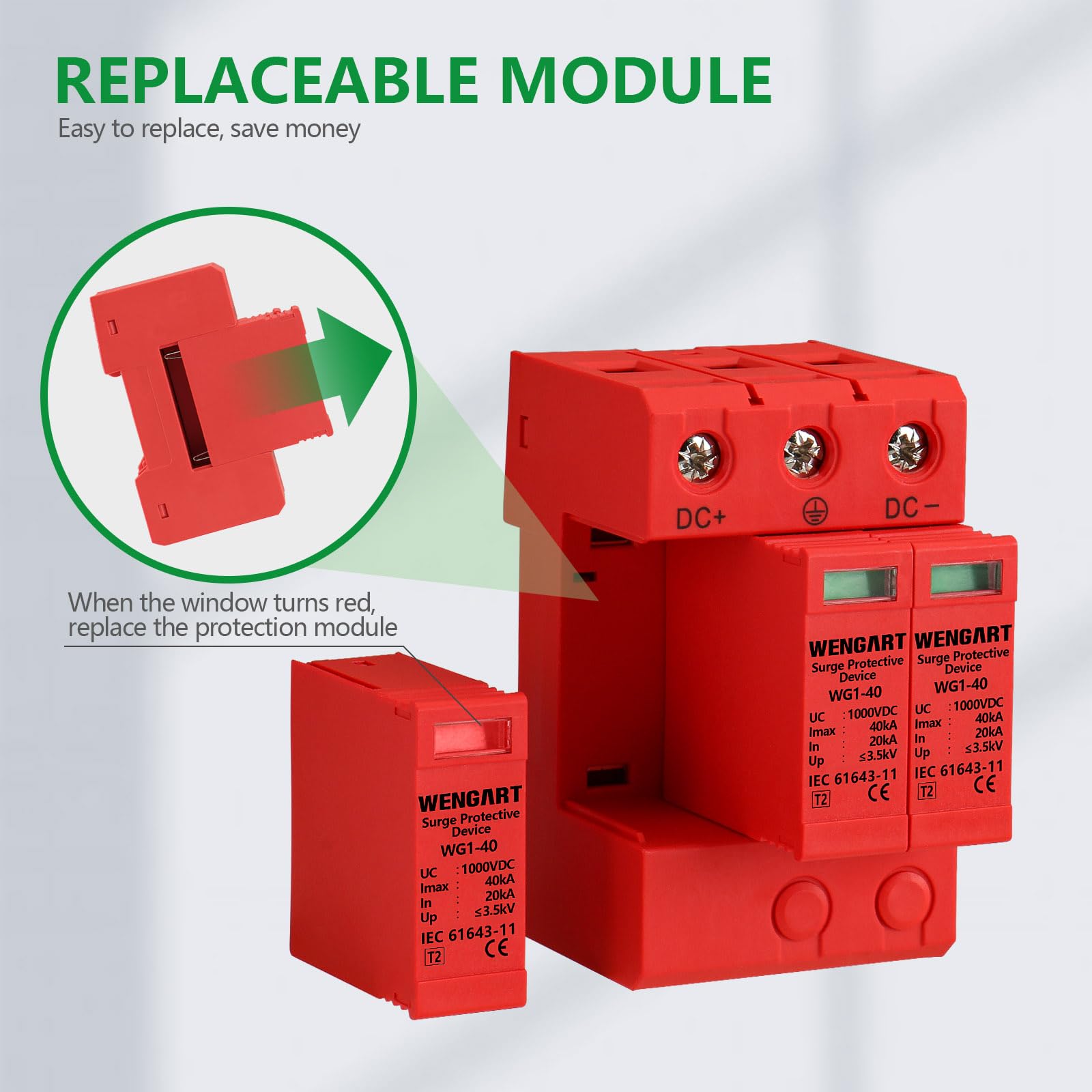

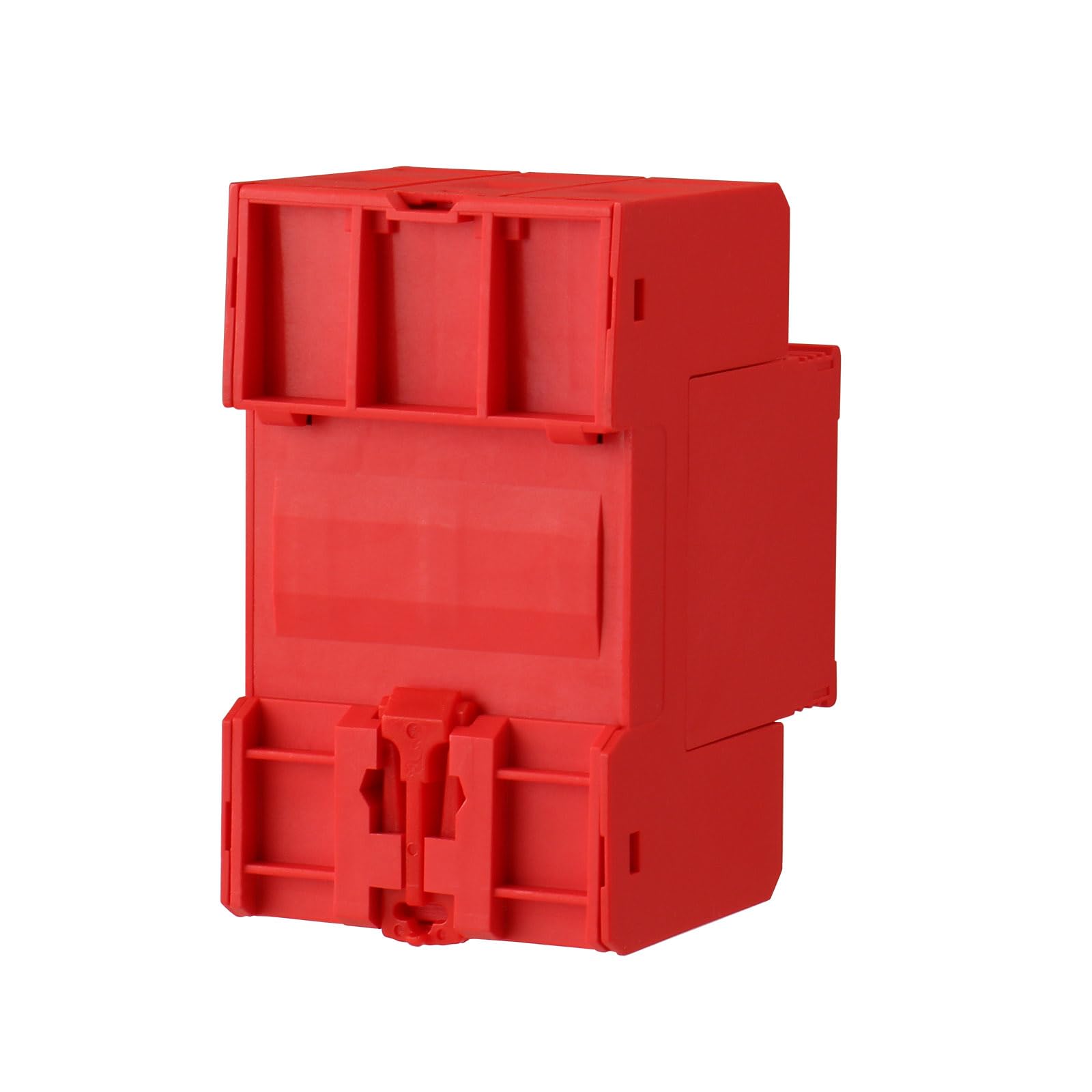

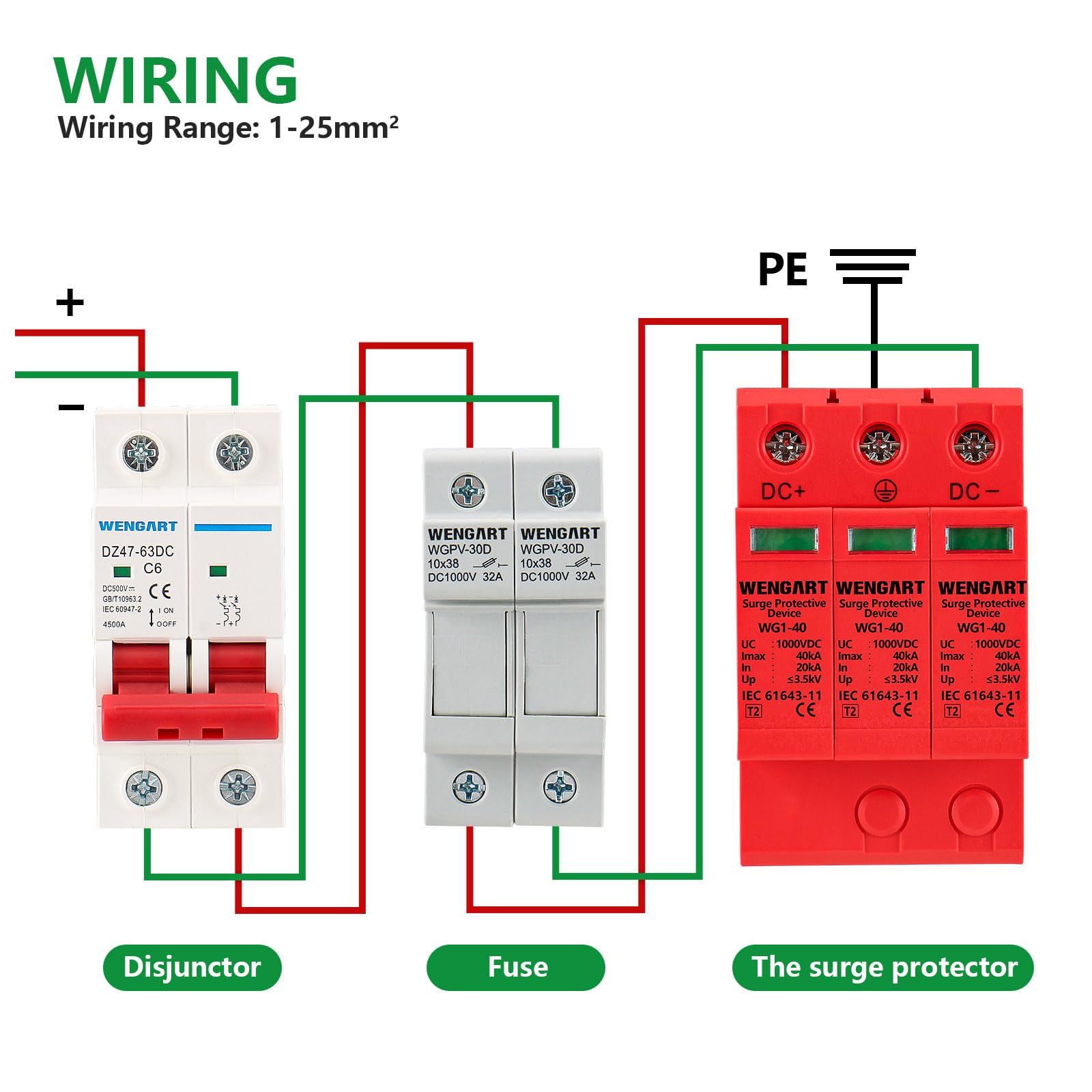

- Simple wiring that can be completed by anyone in minutes. Standard 35 mm rails and circuit breakers can be installed quickly and easily. Removable components facilitate installation and replacement on the job.
- Our internal surge protection low-voltage arrester is ideal for protecting your electrical system and electrical load devices from lightning strikes and transient overvoltages
- Our DC surge protectors are equipped with modern short circuit technology to ensure protection against overcurrent, overheating and temperature control, putting safety first
- Our DC surge protectors have a response time of less than 25 ns (T2) for fast and effective surge protection with low residual voltage and reliable performance
Binding: Electronic
Model number: 1000V_3P40KA
Article number: SPD 1000V_3P40KA
Details: A surge protective device is a comprehensive protective grounding system that integrates the functions of an arrester and a surge protection device into one device and is used to protect electrical equipment from lightning and various overvoltages. When the system is subjected to lightning surges, the arrester part works first to suppress the surge as much as possible and conduct it into the ground. If the arrester cannot completely absorb the surge, the part of the surge that exceeds the system's protection level is passed to the surge protection device. The surge protection device releases the surge to the ground after reducing the surge to a safe level through its own protective properties to protect the system from damage. A surge protective grounding system is an efficient and economical surge protection device, suitable for applications that require protection against both lightning and non-lightning surges, especially for the protection of new energy systems such as photovoltaics. Specification: Uc (V DC): 500/1000V In(8/20)us (kA): 10/20/40 Imax(8/20)us (kA): 20/40/60 Up (kV): 3.8 Pole: 2P/3P Fixed wiring capacity (mm2): 4~25 Flexible wiring capacity (mm2): 4~16 Stripping length (mm): 10 Protection class: IP40 Operating temperature: -40~+70°C

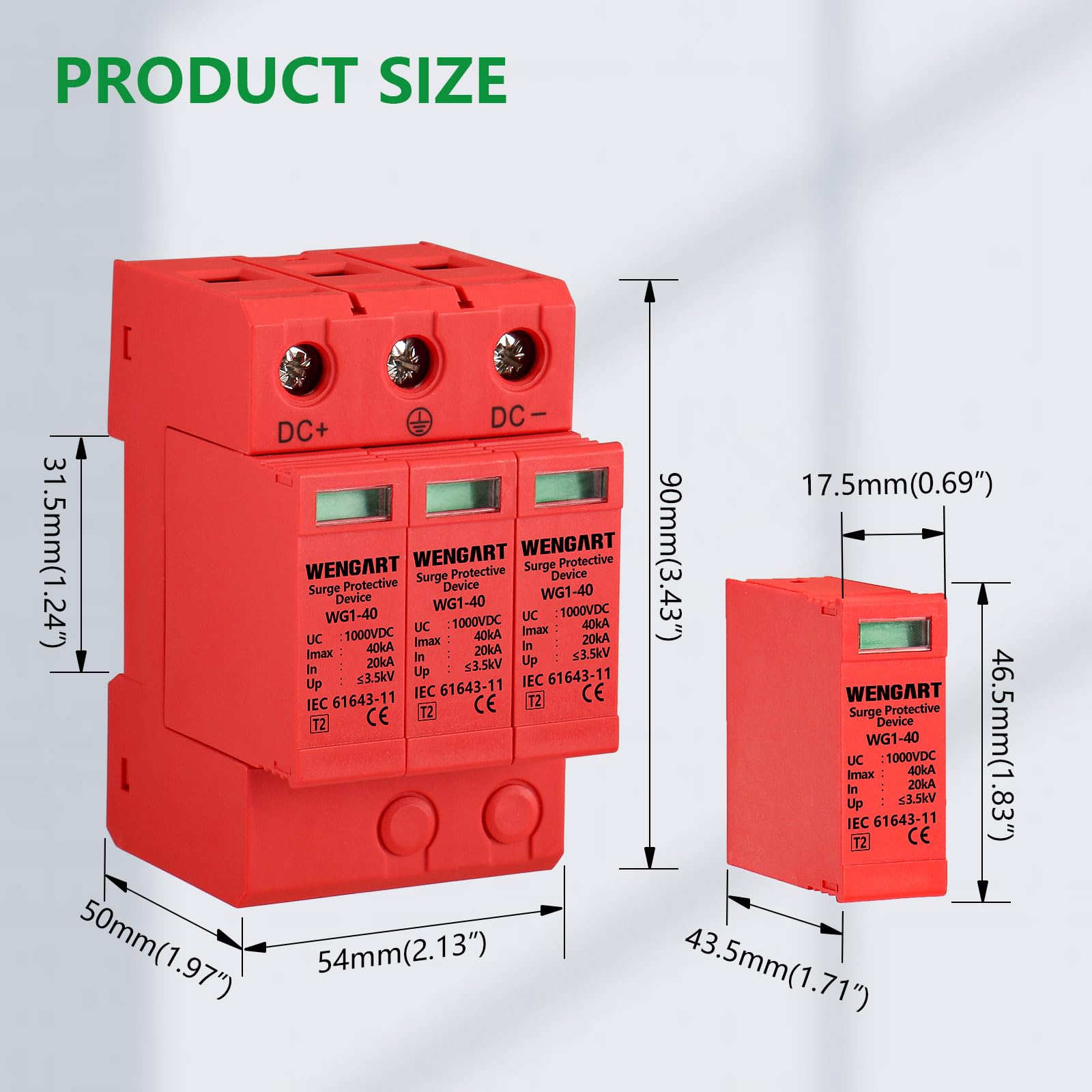

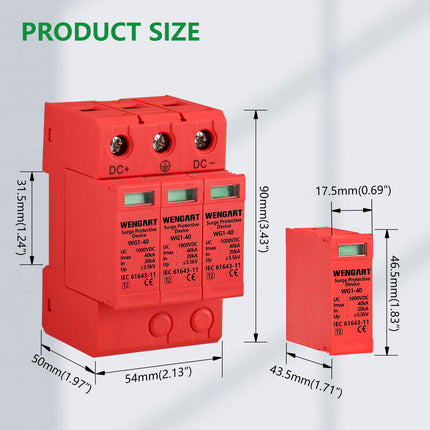

Package dimensions: 3.8 x 2.8 x 1.8 inches
