Description
Brand: WENGART
Characteristics:

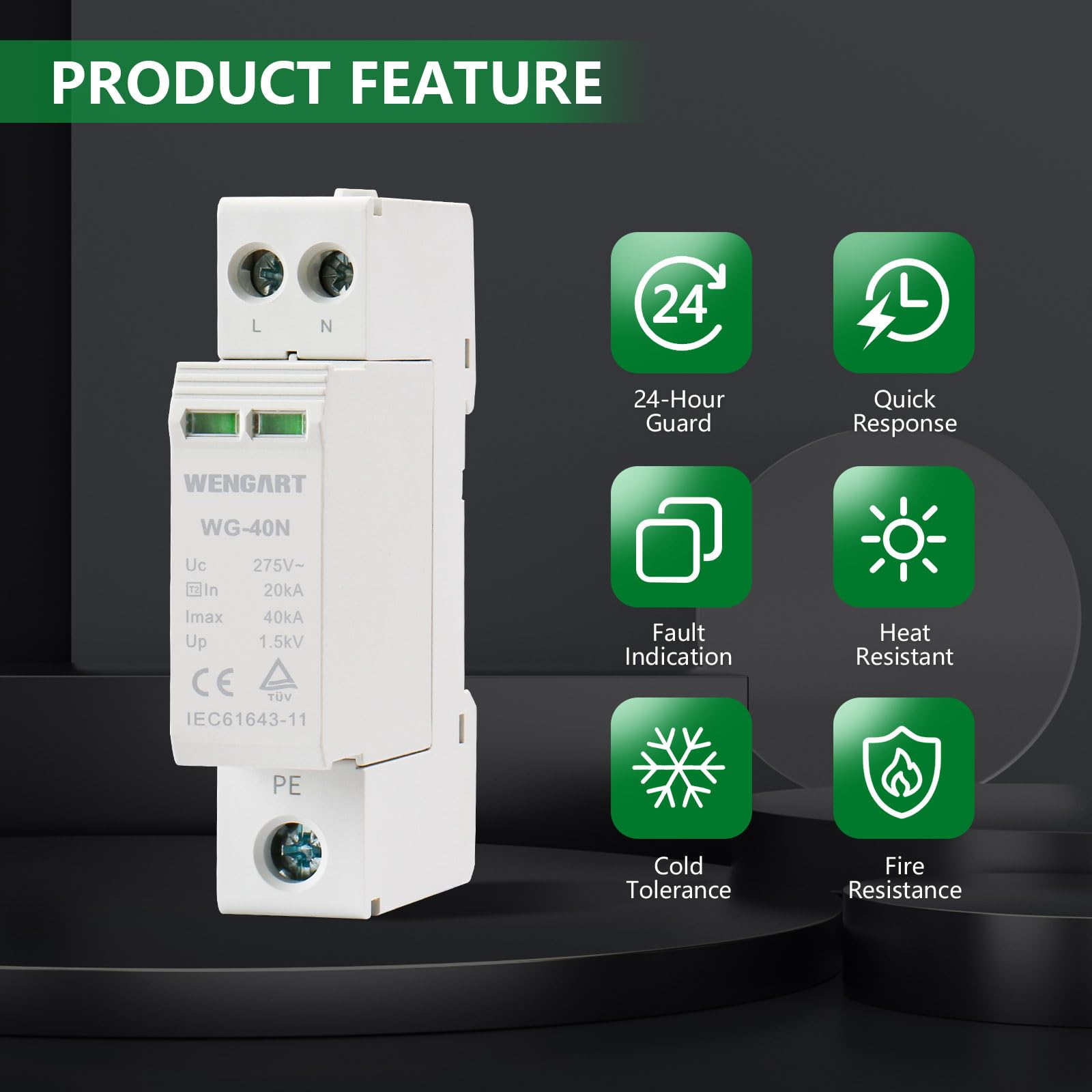

- This surge protector perfectly protects electrical devices from lightning strikes or sudden overvoltage and ensures high discharge current and low residual voltage to protect your household appliances and your safety.

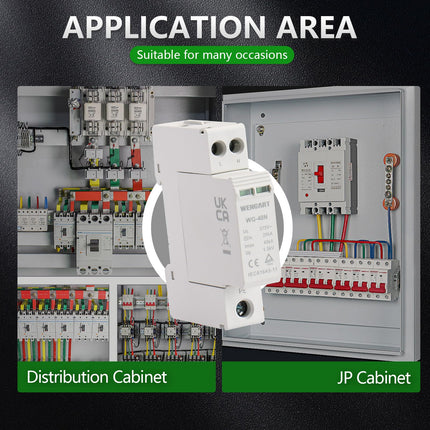

- This surge protector is primarily used as T2 lightning protection for various electronic devices in rent-only properties that are susceptible to lightning surges. It is ideal for use on the power distribution or alternating current (AC) side, or in frequently used household electrical installations. It is designed to protect electrical systems and household appliances from lightning strikes and transient surges.

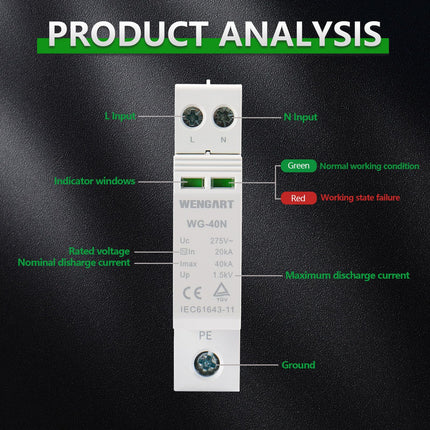

- This surge protector has a viewing window with red and green indicator lights so you can see when it is switched on and off at a glance

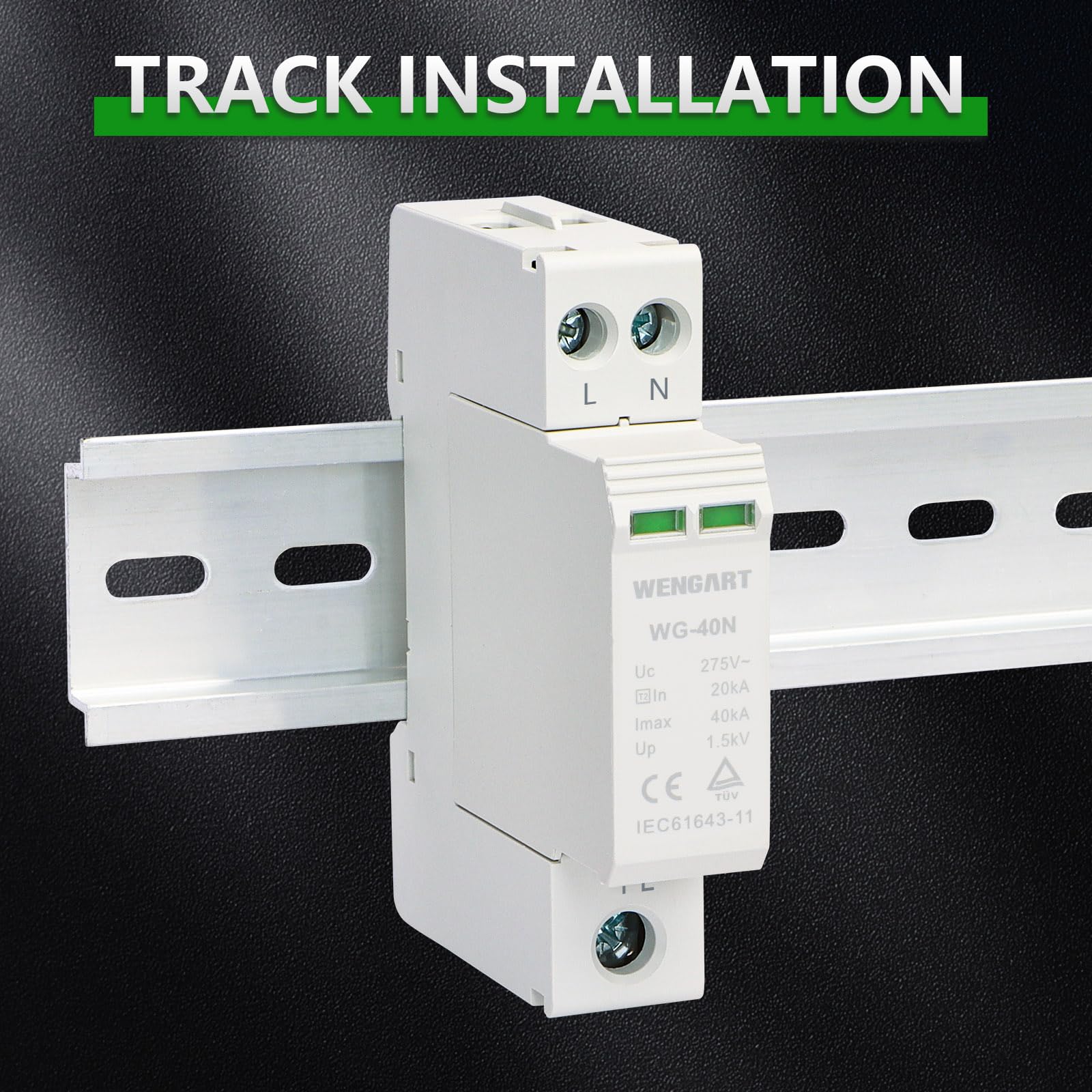

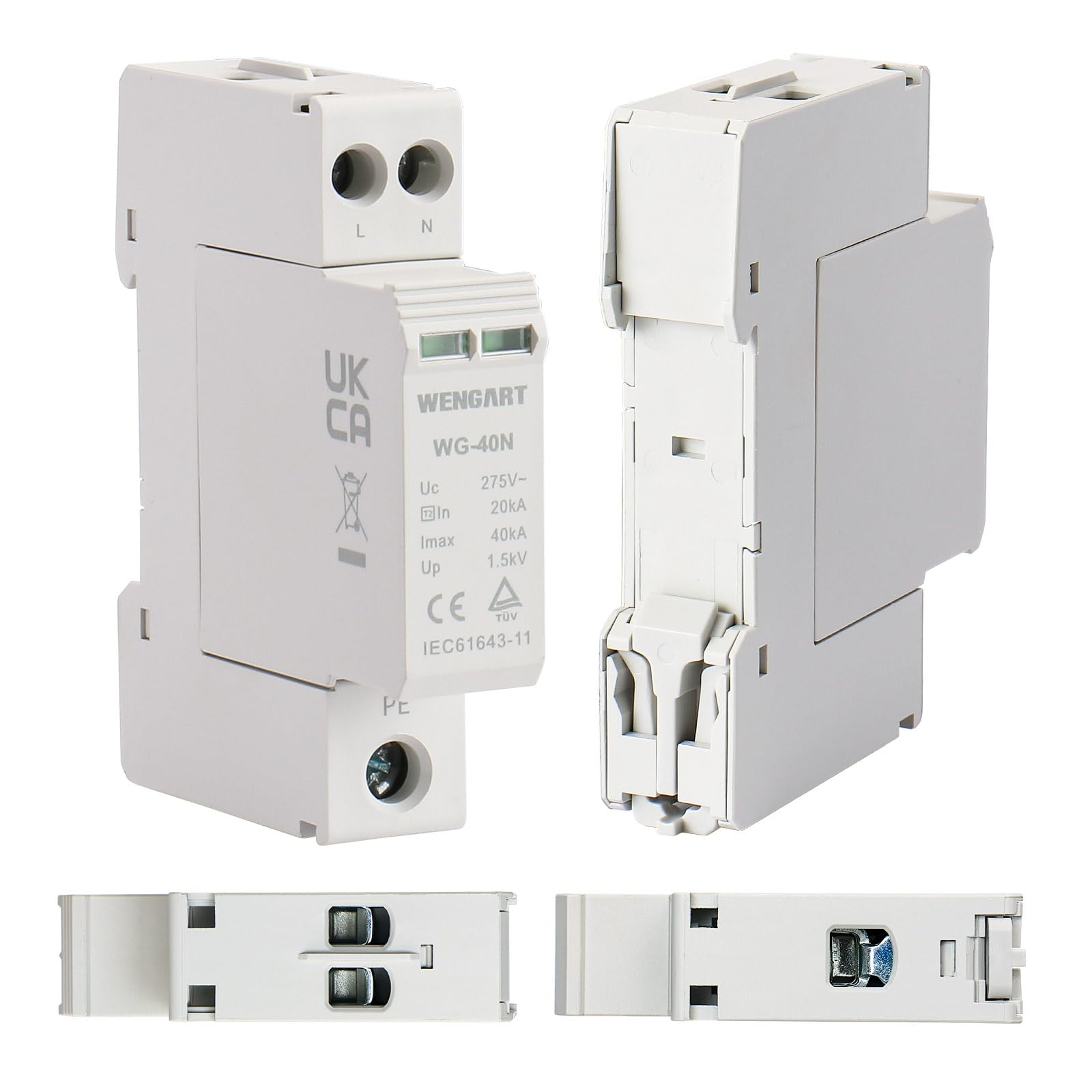

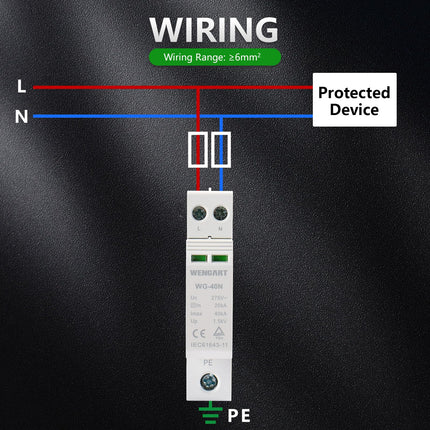

- This arrester is installed on a DIN rail, has removable components, is easy to plug and unplug, and can be used in conjunction with the circuit breaker in the distribution box
- The casing of this arrester is made of flame-retardant materials, and the interior is made of copper accessories and precision chips. It features good conductivity and high precision, which can minimize the risk of accidents.

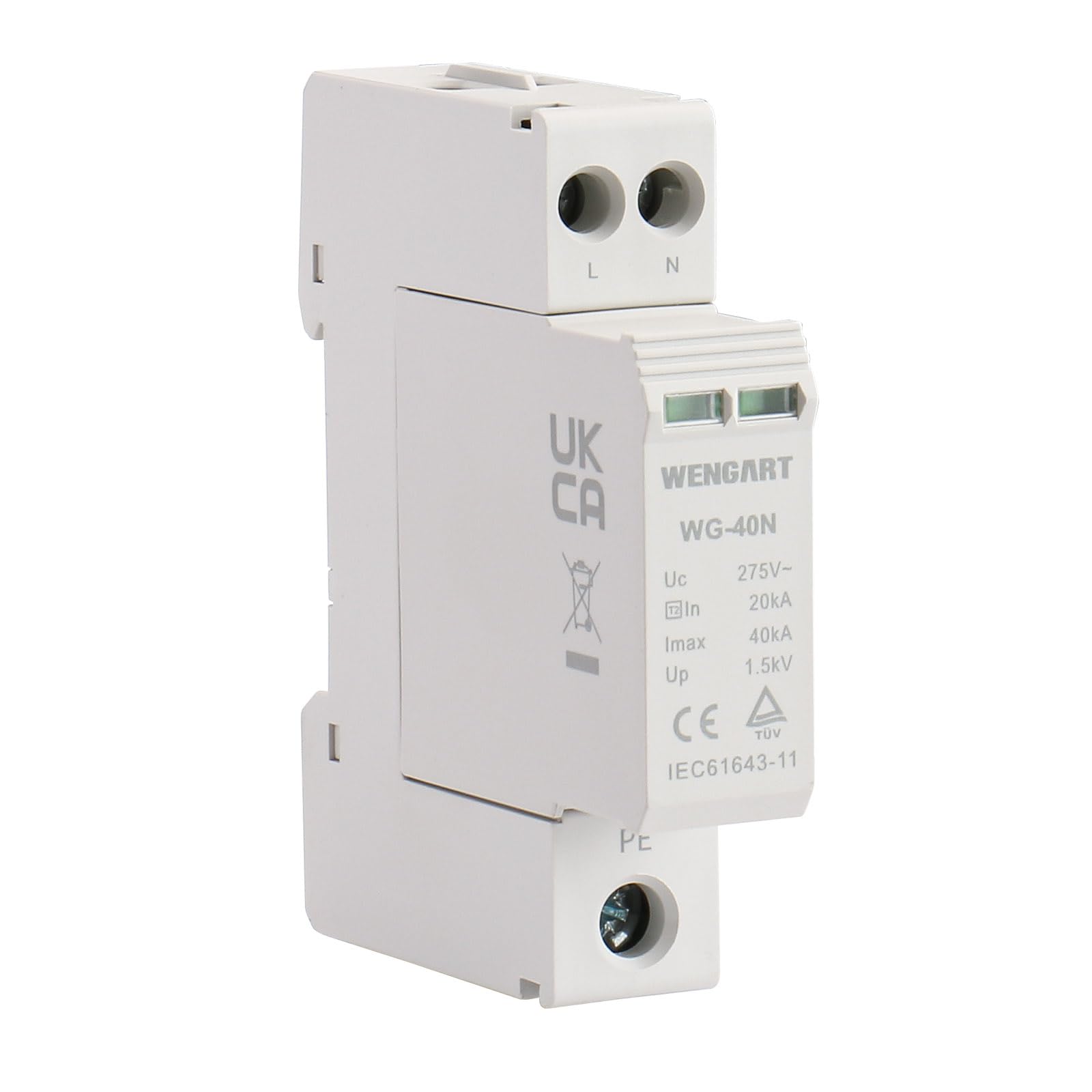

Model number: WG40N 2P
Item number: WG40N SPD
Details: A surge arrester is a comprehensive arrester that combines the functions of a surge arrester and a surge protector in one device, used to protect electrical equipment from lightning and various overvoltages. When the system is subjected to a lightning surge, the arrester part first works to suppress the surge as much as possible and discharge it to the ground; if the arrester cannot completely absorb the surge, a part of the surge exceeding the equipment protection level will be conducted to the surge protector. The surge protector uses its own protective properties to reduce the surge to a safe range and then discharges it to the ground to protect the system from damage. The surge arrester is an efficient and economical surge protection device. It is suitable for cases where both lightning and non-lightning surges need to be protected. It can effectively protect the charging of electrical systems and electrical equipment from lightning strikes and sudden overvoltages. Specification: Uc (V AC): 275V In(8/20)us (kA): 20 Imax(8/20)us (kA): 40 Up (kV): 1.5 Hard wiring capacity (mm²): 10-25 Flexible wiring capacity (mm²): 10-16 Stripping length (mm): 10 Protection class: IP20 Working temperature: -40~+70℃

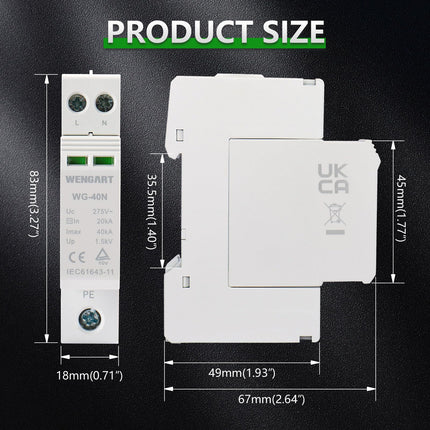

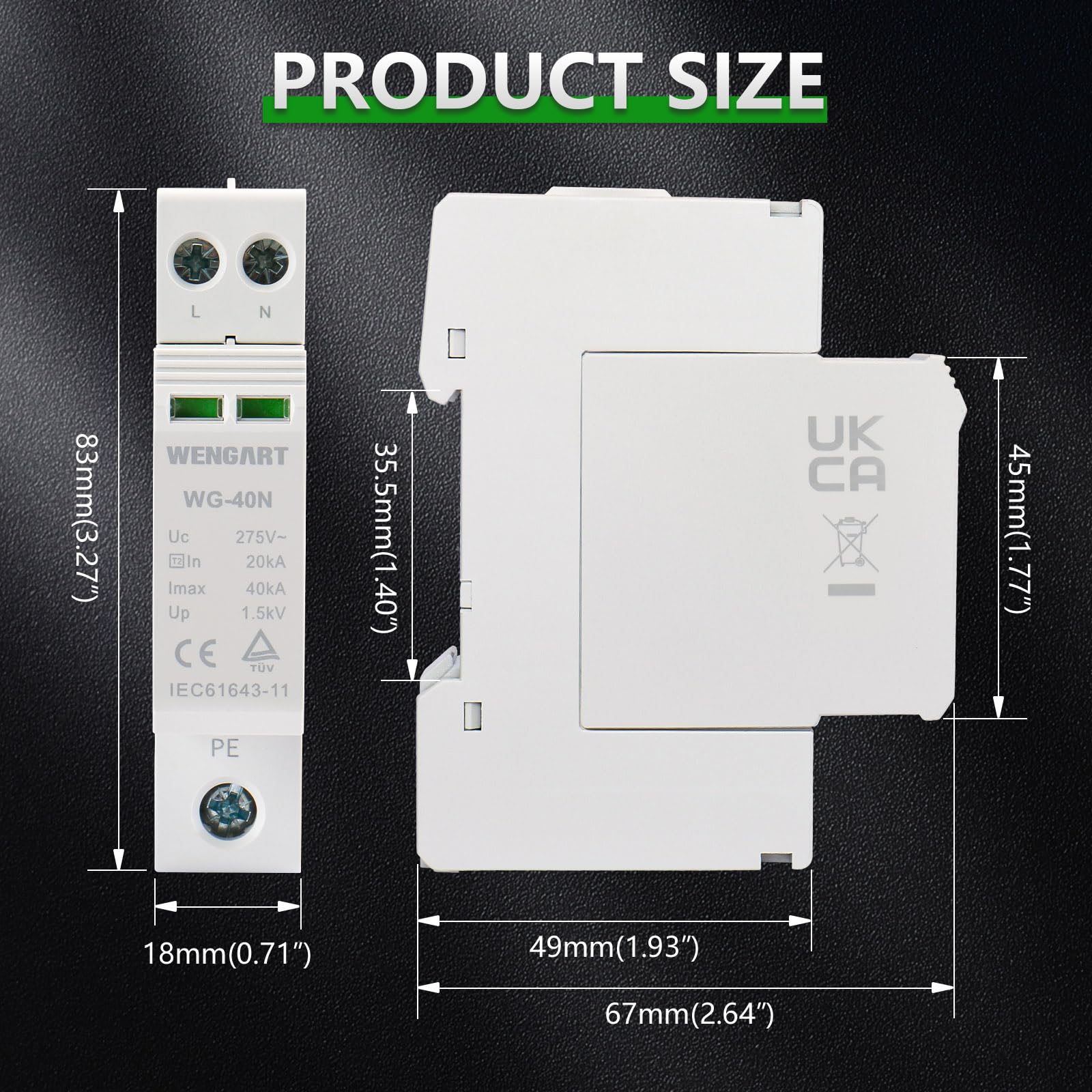

Package dimensions: 3.8 x 2.8 x 1.8 inches
