Description
Brand: Fanmusic
Color: Black
Characteristics:
- Dual ESS ES9038Q2M SABER HIFI DAC chips, MQA full decoding via USB
- Supports DSD512 Native and PCM 768 kHz, MQA full decoding via USB
- 2nd generation 16 core XMOS XU216, 4-pin XLR and 6.35 mm headphone output
- THD+N as low as 0.00010%, 1300mW X2 output power
- DAC + Preamplifier Application/Bluetooth Receiver/Tablet and Phone DAC Application
Binding: Electronic
Model number: EX5 MQA
Item number: EX5 MQA
Details: DSD64-DSD512 (native),
DSD64-DSD256(Dop)
Renderer, MQA Studio, MQA
OPT/Coax: 44.1kHz-192kHz/16bit-24bit, DSD64 (Dop).
BT IN: AAC/SBC/APTX/APTX LL/APTX HD/LDAC.

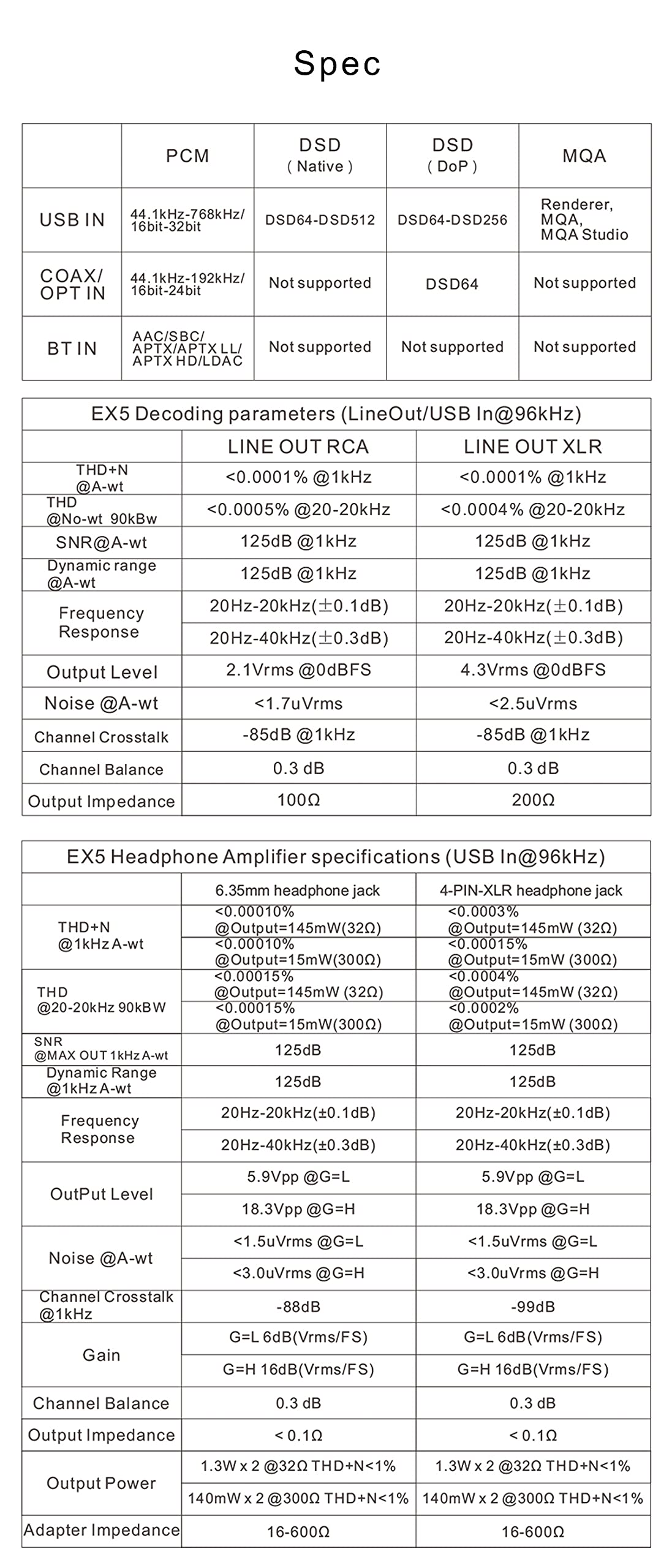

EX5 Line Out XLR:
THD+N @A-wt: <0.0001%@1kHz
THD+N @No-wt: <0.0004%@10-20kHz
SNR @A-wt: 125dB@ 1kHz
Frequency response: 20 Hz - 20 kHz (+ 0.1 dB)
Output level: 4.3 Vrms OdBFS
Noise @A-wt: <2.5uVrms
Channel crosstalk: -85 @ 1 kHz.
Channel equalization: 0.3 dB.
Output impedance: 200Ω
Device attributes:
Dimensions: 17.4 x 13.8 x 4.5 cm.
Weight: 750 g.
Power consumption: 100-240 V AC, 50 Hz/60 Hz.

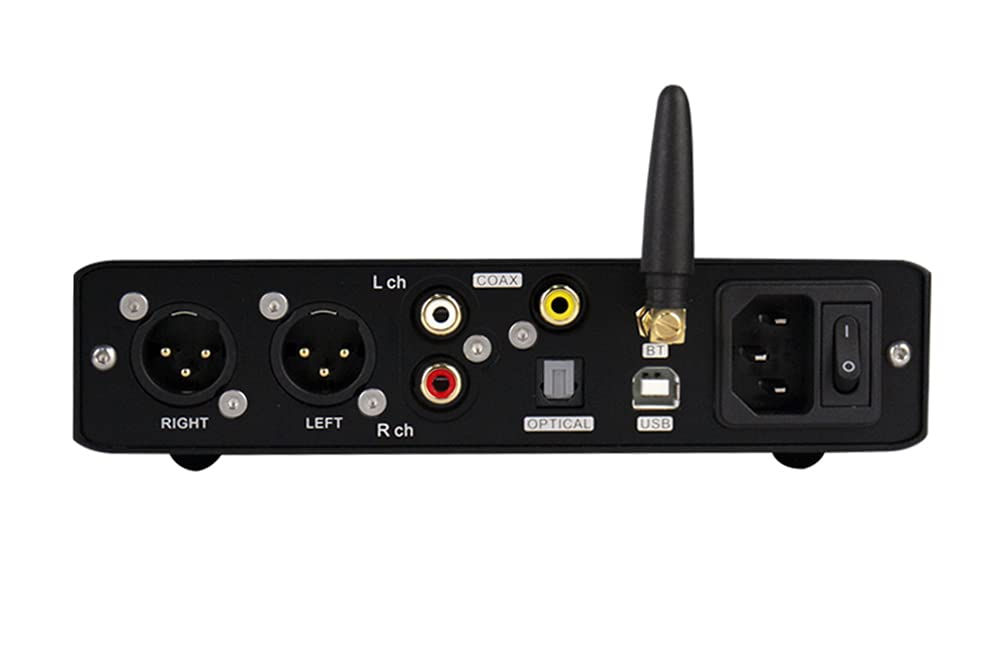

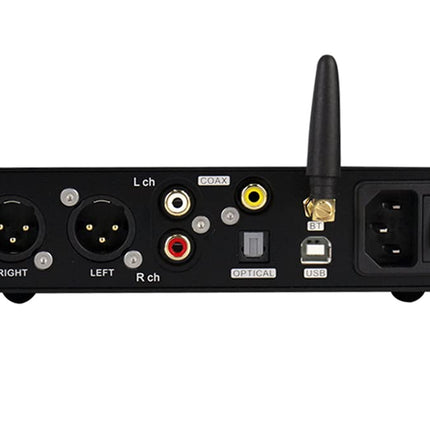

Signal input: USB/OPT/COAX/BT
Line-out output: RCA/XLR
Headphone amplifier output: 6.35 mm/4-pin XLR
Package list:
EX5 x 1.
1 x Bluetooth antenna.
1 x remote control.
1 x 6.35 mm to 3.5 mm adapter.
1 x AC cable.
1 x USB cable.
1 x instruction manual (possibly not in German).
Package dimensions: 11.1 x 7.9 x 2.9 inches
