Description
Brand: Walfront
Characteristics:

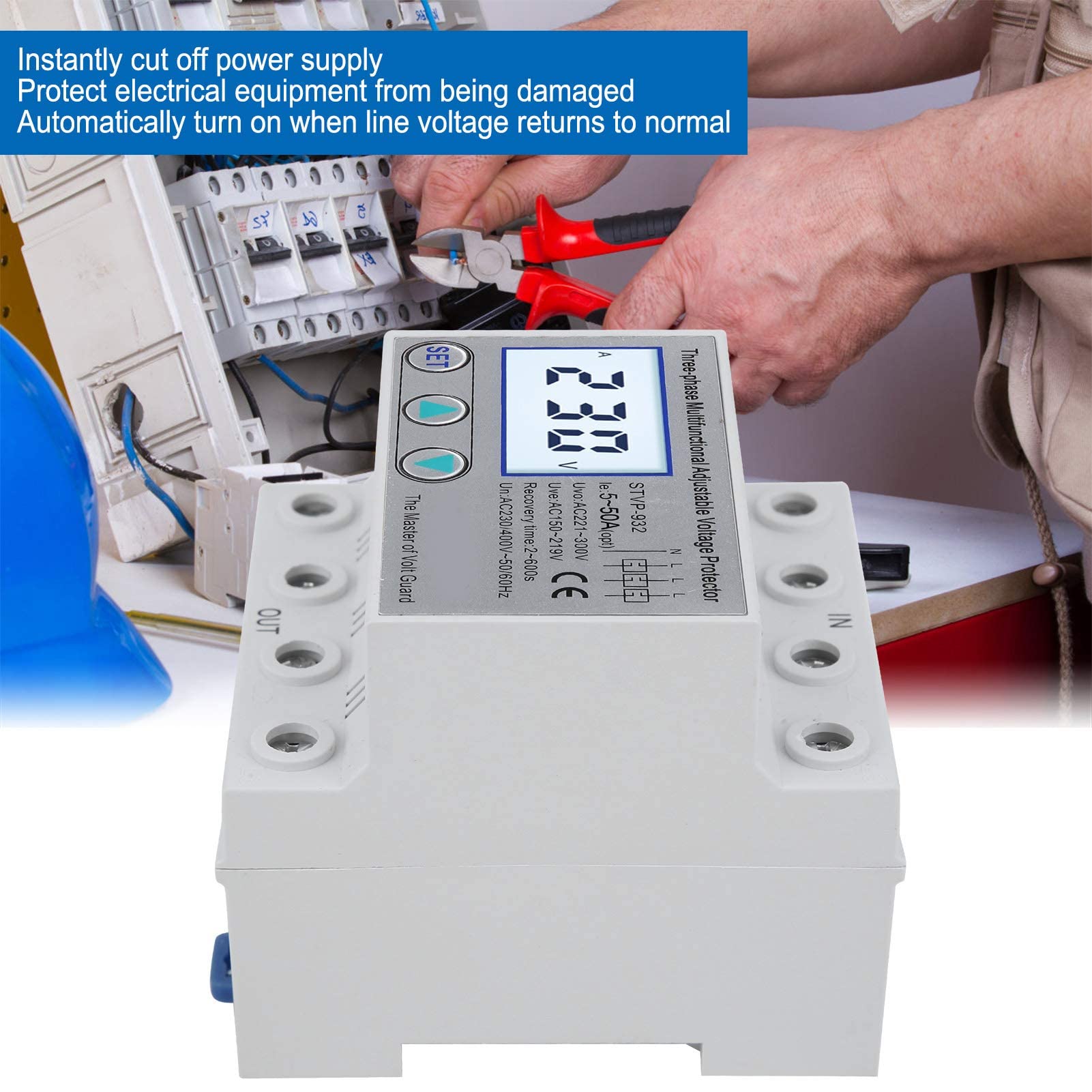

- ✅【GOOD FUNCTION】: When the line experiences an overvoltage, undervoltage, or overcurrent condition, this product can immediately cut off the power supply to protect electrical devices from damage. When the line voltage returns to normal, the protector can automatically restart the power supply.
- ✅ 【WORKING METHODS】: This protector integrates overvoltage protection, undervoltage protection, overcurrent protection, three-phase current (voltage) unbalance protection, phase sequence protection (phase displacement protection) and phase interruption protection in one
- ✅【STABLE PERFORMANCE】: The adjustable voltage protection offers complete functions, stable performance and easy operation
- ✅【RELIABLE】: The product has the function of error query, voltmeter and ammeter as well as the function of restoring the factory settings
- ✅【FUNCTION】: The STVP series automatic reset overvoltage and undervoltage multi-function protector is a monitoring and auxiliary protection device suitable for a three-phase four-wire power supply system or electrical equipment
Binding: Luggage
Article number: Walfrontyfze56xc01-11
Details: Specification:

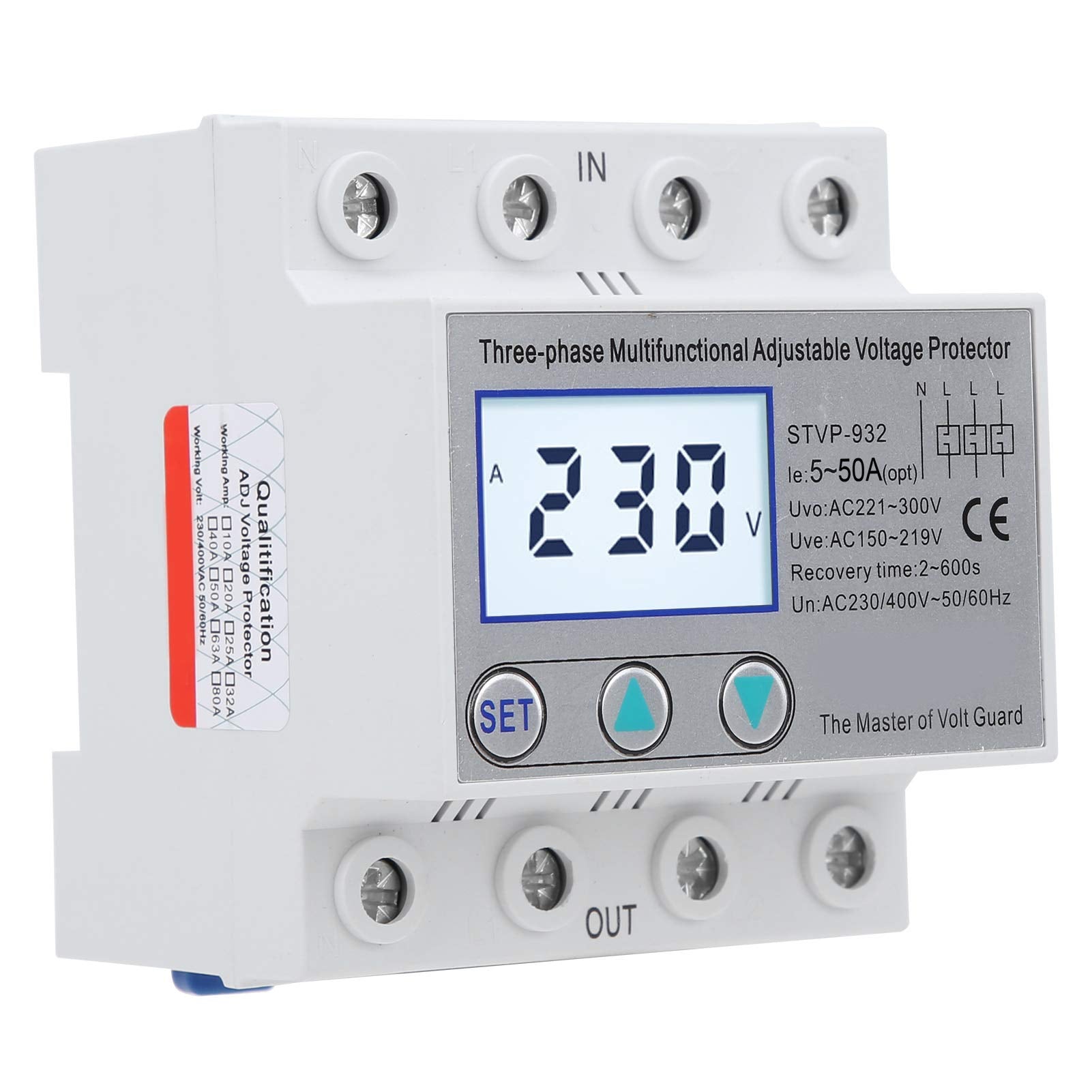

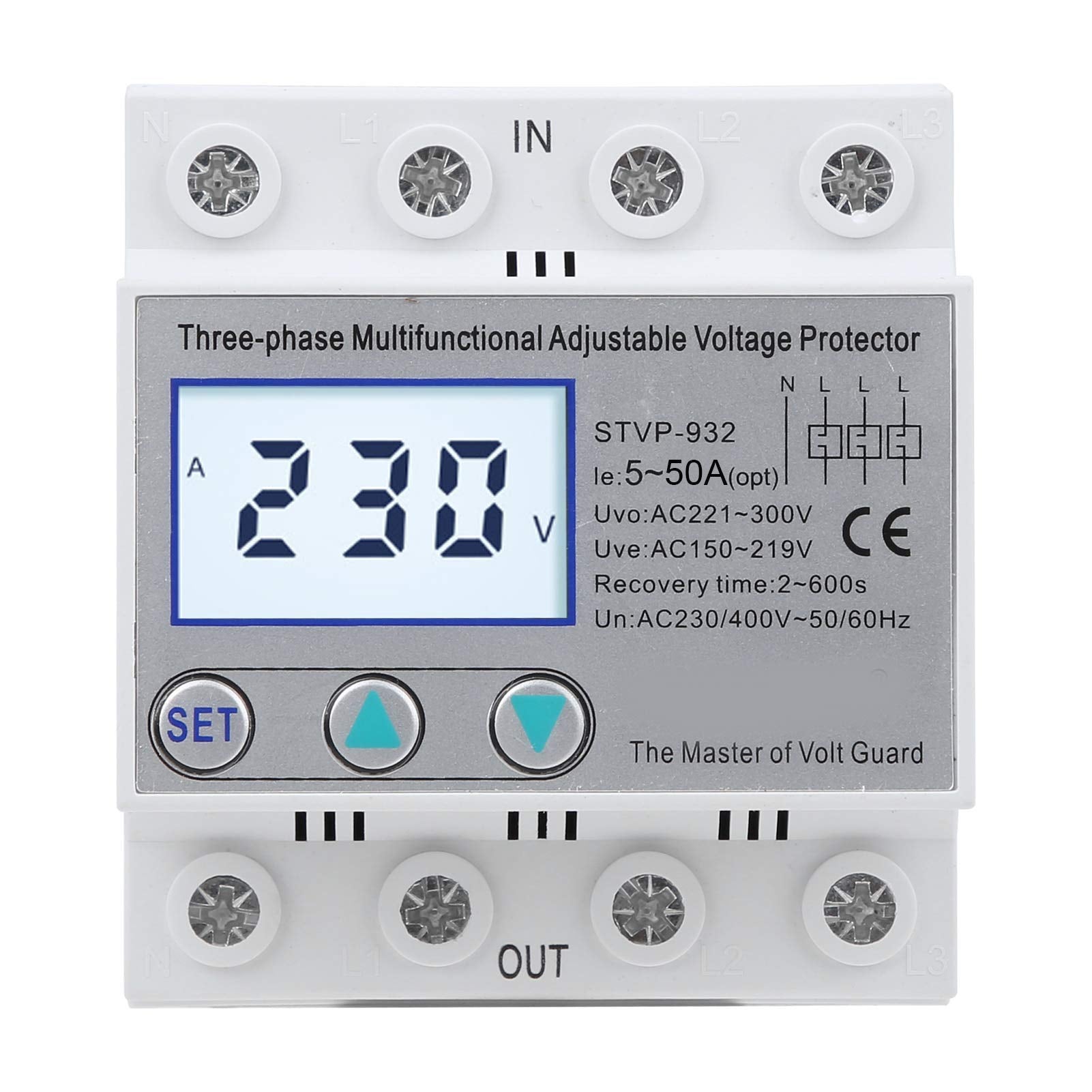

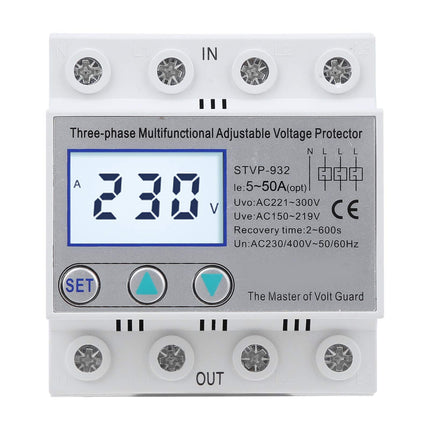

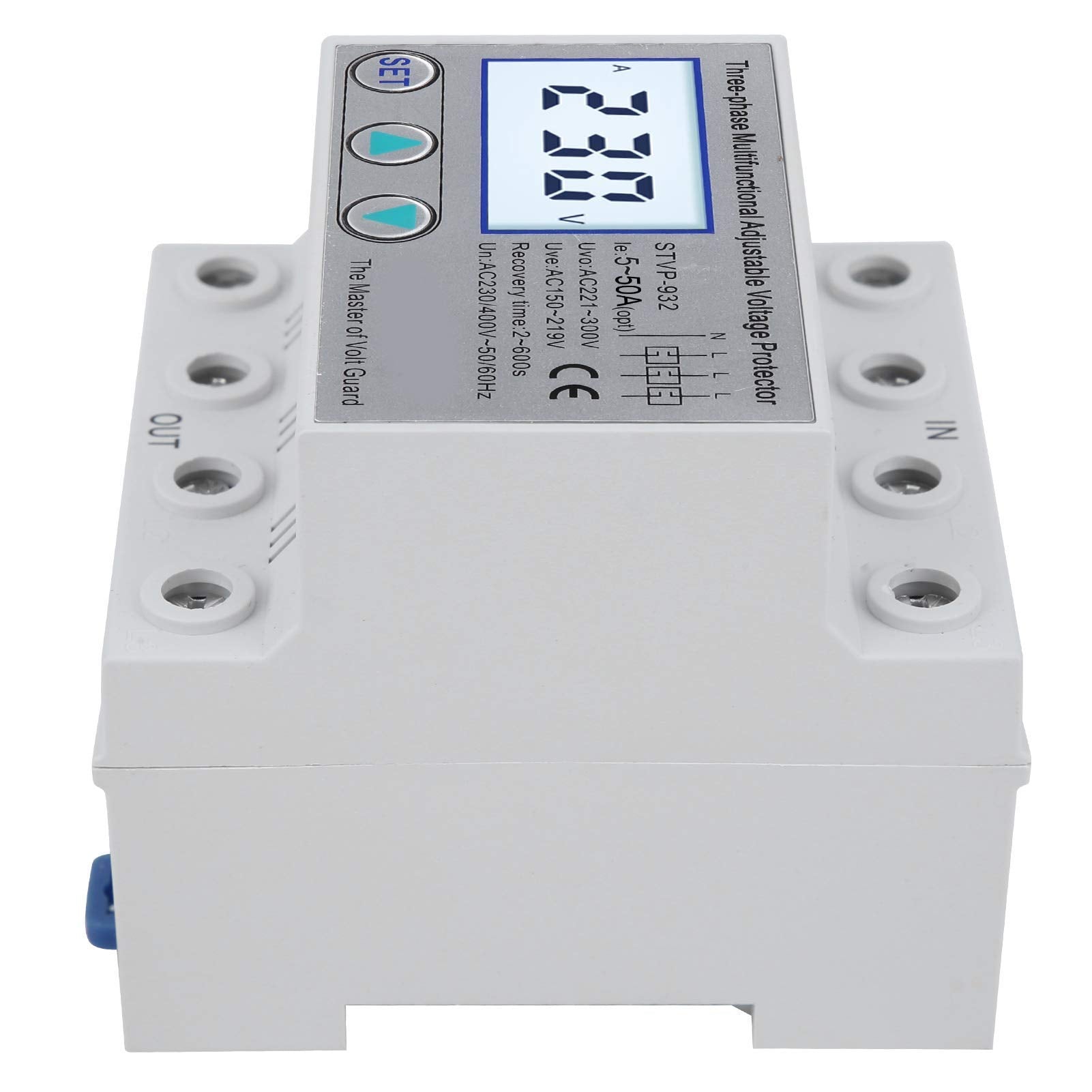

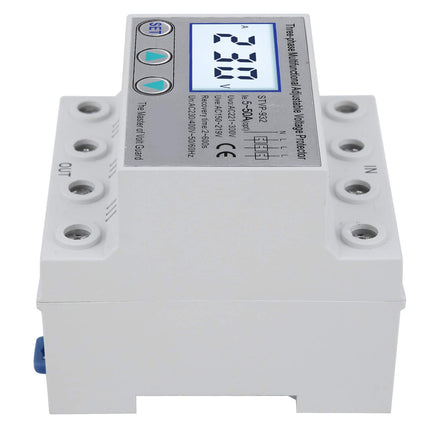

Item type: Adjustable voltage protector
Material: plastic
Model: STVP-932

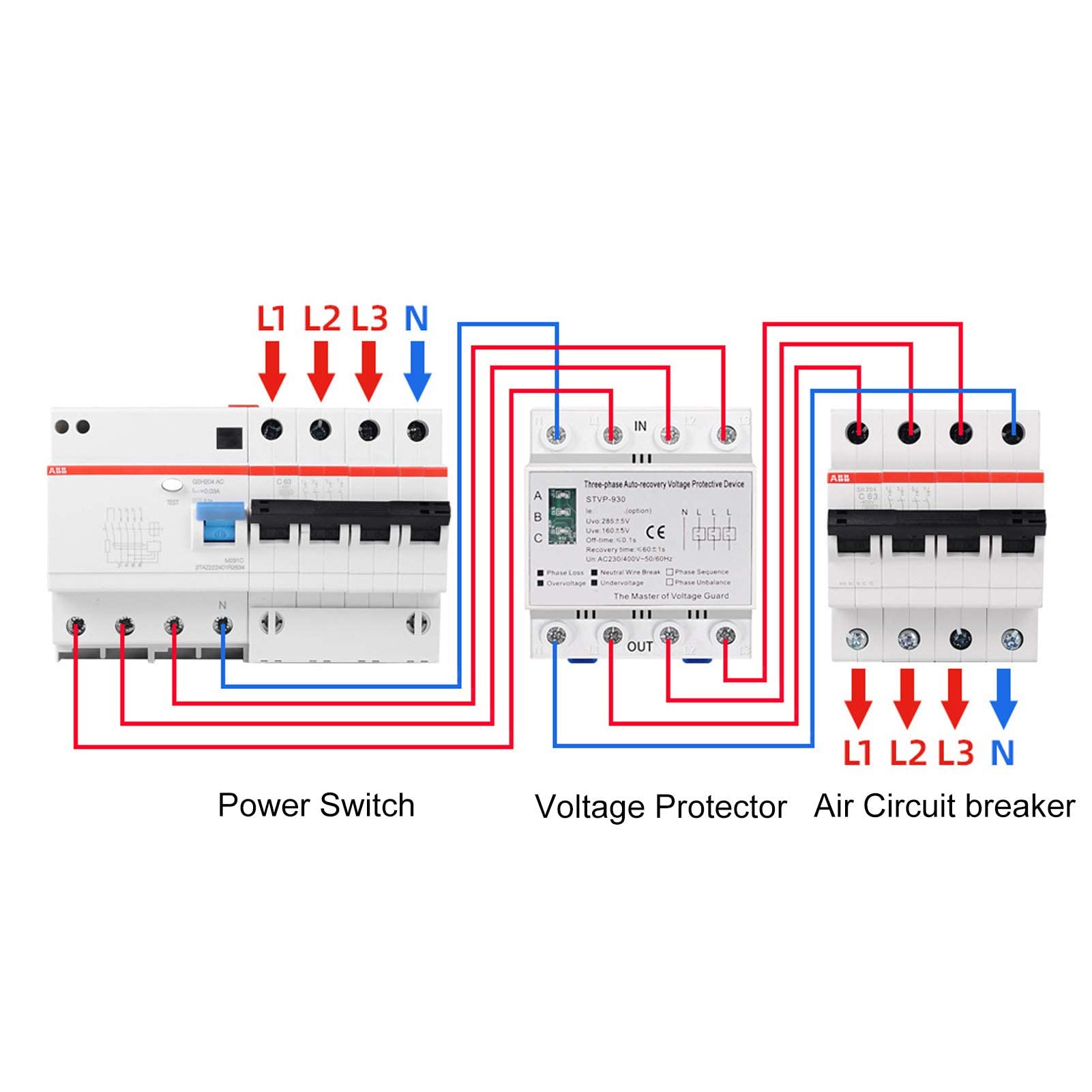

Three-phase four-wire with rated voltage: 230 V/400 VAC, 50/60 Hz
Rated current: 50A, 63A, 80A (optional)
Overvoltage protection range: 221V-300V-OFF (default value 280V)
Overvoltage recovery range: 220 V - 299 V (default 250 V)
The action time for the surge protection is adjustable: 0.1 seconds to 10 seconds (default value is 0.2 seconds)
Undervoltage protection value range: 219V-150V-OFF (default value 160V)
Undervoltage recovery range: 220 V - 151 V (default 180 V)
The action time for the voltage protection is adjustable: 0.1 seconds to 10 seconds (default value 0.2 seconds)
Value range for three-phase voltage unbalance protection range: 10% -50% -OFF
Phase voltage unbalance protection measure: 0.1 seconds to 10 seconds (default value 1.0 seconds)
Power-on delay time: 2-255 seconds (default is 2 seconds)
Delay time for error recovery: 2-512 seconds (default is 60 seconds)
Display mode: LCD
Error display: Segment character
Sampling method: AC sensing of the partial pressure between phase line and neutral line resistance
Earthing system: TT, TN-S, TN-CS

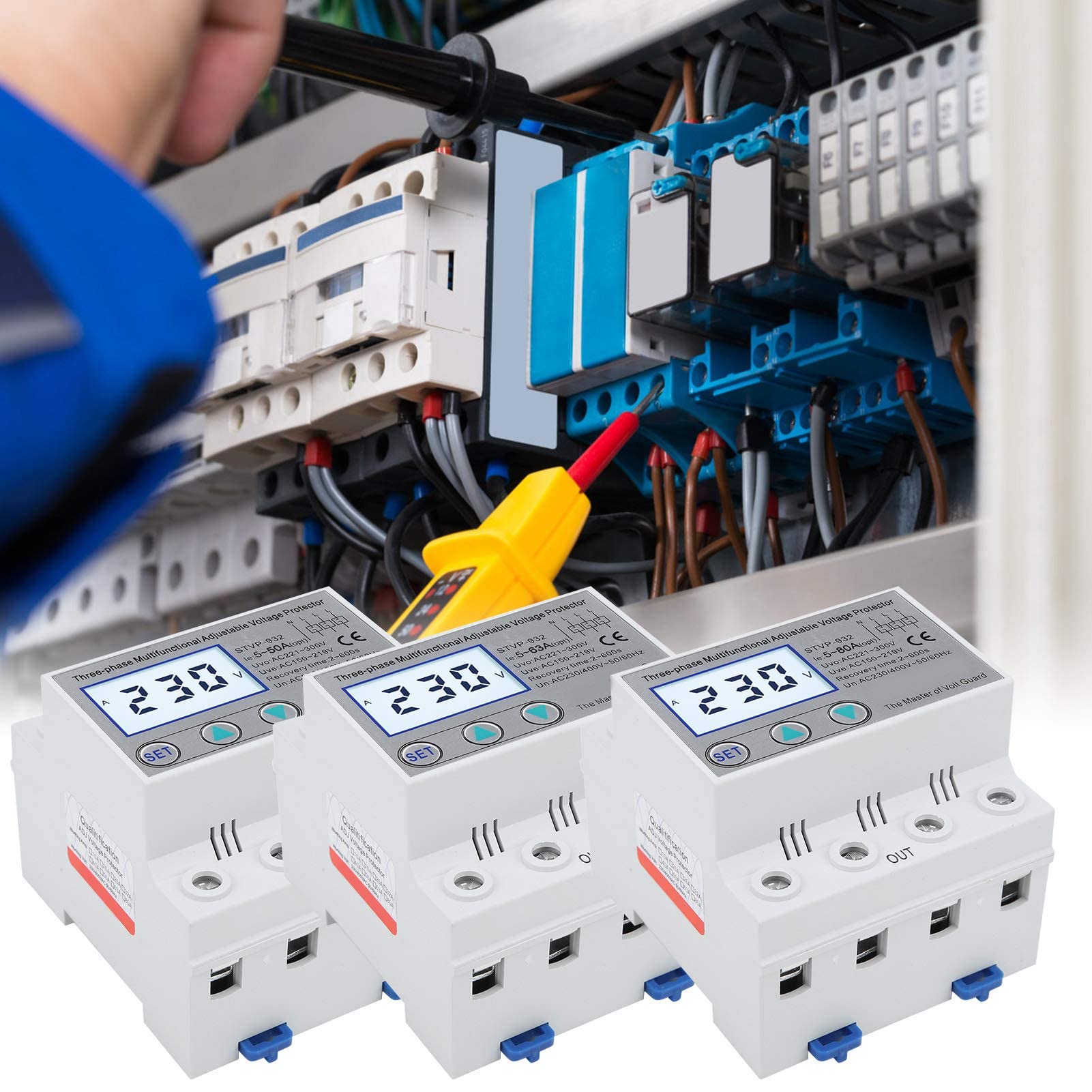

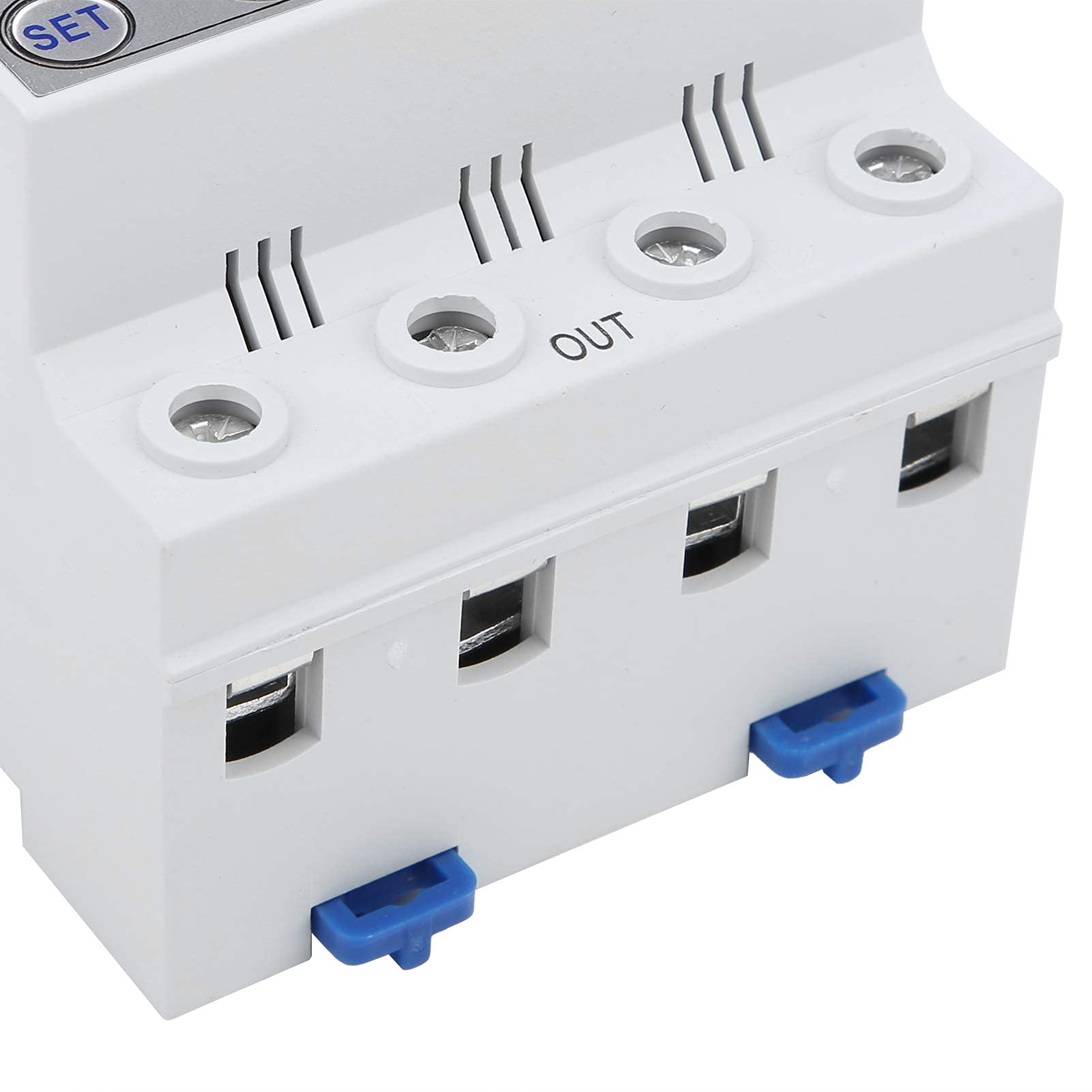

Installation method: Rail installation
Electrical insulation strength:> 2000 VAC, impulse 2.5 kV 1.2/50 μS
Working environment: Temperature -20 ℃ ~ 50 ℃, Humidity ＜ 85%, Altitude: Not more than 2000 meters
Size: Approx. 72 x 80 mm/2.8 x 3.1 inch, 65 mm/2.6 inch, 43 mm/1.7 inch, 45 mm/1.8 inch, 35 mm/1.4 inch
Package list:
1 x Adjustable voltage protection
1 x User Manual
EAN: 9497372238130
Package dimensions: 3.6 x 3.0 x 3.0 inches
