Description
Brand: MOCNT
Color: Black
Characteristics:
- 【High-quality material】Made of high-quality metal and ABS plastic, sturdy, quake-proof, waterproof and dustproof, working temperature: -30°C to +70°C, used in all seasons. Precise detection and buzzer alarm, make your parking easier and safer.
- 【Convenient and Simple】When the car starts, the radar system automatically starts detecting. A buzzer sounds when an obstacle is approached, and more frequently as the distance increases. At the same time, the display also shows the distance.
- 【Parking Radar Performance】Dual CPU for fast response. Sensor self-monitoring to avoid collisions due to sensor damage. Working voltage: 12VDC, working current: 20-180mA, detection distance: 30cm-250cm, alarm volume: ≥80dB.

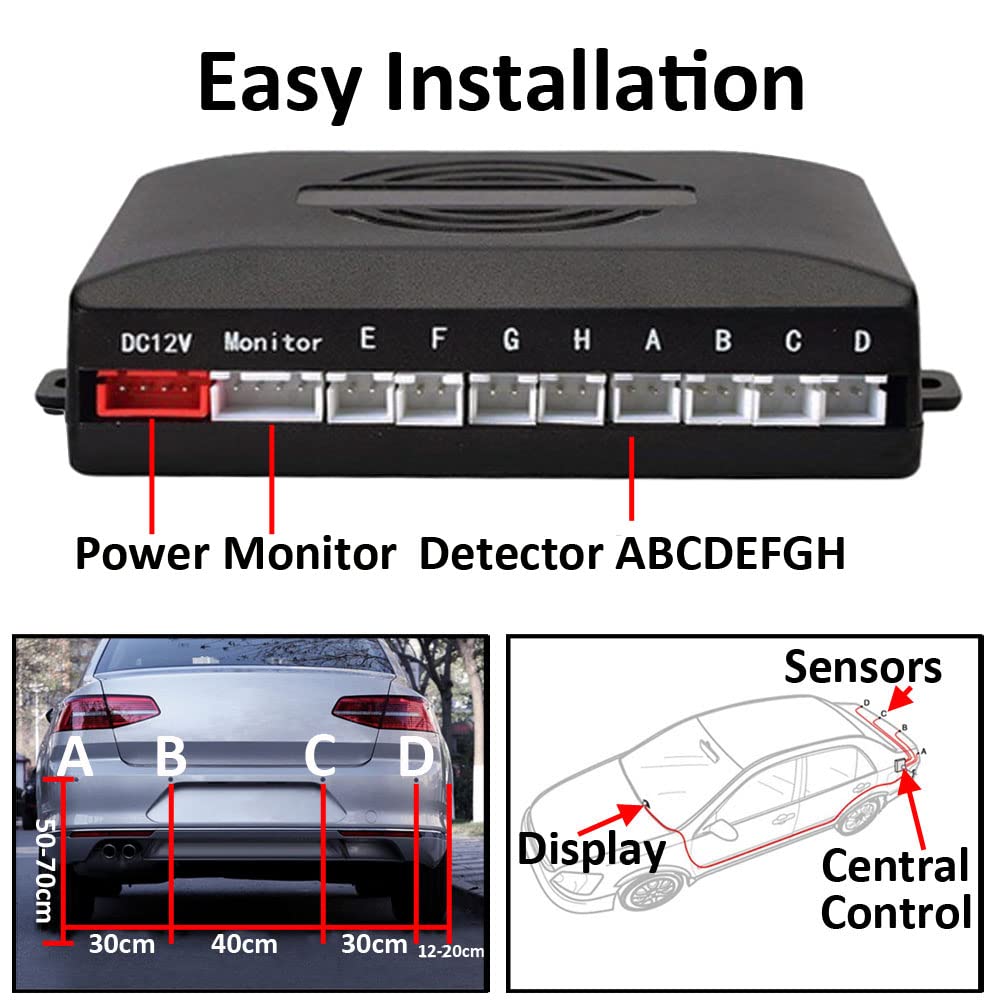

- 【Easy Installation】Connect the red power wire to the reversing light line, the blue power wire to the ACC, and the black power wire to the ground. Includes 8 parking sensors with a 2.5-meter line, 1 digital display with a 5-meter line, 1 22mm hole saw for easy drilling, and 1 control box.

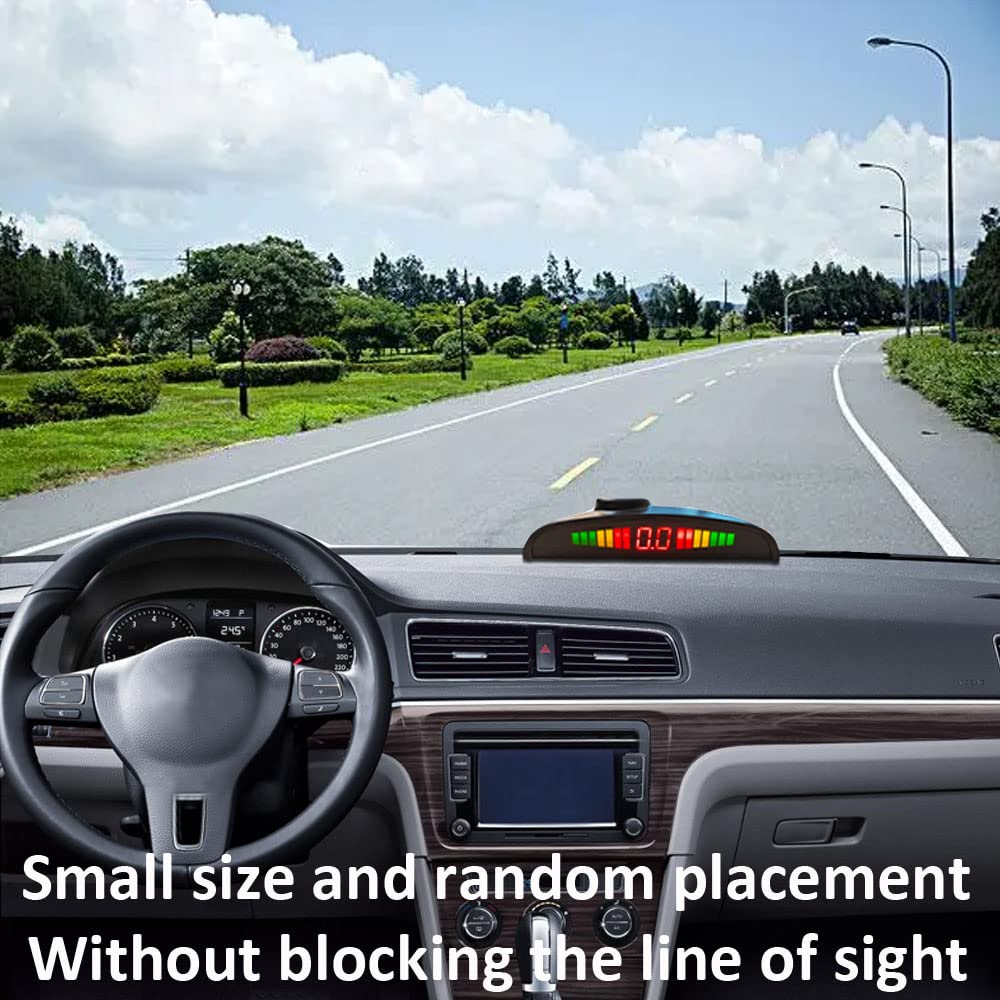

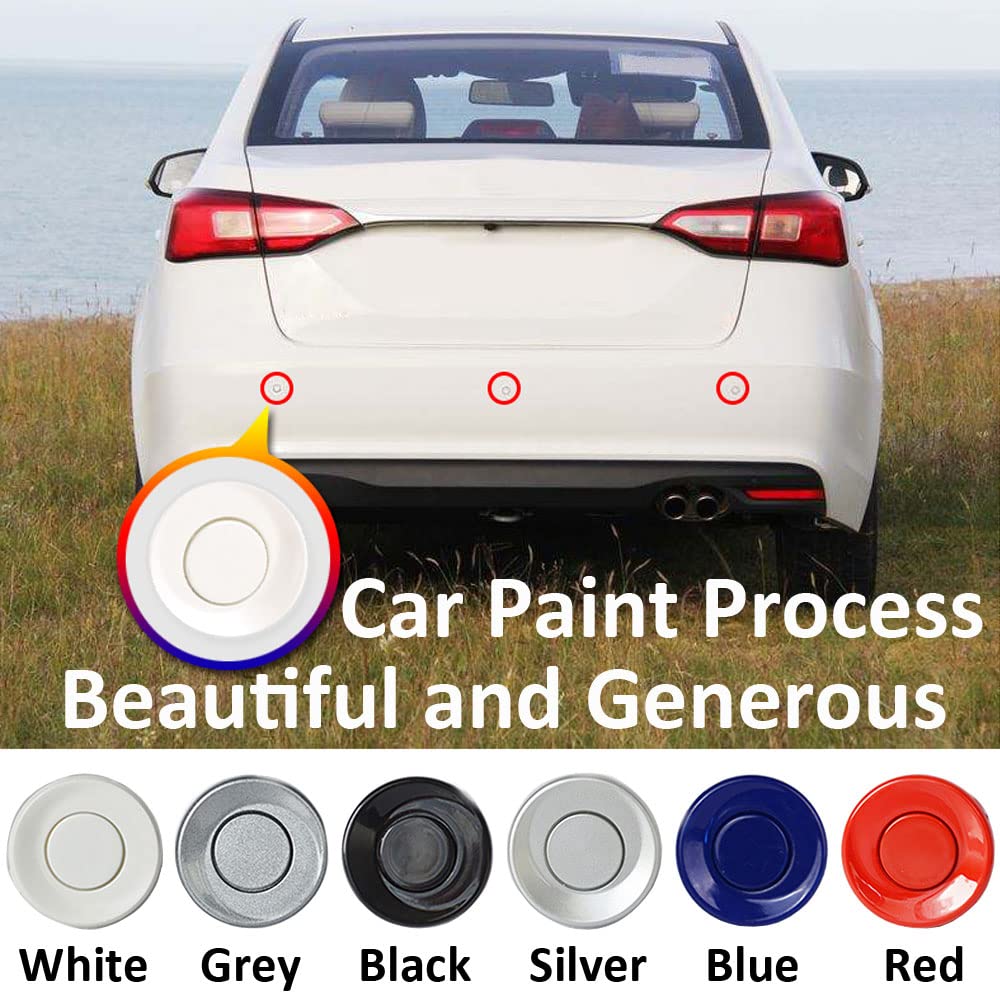

- 【Wide Application】Screen size: 9.9 x 2 x 2.6 cm. Small and beautiful, without obstructing the dashboard view. The probe adopts an automotive paint process, which is not easy to fade and more in line with your vehicle. Suitable for cars, trucks, vans, forklifts, and so on.
Binding: Automotive
Model number: CXDC03A
Item number: CXDC03A
Details: Features:
1. The radar system switches on automatically when the car engine starts.

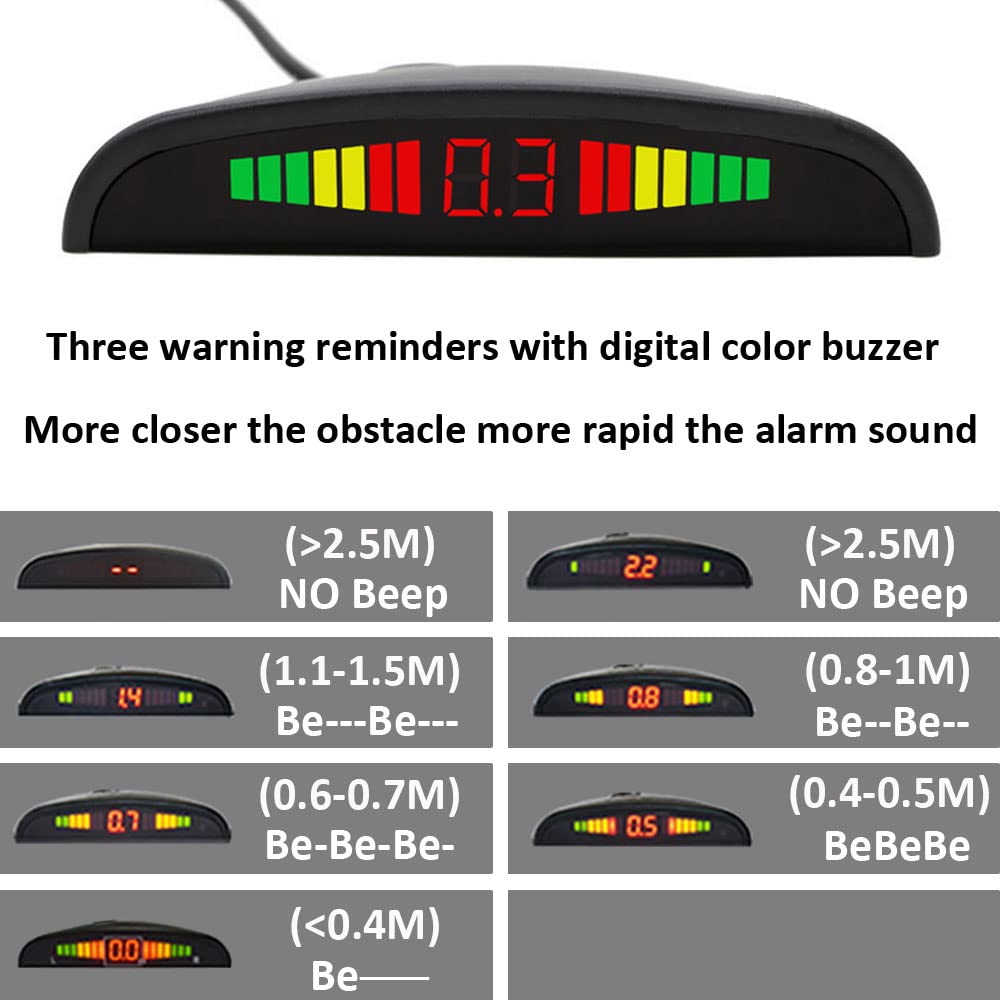

2. Three color, green, yellow, red LED lights indicate obstacle distance.
3. Obstacle specific position shows on the screen.
4. Beeping alarm fast step by step, closer to the obstacle, faster the alarm sound.
5. The probe self-tests, abnormal condition alarms to avoid collision caused by the probe damage.
6. Red power line are reversed with the car to light line, blue power line to ACC, black line to ground.
Specification:
1. Detection range from 0.3 to 2.5 m
2. Rate voltage: DC12V
3. Rate current: 20 mA-200 mA
4. Alarm volume:> 80 dB
5. Ultrasonic frequency: 40KHz
6. Working temperature: - 40 ~ + 80 degrees
7. LED display size: 9 cm x 1.5 cm
8. Main control panel size: 10.5 cm x 6 cm x 2 cm

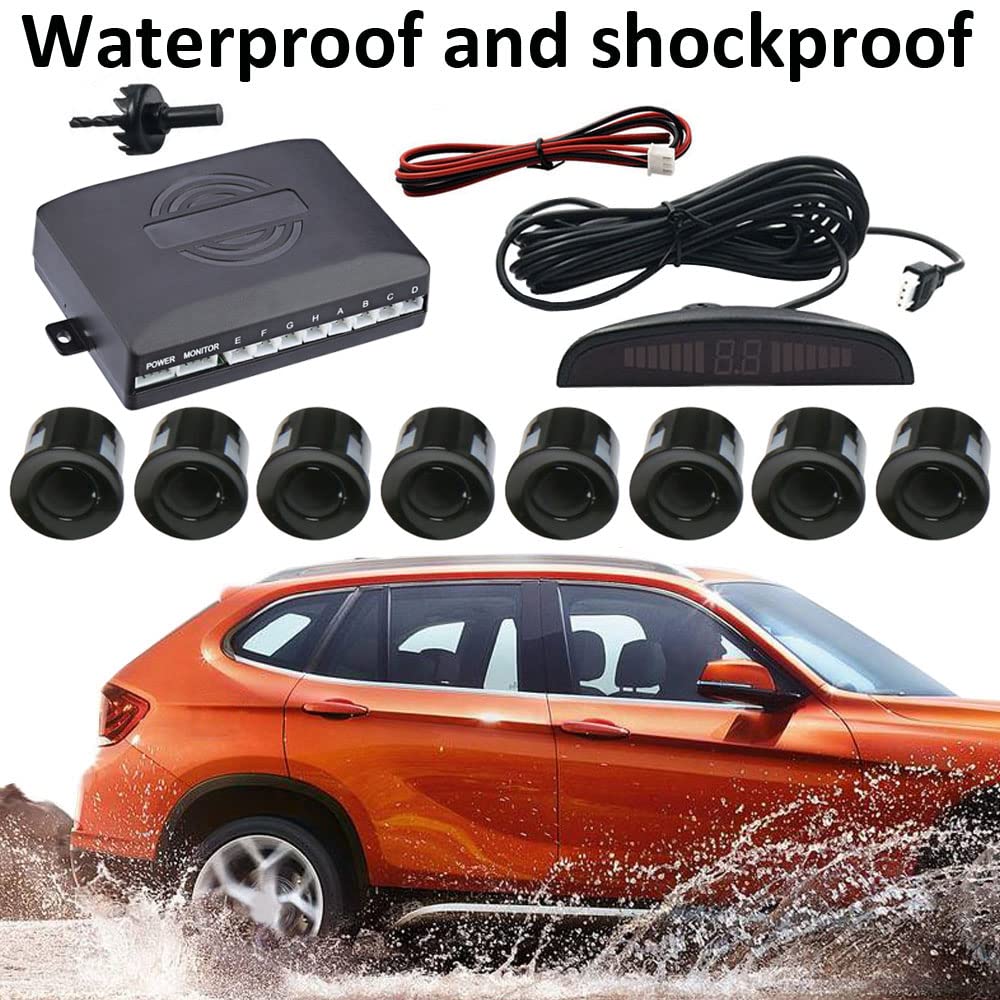

Package includes:
1 x main control box
1 x display
8 x sensors with 2.5 m line
1 x hole saw
1 x power cable
1 x User Manual
Package dimensions: 10.7 x 8.6 x 3.1 inches
