Description
Brand: khadas
Characteristics:

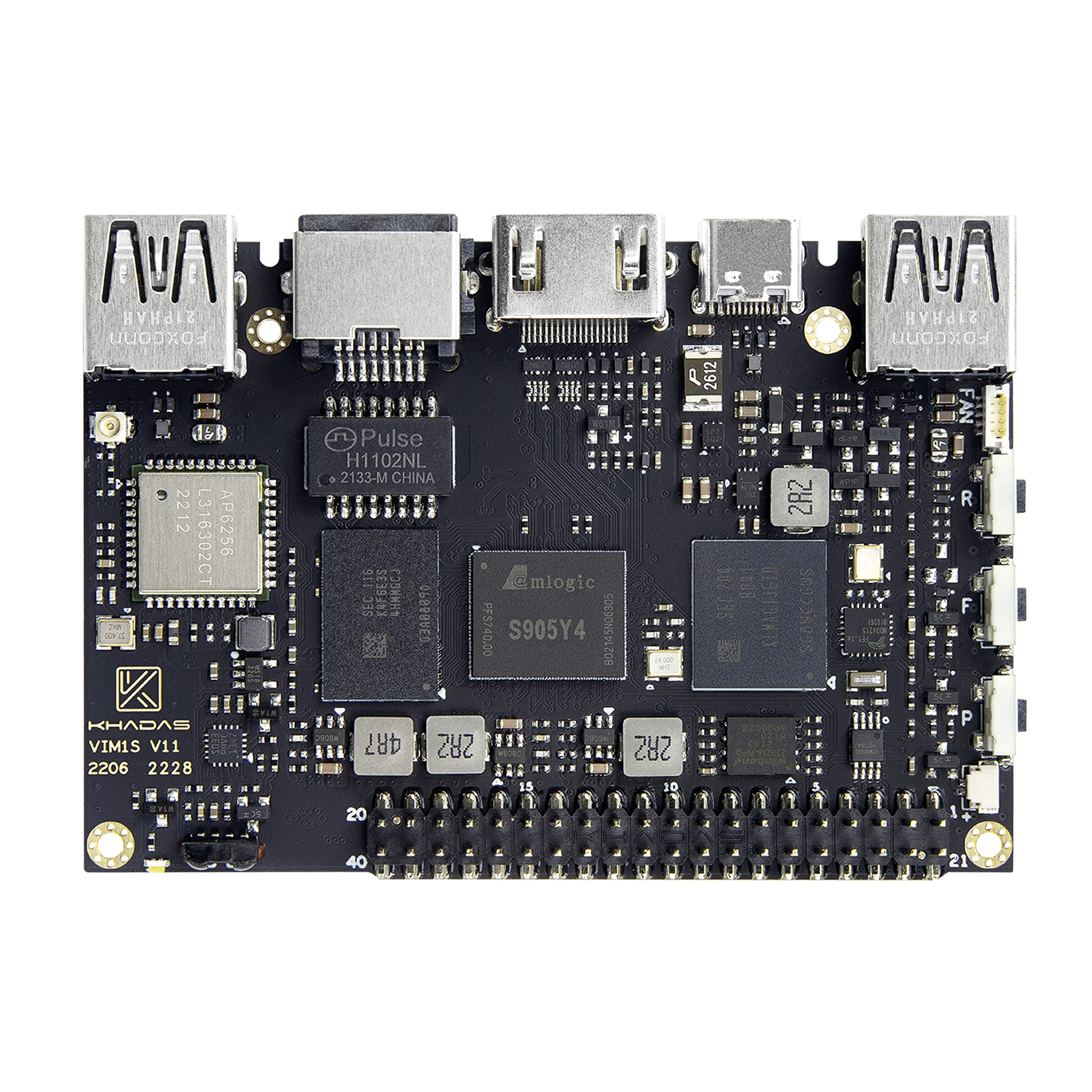

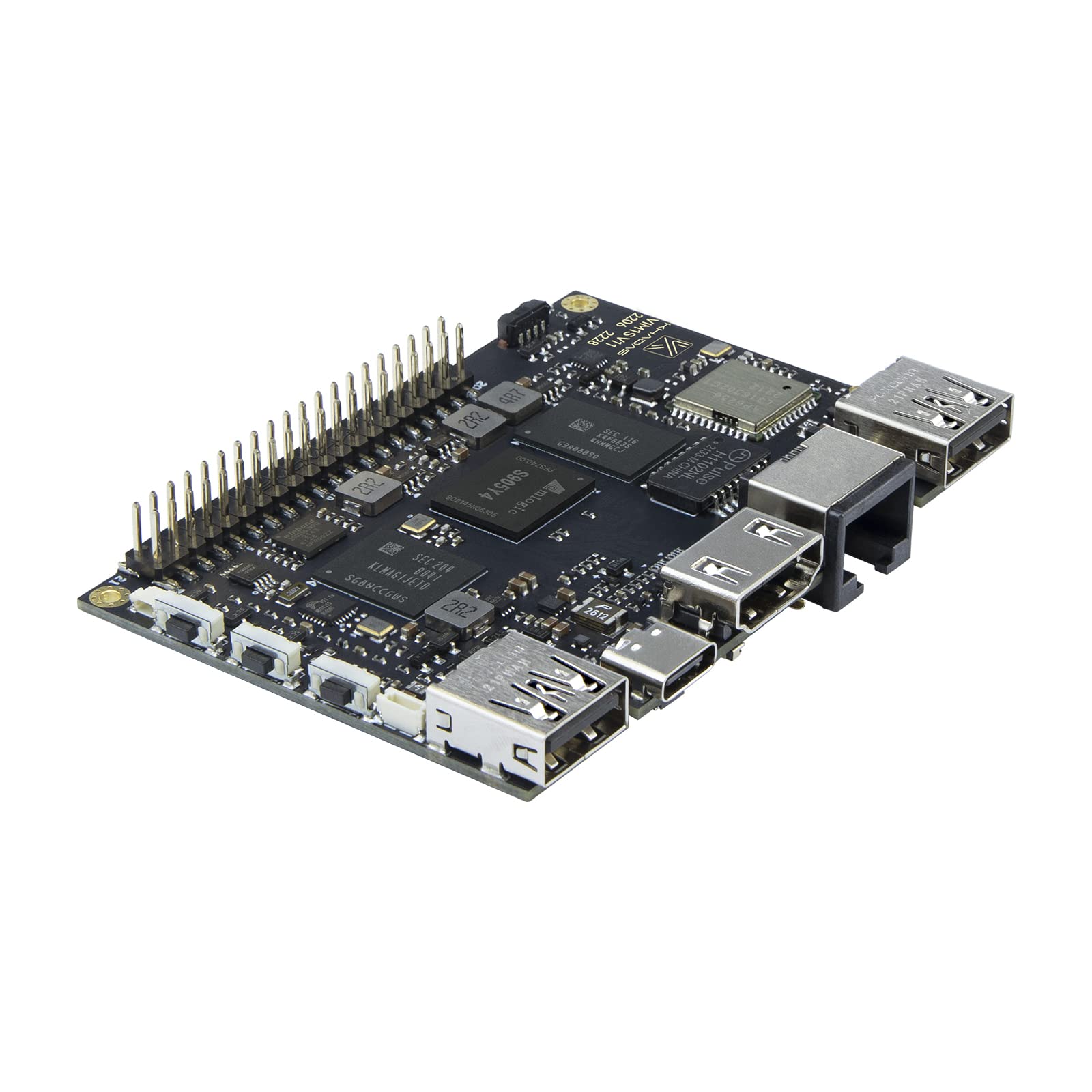

- The VIM1S is equipped with a powerful Amlogic S905Y4 SoC. It features 2 GB of 1176 MHz 32-bit LPDDR4 RAM and 16 GB of eMMC 5.0 storage. The processor is a 2.0 GHz quad-core Cortex-A35 CPU with an integrated ARM Mali-G31 MP2 GPU clocked at up to 850 MHz. The multi-video decoder supports up to 4x1080P @60fps and 4K @60fps H.265 decoding. The device supports HDR10, HDR10+, and HLG HDR video processing.
- In terms of connectivity, the VIM1S features Wifi5 AP6256 module with 802.11ac/a/b/g/n, Bluetooth 5.0 and 10/100M LAN.
- It features a manufacturer-friendly design and features a VIN port, a programmable MCU, a 40-pin 2.54mm header, and a 30-pin 1.0mm FPC connector. It also features three user buttons and hardware encryption.
- Two (500 mA) USB 2.0 HOST ports and one USB Type-C port (USB2.0 OTG & 5V DC IN) are available for a wide range of connection options.
- In addition, the memory can be expanded via the built-in Molex slot using a UHS-I TF card (max. 256 GB).
- In addition, the memory can be expanded via the built-in Molex slot using a UHS-I TF card (max. 256 GB).
Binding: Personal Computers
Model number: VIM1S
Item number: VIM1S
Package dimensions: 3.6 x 2.7 x 0.9 inches
