Description
Brand: HDFury
Color: black
Characteristics:
- Solves most HDMI handshake problems - Compatible with HDMI 2.0b & HDCP for resolutions up to 4K@60Hz with 18Gbps
- 40 predefined EDID banks (4K HDR, 4K DV, 4K HLG, 4K HDR10+, FullHD 3D, FullHD, 1080i, 720p, etc...) and 7 user-programmable EDID banks - Also includes an EDID readout function for connected display devices and also an option for EDI
- Integrated signal amplifier for even longer transmission distances (up to 50m) - Includes a function for feeding +5V to power active HDMI cables
- HDMI / DVI-D Emulator and Repeater - Maintains 4K / 2160p video signals without losing synchronization
- Improved compatibility with older monitors or projectors - Supports all DV modes, including DV Mode 0, Mode 1, Mode 2 and LLDV - RS232 control for remote management and with integrator setup
Binding: Electronic
Release date: 01-01-2019
Model number: DRHDMI4K
Item number: DRHDMI4K

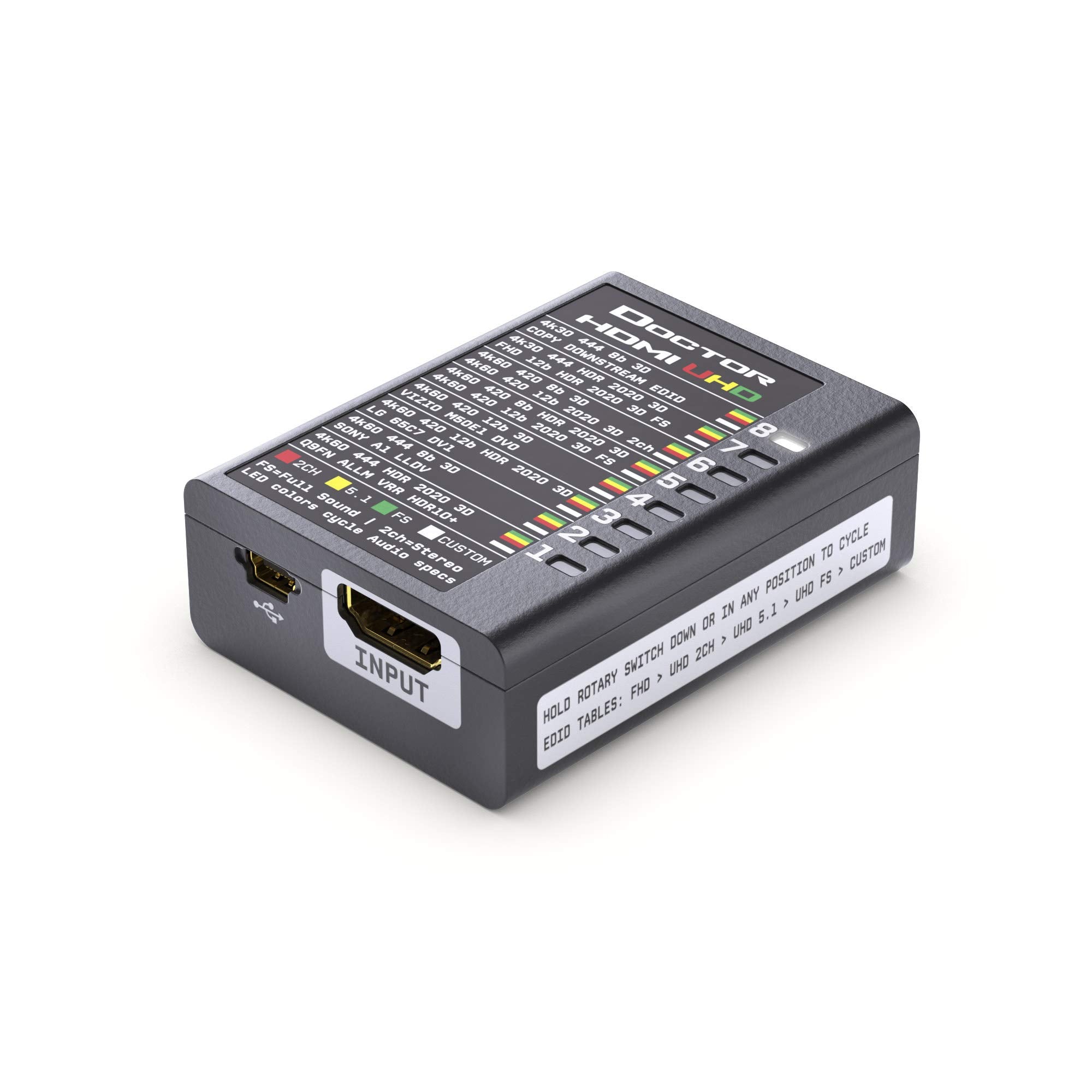

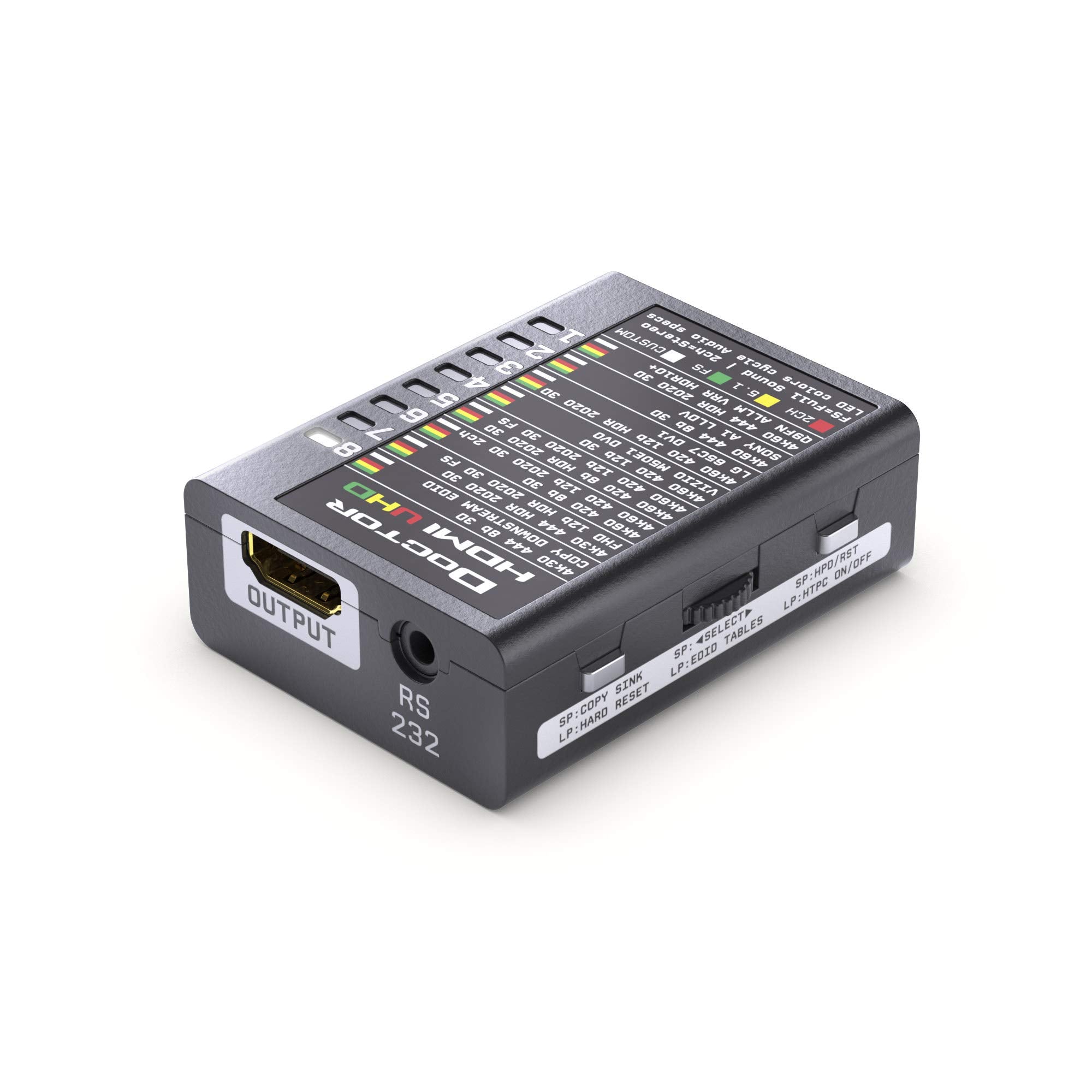

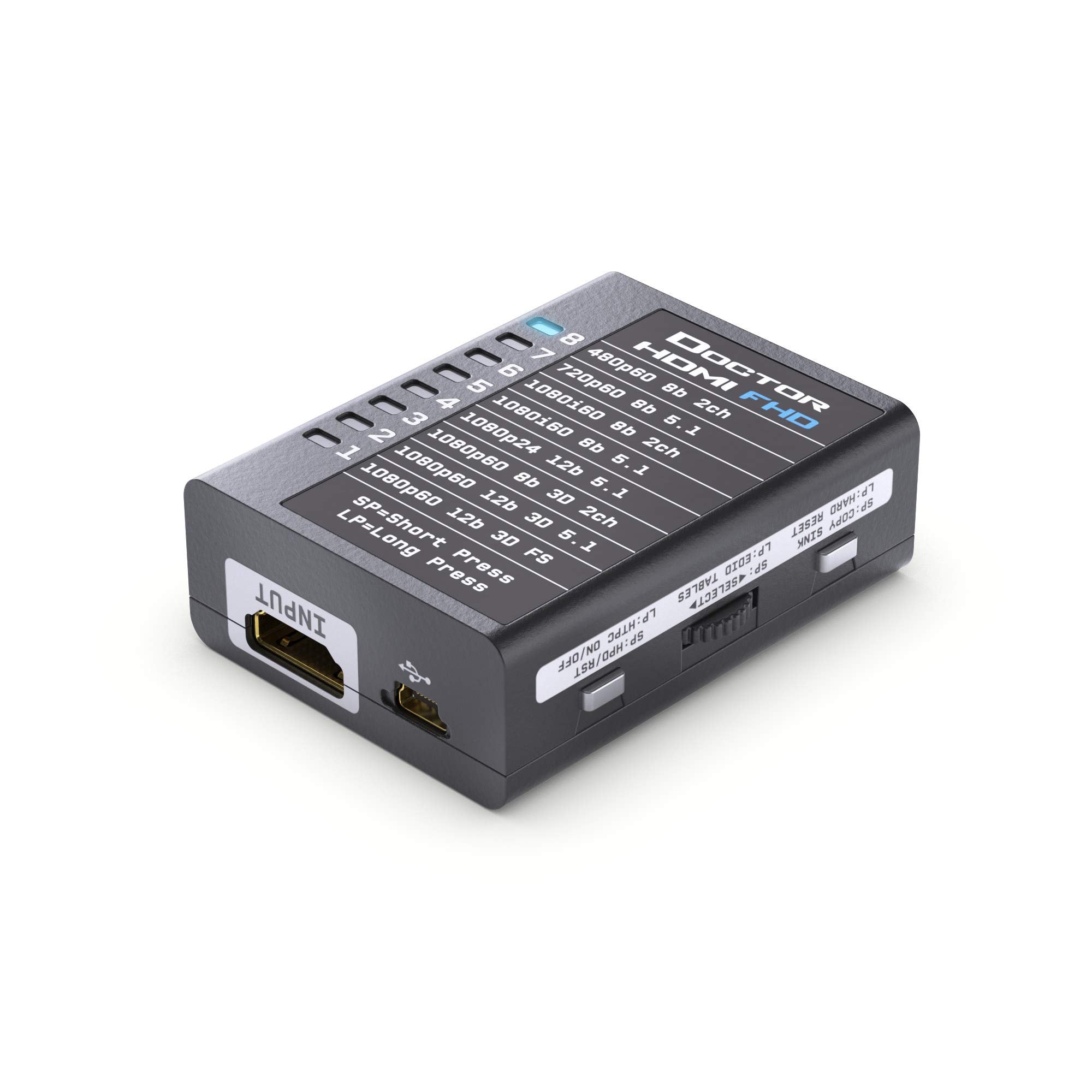

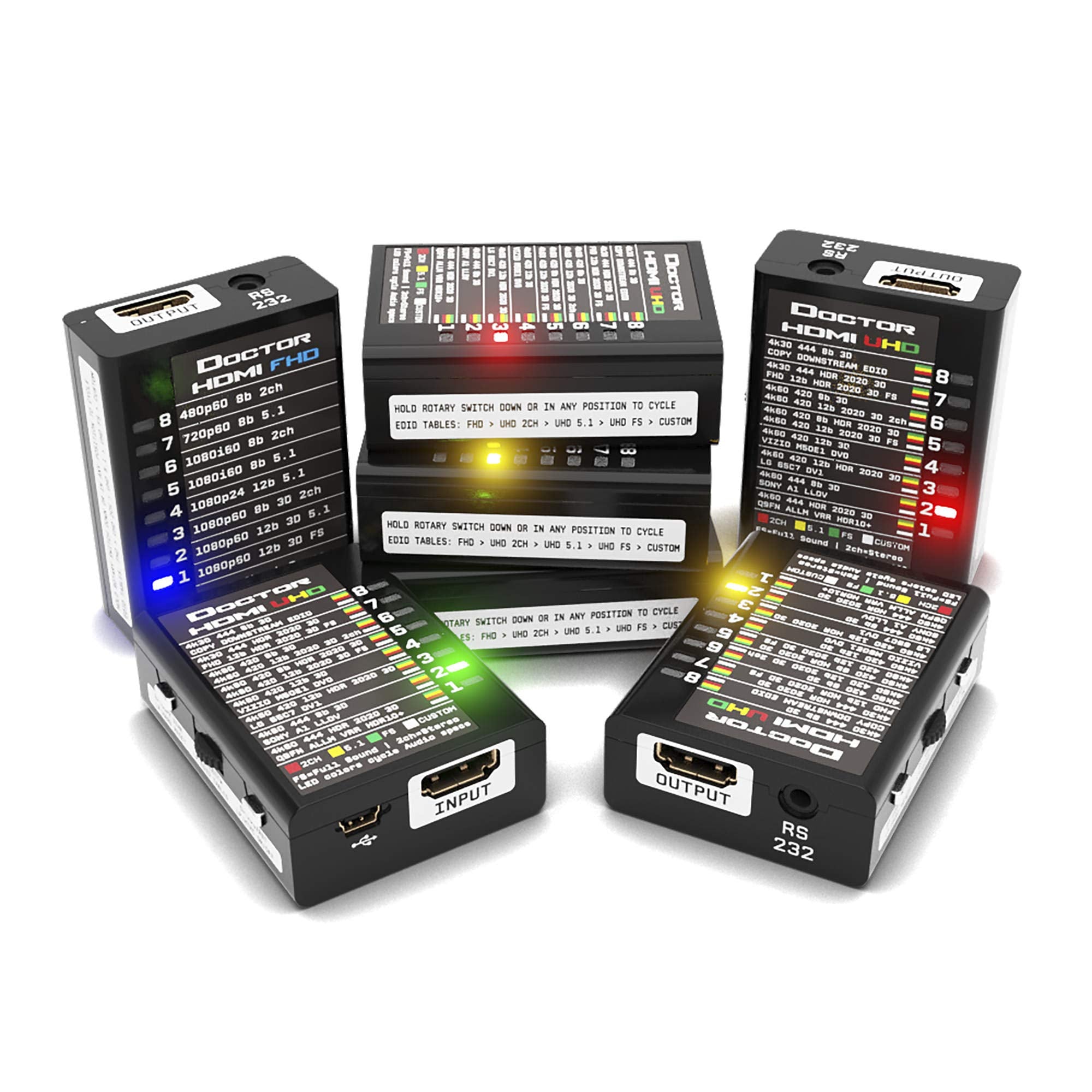

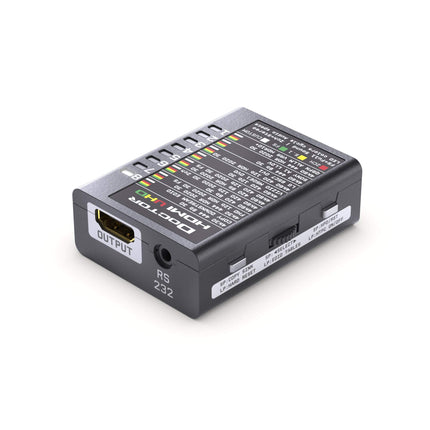

Details: Doctor HDMI 4K solves most HDCP/HDMI problems by simply connecting it between the source and display. Once connected, it can be configured to perform specific EDID and hot-plug events. This device also features internal logic to support HDCP streams by detecting all DDC packets and filtering EDID requests, but allowing all HDCP handshakes to pass through. PC software can be used to edit any of the parameters on the fly or to load/save individual EDIDs. Power is supplied either directly from the HDMI port or via USB, if connected. Firmware upgrades can be sent automatically with a single .exe file, so no additional software is required. Highlight features: - 18Gbps / 600MHz support with 0ms latency - Solves the vast majority of HDMI problems - Fixes HDMI handshake issues - EDID manager and "detective" function - Easy EDID table manipulation via USB port - HDMI / DVI-D emulator and repeater - Maintains 4K, 3840×2160, 2160p videos without loss of sync - 40 predefined EDID banks (4K HDR, 4K DV, 4K HLG, 4K HDR10+, FullHD 3D, FullHD, 1080i, 720p, etc.) - 7 user-programmable EDID banks - All DV modes supported, including DV Mode 0, Mode 1, Mode 2 2 and LLDV - Sink EDID readout function - Reads the exact EDID of the connected display device and adjusts the assigned input signal accordingly - Perfect signal integrity over up to 50 meters - HTPC mode to avoid detecting the operating mode of the connected display device - +5V injector function to power active HDMI cables - RS232 control for remote management and setup, for integrators - HDCP compliant "Dr. HDMI 4K" Specifications - HDMI 2.0b compliance - 18Gbps / 600MHz support with 0ms latency - 40 EDID banks (8 FHD, 24 UHD, 7 user-programmable, 1x sink device) - On-the-fly reset/blocking of HPD events - Up to 50 meters of cable length - Can keep the HDMI/DVI-D output of the source device active - Updateable via USB and flashable from the computer - User-programmable EDID banks - Sink EDID readout function - HTPC mode (avoid Windows detecting the output device status) - Any resolution, including 2.0b HDMI standards - Video bandwidth: 18 Gbps - Video support: Single-link 600MHz - Audio support: Atmos, DTS-X, Dolby True HD & DTS Master Audio, etc. - Equalization of HDMI inputs - +5V HDMI power connector for active cables up to 50m - Supports extended EDID CEA861, 256 bytes - HDCP pass-through - Lip sync pass-through - CEC protocol pass-through - Power supply: Universal USB power adapter or via HDMI - Compliance: HDCP/FCC/CE - Input/output connector: HDMI female - USB: Mini USB-B female for updates and power
EAN: 0686603105276
Package dimensions: 7.2 x 5.2 x 2.4 inches
