Description
Brand: Geekstory
Color: Black
Characteristics:
- In the ordinary GPS receiver module can not locate the location, such as narrow urban sky, dense jungle environment, GT-U7 can be high-precision positioning
- GT-U7 module, with high sensitivity, low power consumption, miniaturization, its extremely high tracking sensitivity greatly expands its positioning coverage
- With a USB interface, you can connect it directly to the computer. That is, with the host computer's own serial port function, no need for an external serial module. USB directly connected to the computer, that is, with the host computer's own serial port function, no need for an external serial module, transmitting via the IPX interface active antenna.
- This GPS module is ideal for vehicle-mounted, handheld devices such as PDAs, vehicle monitoring, mobile phones, camcorders and other mobile positioning systems that share the bike, as well as mobile power sharing, etc.
- Operating voltage: 3.6V-5V (or direct USB power supply); Operating baud rate: 9600 (can be changed)
Binding: Electronic
Item number: GR2922N
Details: Description:
With a USB interface, you can directly use the phone data cable on the computer point of view positioning effect.
USB directly connected to the computer, That is, with the host computer-owned serial port function, no need for external serial module, send IPX interface active antenna!
Features:
GT-U7 module, with high sensitivity, low power consumption.
Miniaturization, its extremely high tracking sensitivity greatly expanded its positioning of the coverage.
In the ordinary GPS receiver module can not locate the place, such as narrow urban sky, dense jungle environment, GT-U7 can be high-precision positioning.
Modules with high sensitivity, small static drift, low power and lightweight volume.

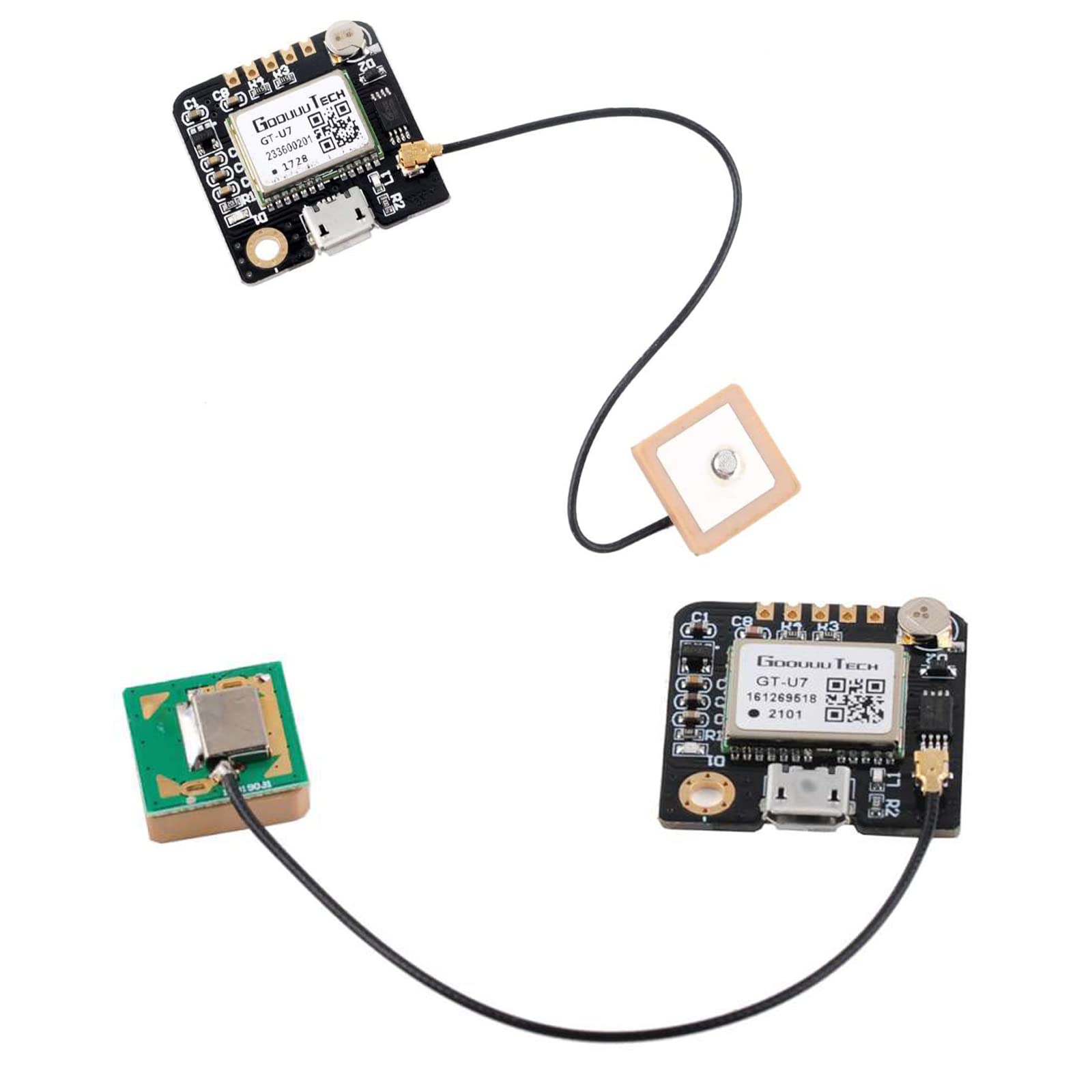

With IPEX antenna interface, the default distribution of active antenna, can be quickly positioned
Operating voltage: 3.6V-5V (or direct usb power supply)
Operating baud rate: 9600 (can be modified)
Onboard E2PROM can save parameter data
NEMA output format is compatible with 6M

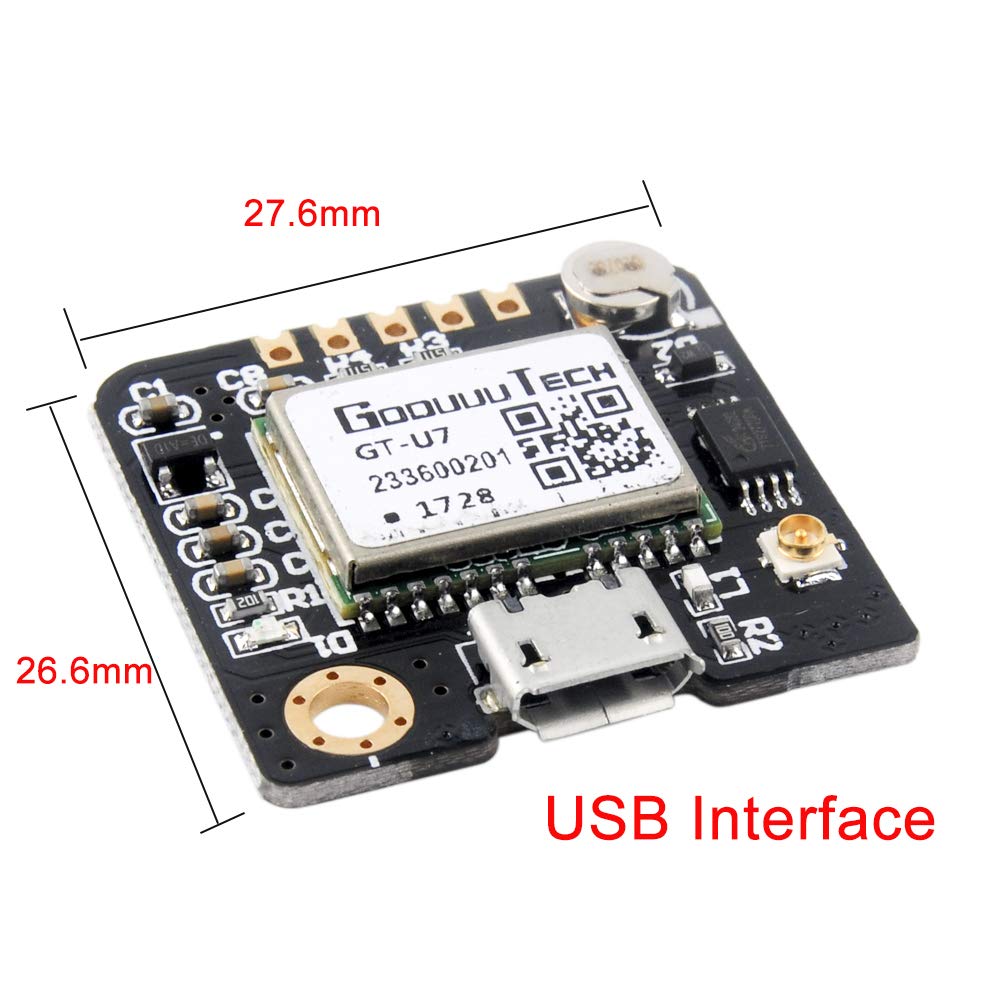

Size: 27.6mm * 26. 6mm can be inserted or selected patch (with positioning holes)
Application:
Vehicle-mounted
Handheld devices such as PDAs
Vehicle monitoring
Mobile phones, camcorders and other mobile positioning systems
Sharing bike
Sharing mobile power
Package Includes:

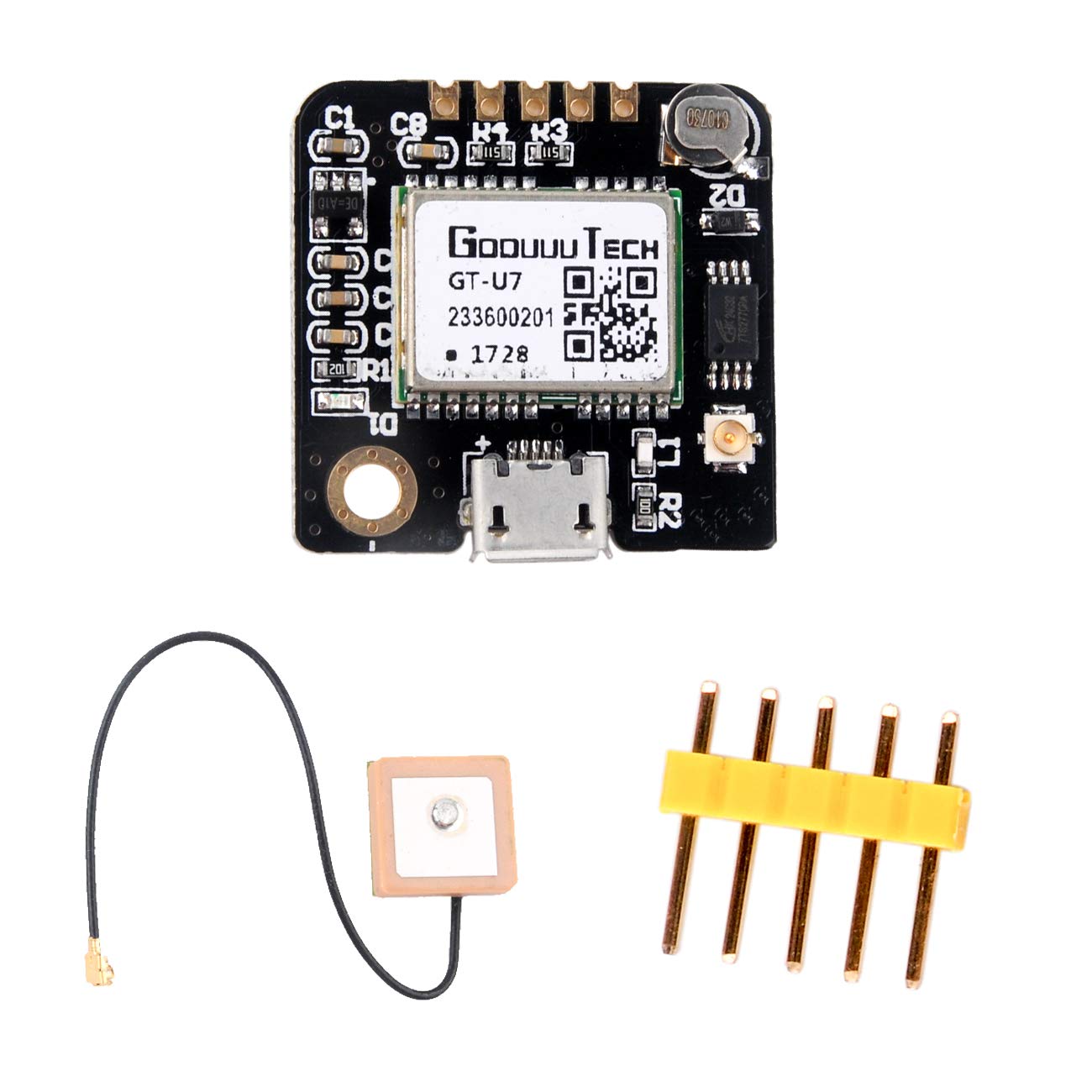

1 x GT-U7 GPS module
1 X IPX interface active antenna
EAN: 0747356629638
Package dimensions: 2.9 x 2.0 x 0.5 inches
