Description
Brand: Geekstory
Characteristics:

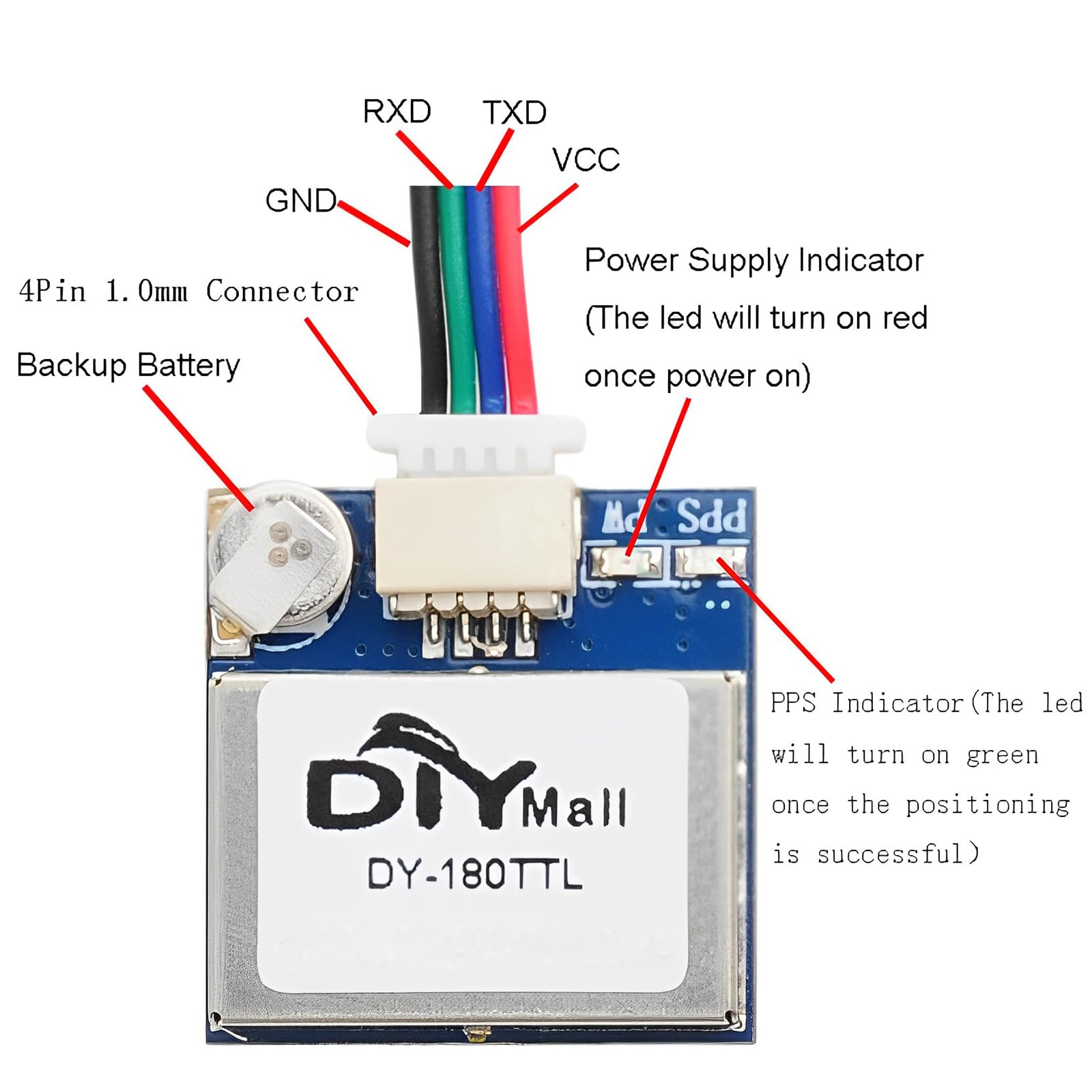

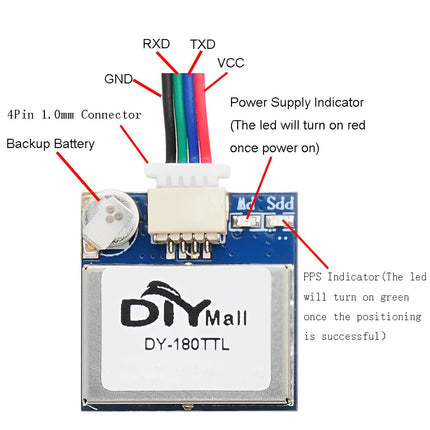

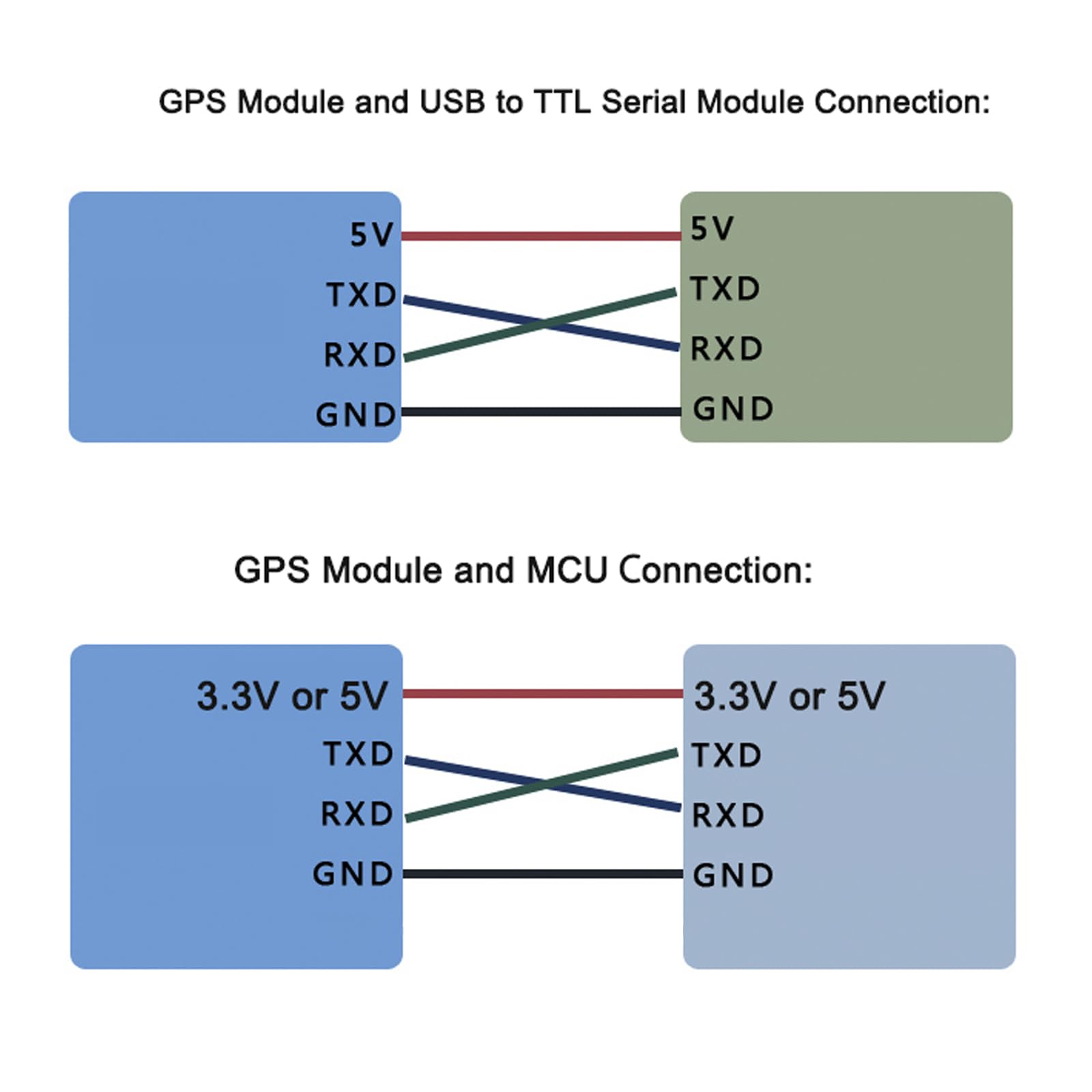

- This DY-180 TTL GPS module can display your speed. No driver is required when using it with Raspberry Pi. Here's how to connect it to the RPi: Red to 3.3V, Black to Gnd, Green to TXD, White to RXD
- The PW LED flashes indicate normal GPS module output. The PPS LED flashes indicate that the GPS module is in place. Note: No PPS output, only PPS display.
- Data level: TTL or RS-232, standard TTL level. To obtain an RS-232 output, you must use a TTL-to-RS-232 converter cable.
- This DY-180TTL GPS module has no flash memory and cannot be saved. 72 search channels, support rate: 4800 bps to 921600 bps, default 9600 bps

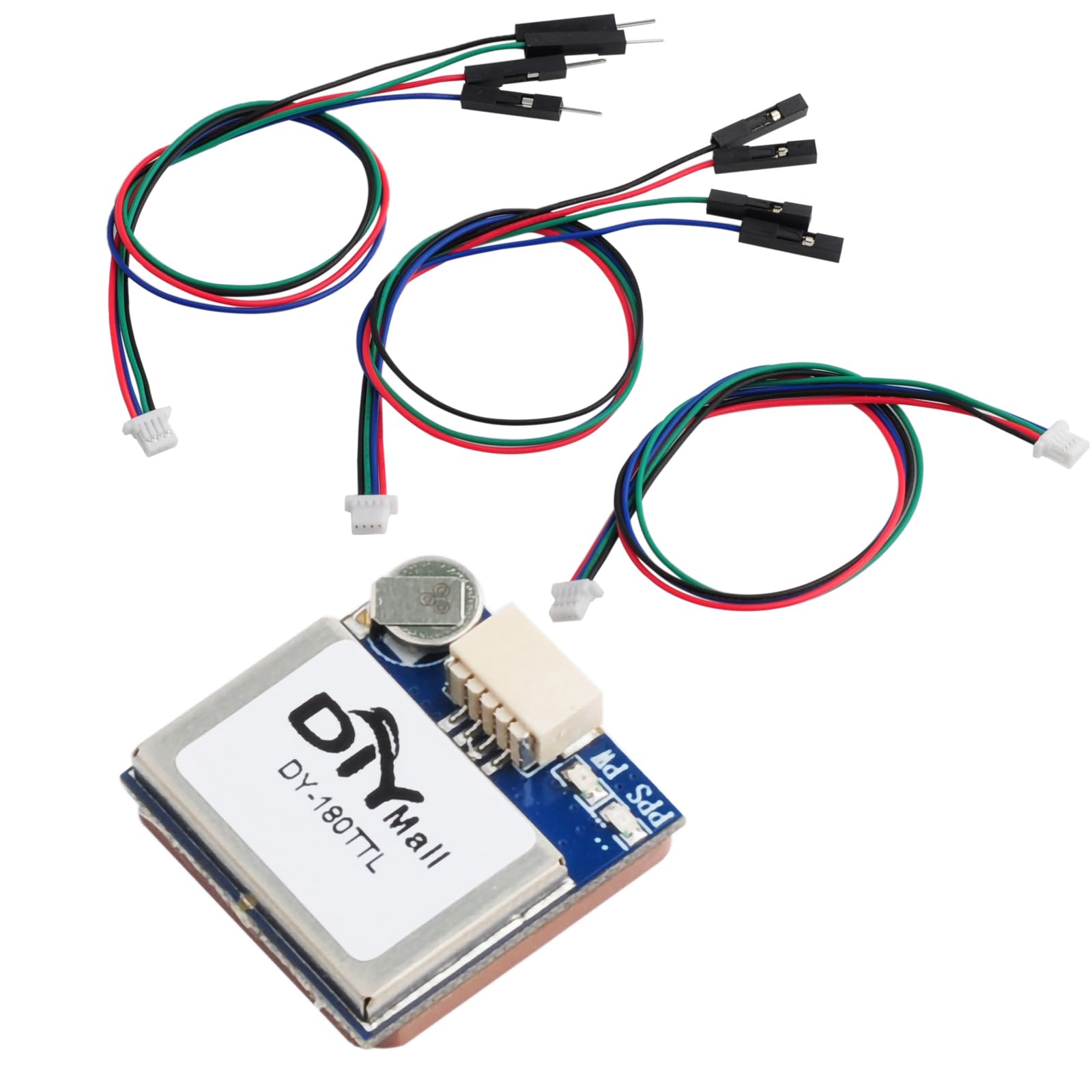

- What you get: 1 x DY-180TTL GPS module, 3 x 4P 1.0mm pitch cable
Binding: Electronic
Details: Description:
Supports GPS + GLONASS (default); GPS + Beidou; GLONASS + Beidou multi-mode output.
Integrated LNA signal amplifier
Built-in TCXO crystal and Fara capacitor for faster hot start
1-10 Hz positioning update rate.
Baud rate 4800 bps - 921600 bps (default 9600 bps)
Channel: 72 channels.
Horizontal accuracy: 2.0 m.
Output level TTL level
Output protocol NMEA0183 standard protocol
Update frequency 1-10 Hz (default 1 Hz)
Connection: 4-pin, 1.0 mm pitch.

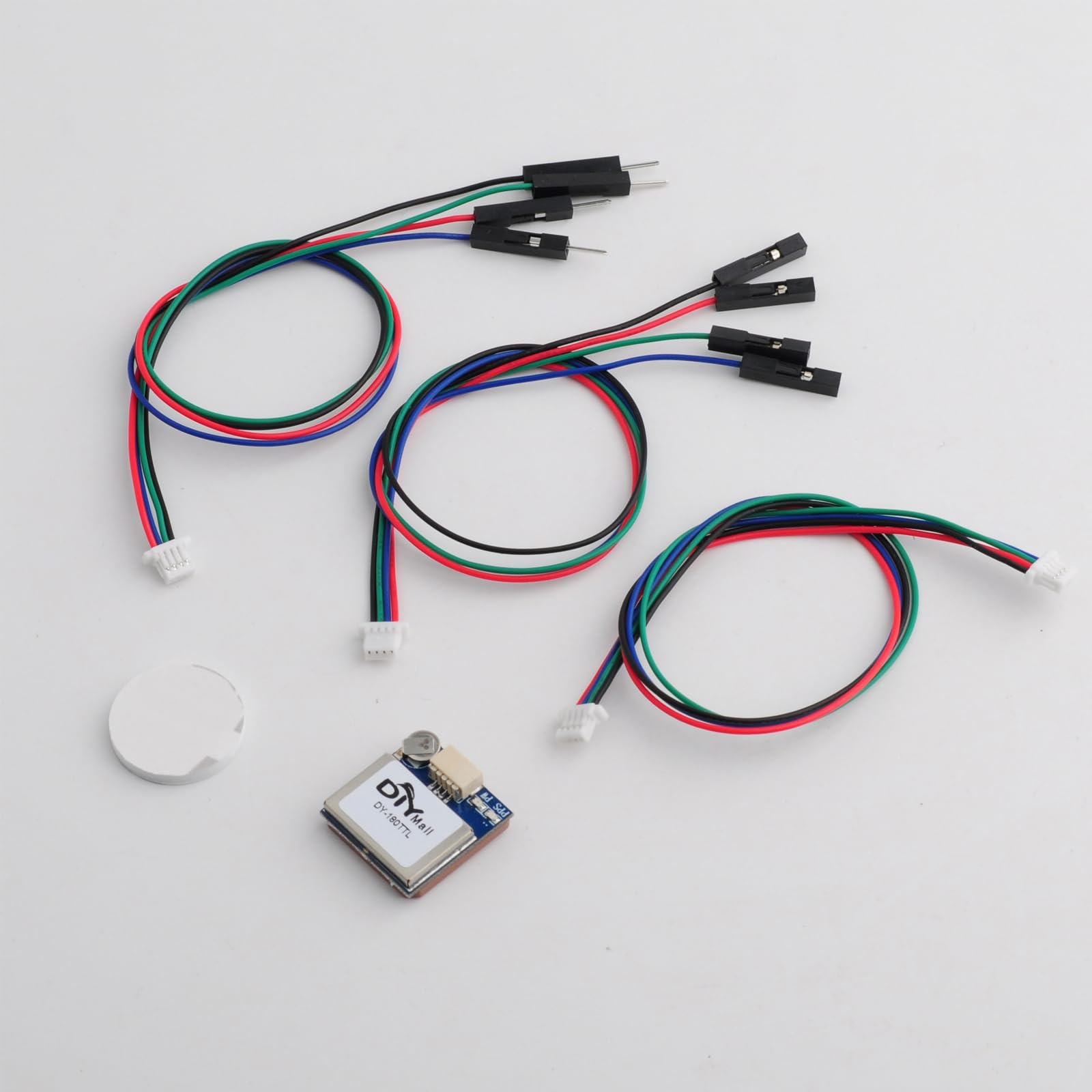

Package includes:
1 x DY-180TTL GPS module.
3 x 4P 1.0 mm pitch cable.

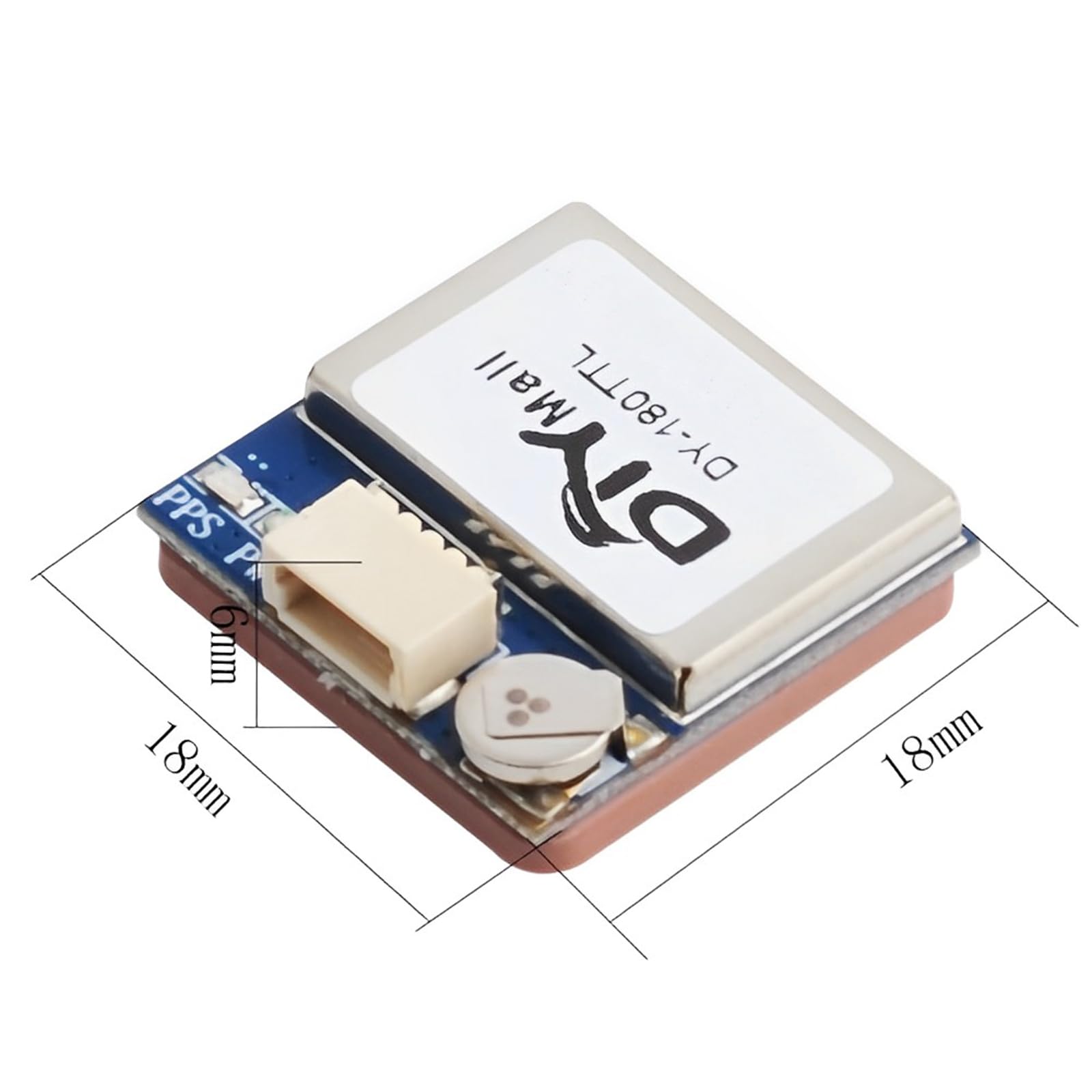

Package dimensions: 2.7 x 1.8 x 0.4 inches
