Description
Brand: KGUSS
Color: Black
Characteristics:

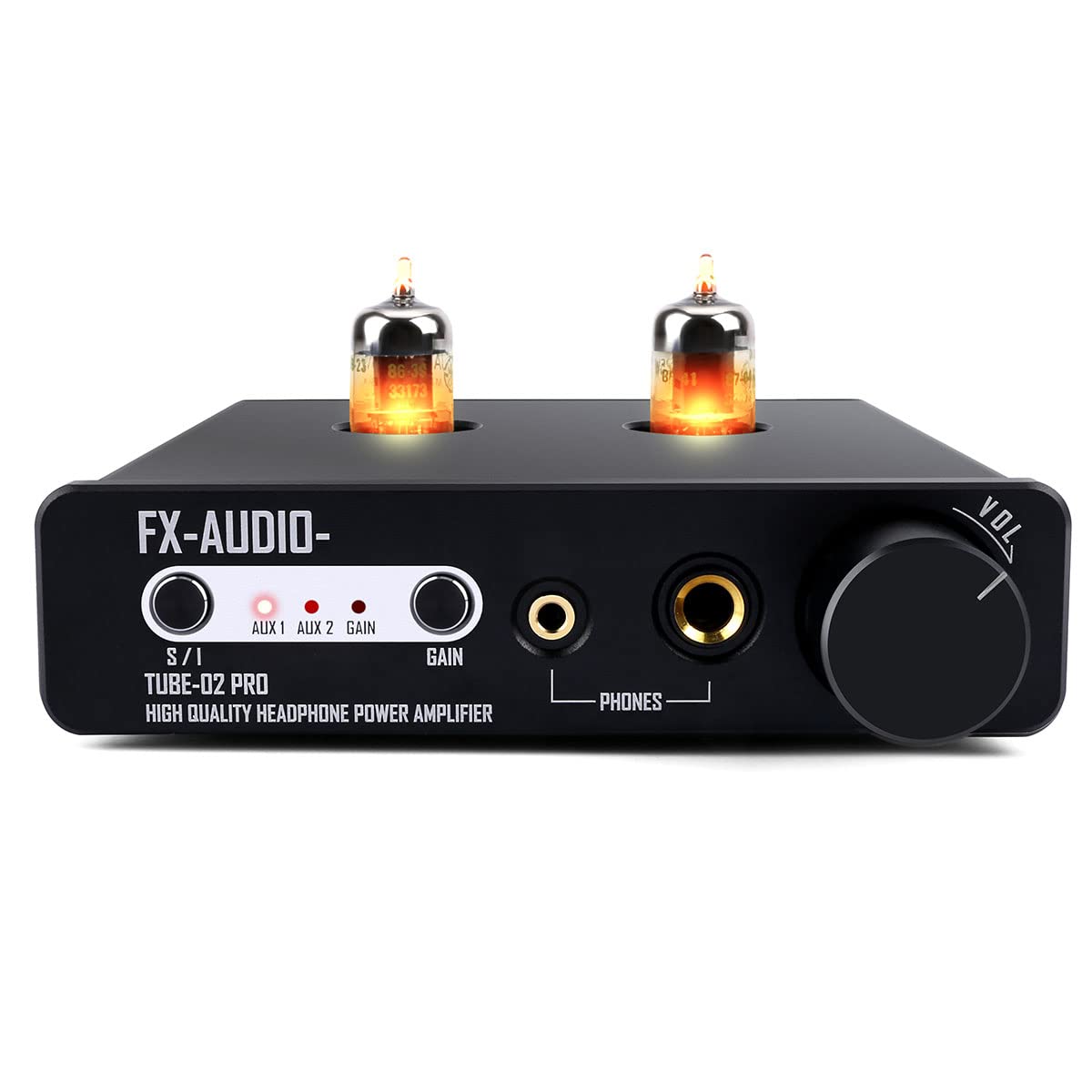

- The TUBE-02 PRO is a Class A tube headphone amplifier that uses 5725 tubes for signal amplification. It has a strong tube flavor, delicate tone, and high power, providing an extremely high-quality listening experience.

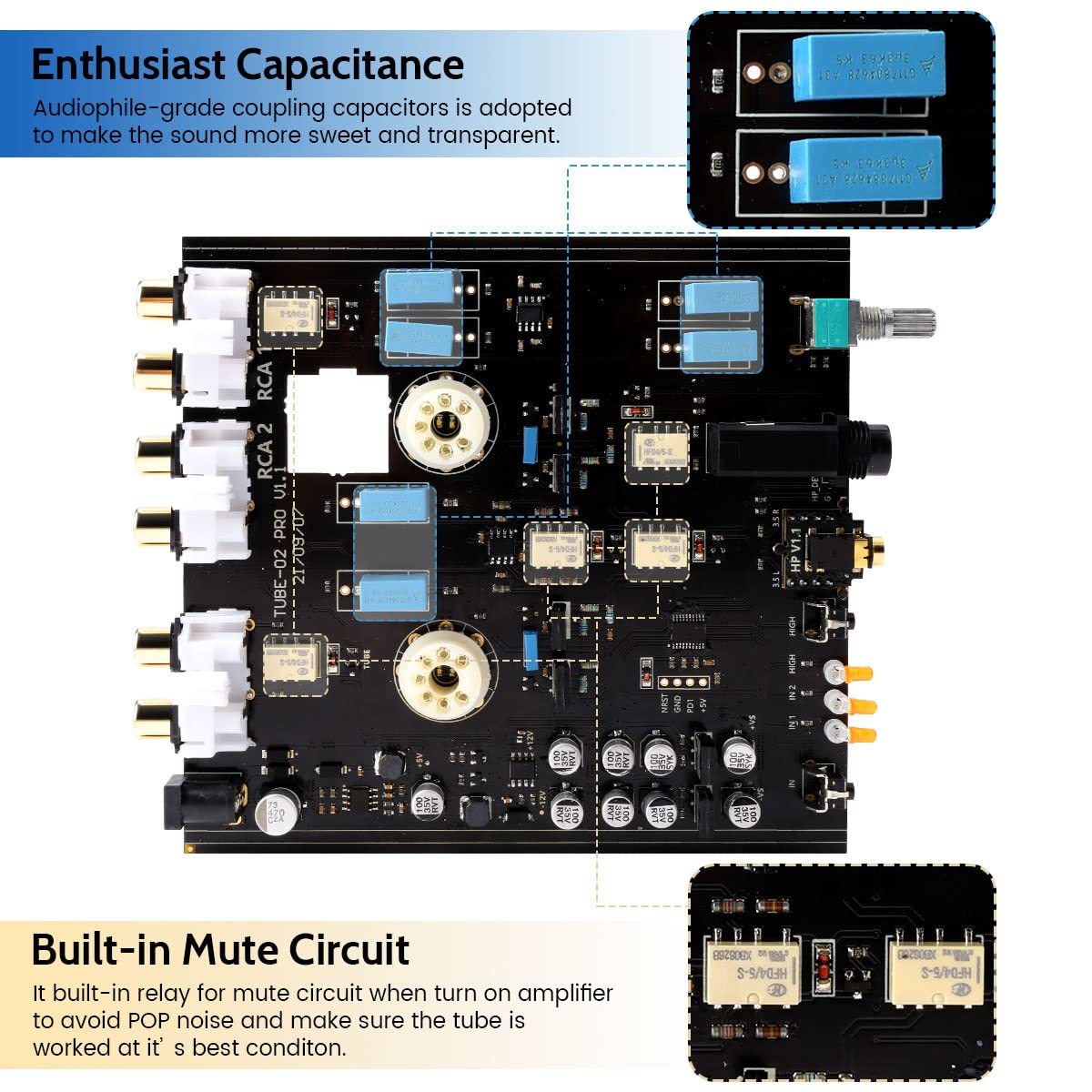

- Adopting transistors for Class-A buffers, strong output power can easily drive any type of headphones, output power up to 850mW. And audiophile coupling capacitors are used to make the sound sweeter and more transparent.

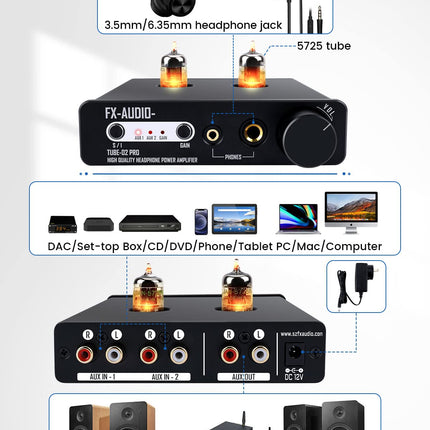

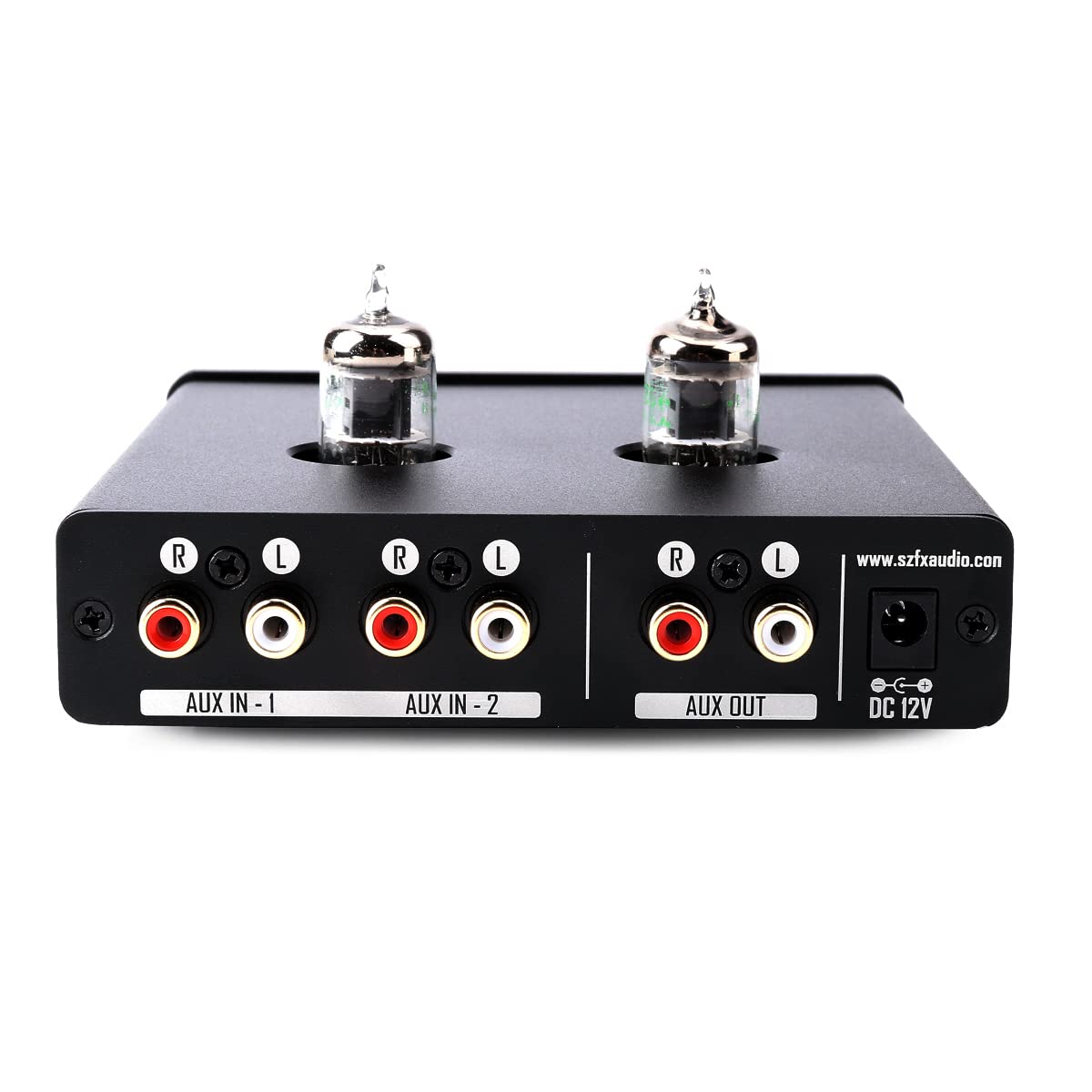

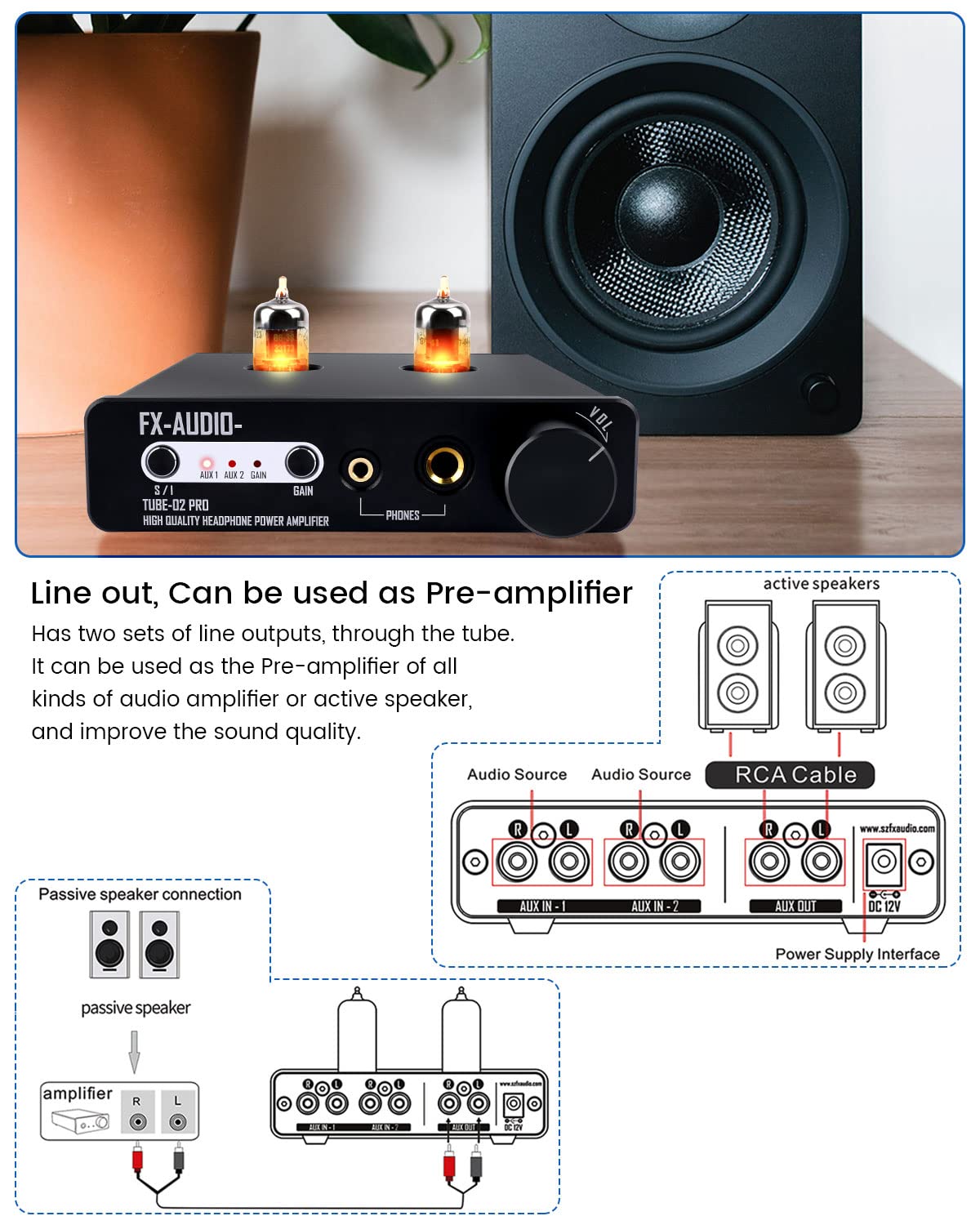

- Has two sets of line outputs,through the tube.The design is novel, and the variant amplification of internal transistor and electron tube is processed by tube output,which solves the trouble of plugging in and out when enthusiasts use multiple sound sources

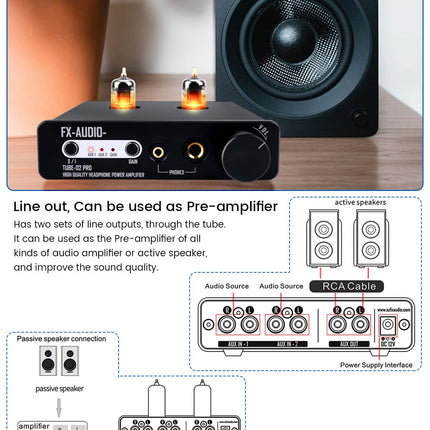

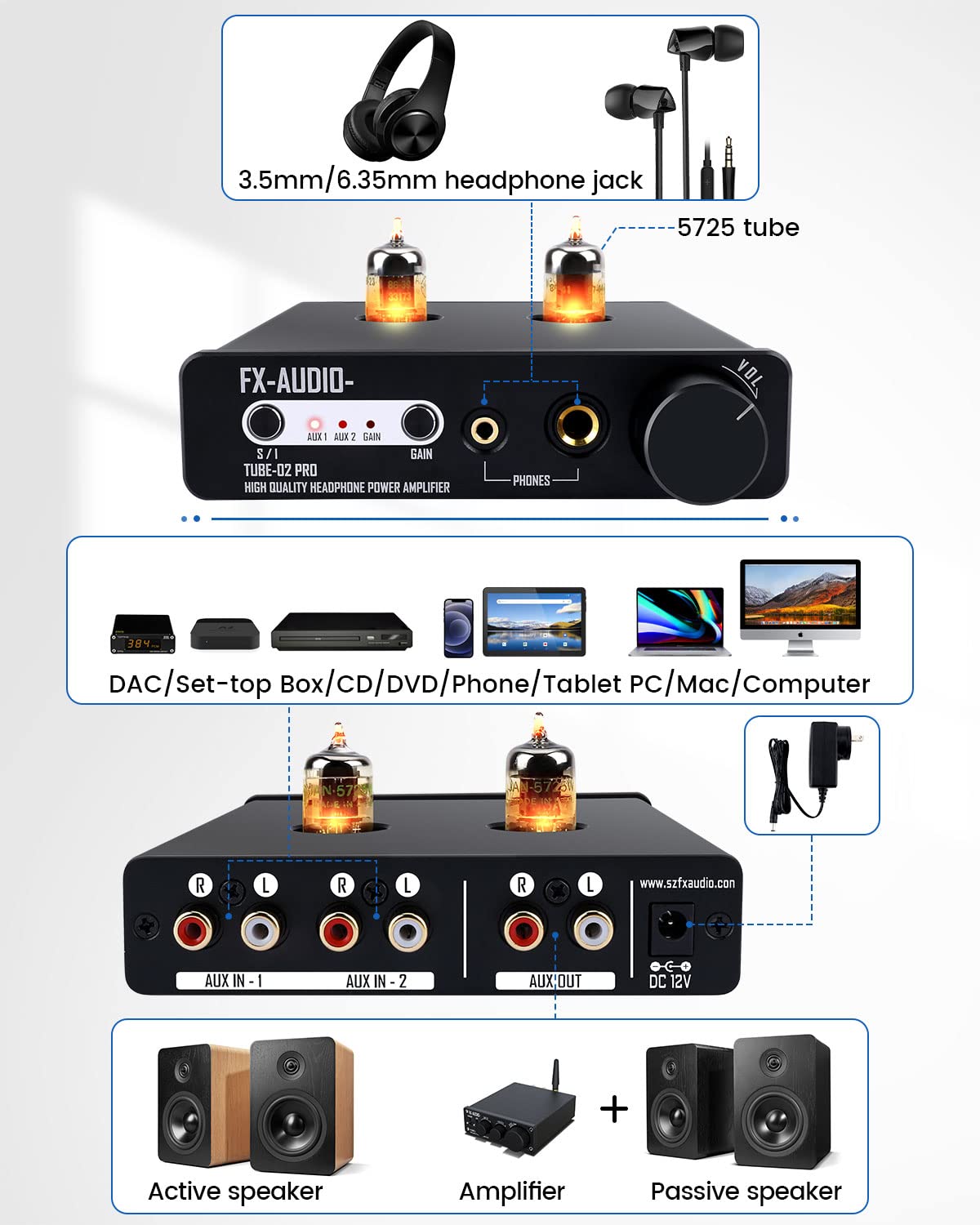

- It can be used as a preamplifier for all types of audio amplifiers or active speakers, improving the sound quality of audio amplifiers or active speakers. The black matte texture looks simple and elegant, providing a visual delight, ideal for home and desktop audio systems.

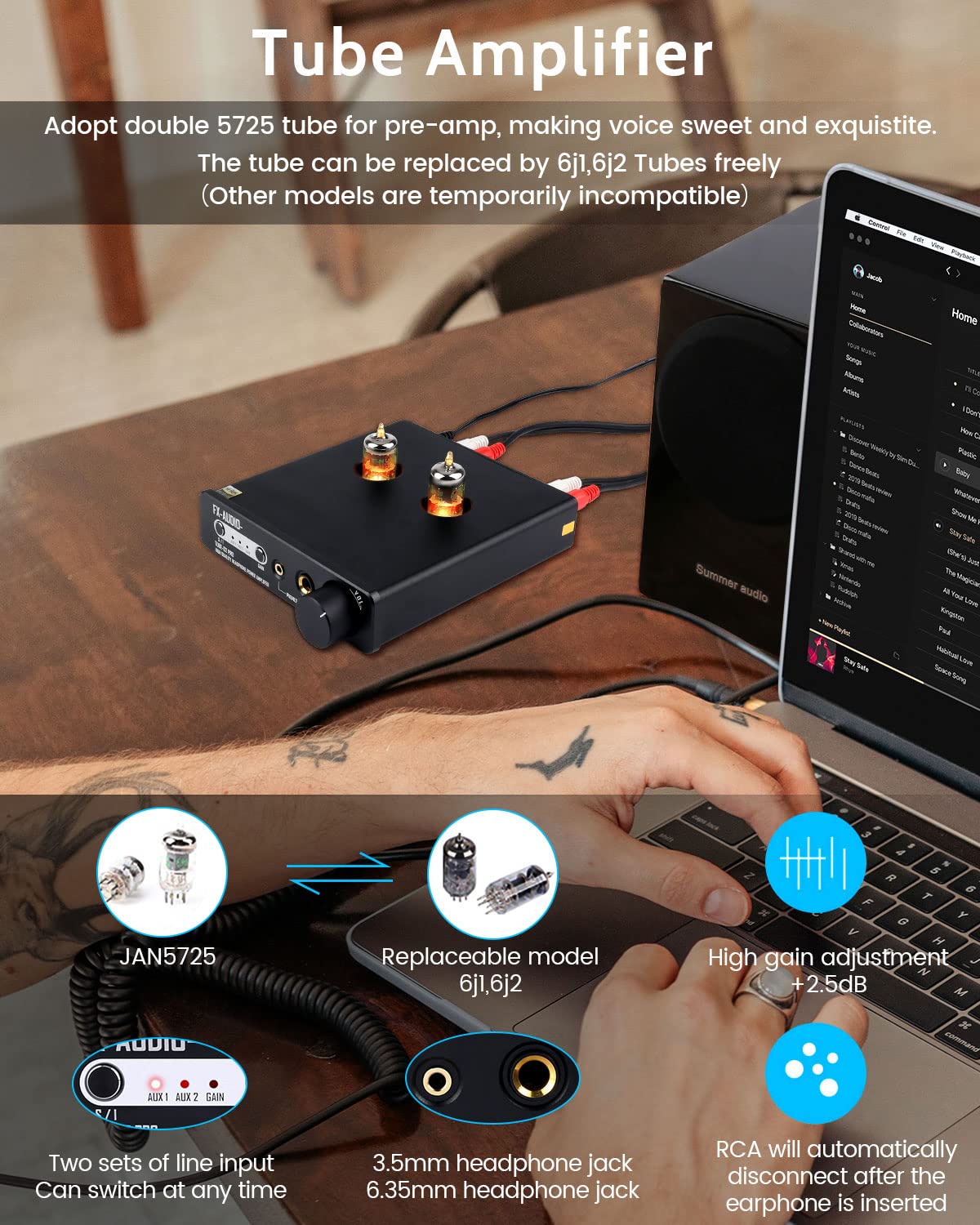

- In high-gain mode, the gain can be increased by +2.5 dB. The tube can be freely replaced with 6J1 or 6J2 tubes (other models are temporarily incompatible), providing a lot of fun and increased playability.
Binding: Electronic
Model number: FX AUDIO TUBE02 PRO
Item number: FX AUDIO TUBE02 PRO
Details: Technical data:
Brand: FX-AUDIO.
Model: Tube-02 Pro.
Operating voltage: 12 V
Tube model 5725
Headphone output power: THD+N<1%
850mW (32Ω), 450mW (64Ω), 256mW (150Ω), 130mW (300Ω), 65mW (600Ω).
Line output level: 1.7 rms.
SNR: Line output 114 dB, headphone output 113 dB.
Frequency response: 20–40 kHz.
Output impedance: <0.1 Ω.
Power consumption: 6 W.
Noise level: <1 mV.
Standby: <0.1 W
Weight: 0.7 kg.

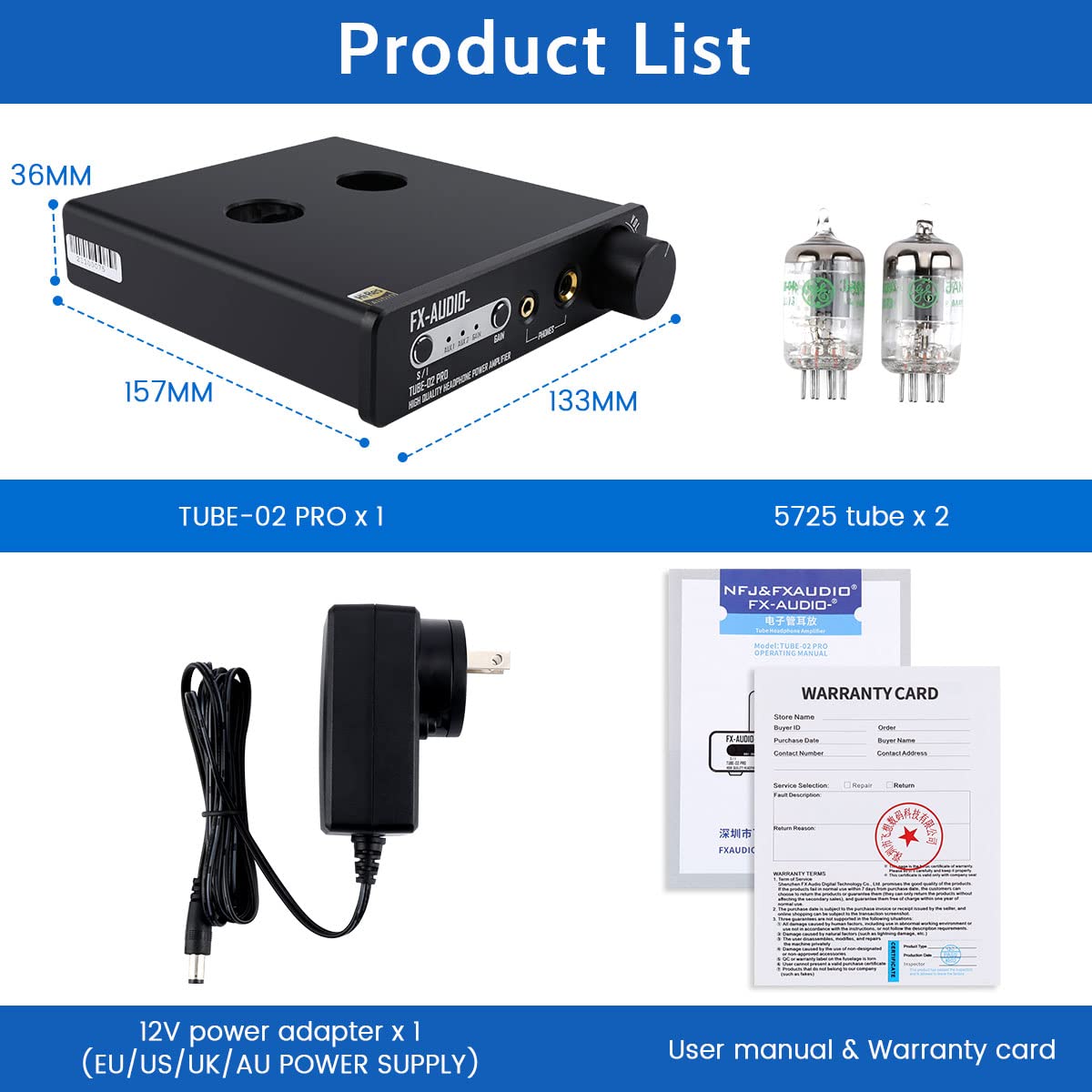

Packaging dimensions: 25 x 20 x 7 cm.
Package dimensions: 10.4 x 8.1 x 2.8 inches
