Description
Brand: MCH
Color: Silver
Characteristics:
- DN-110
- Stainless steel grate: 150 x 150 mm
- Installation height: 105 mm
- Made of polypropylene - standard EN 1253-1 and stainless steel
- Heat resistance up to 90°C
Binding: Tool
Release date: 07-05-2019
Model number: 323 N
Item number: 323 N

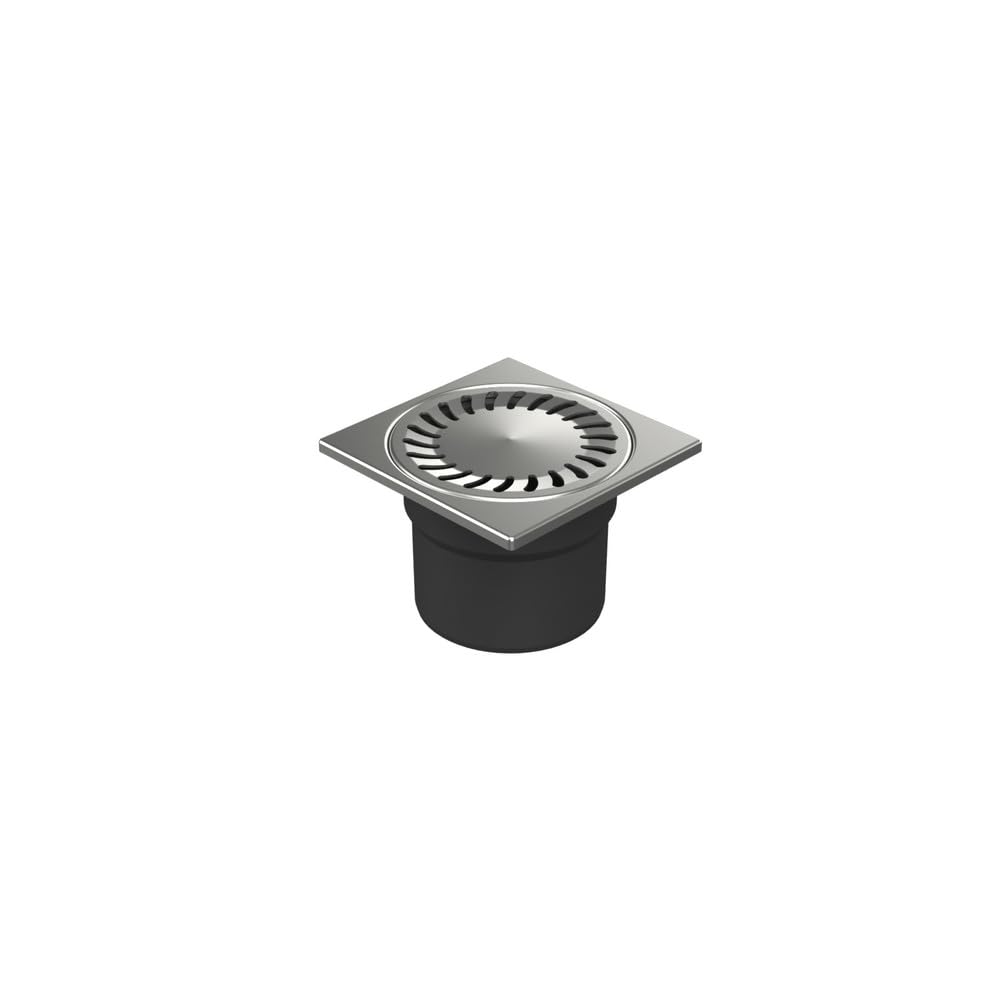

Details: Shower drain - bathroom drain - floor drain in the highest manufacturing quality.
Order No.: 323-N
Safety and ISO certified by TÜV SÜD

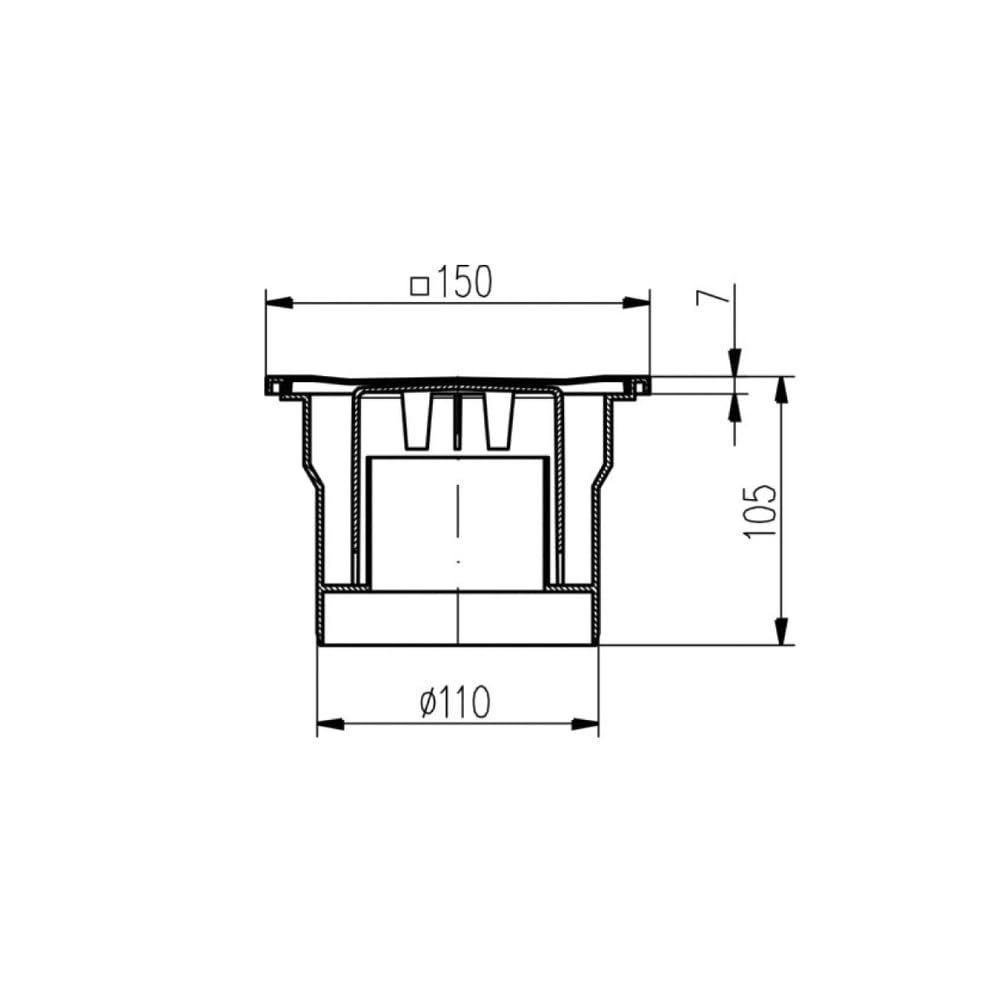

Universal DN-110 with stainless steel grate (1.50 mm thick) and stainless steel surface (150 x 150 mm). Vertical outlet N-110 for 100 mm KG or HT pipe. Removable odor trap for easy cleaning. For indoor and outdoor use. Installation height including grate: 105 mm. Made of polypropylene - standard EN 1253-1 and stainless steel. Load capacity K3-300 kg.
Heat resistance up to 90 °C. Flow rate 50 l/min. Order the matching waterproofing film / sealing film in our shop.
EAN: 8595587400685
Package dimensions: 6.0 x 5.9 x 4.1 inches
