Description
Brand: YEDDY
Characteristics:

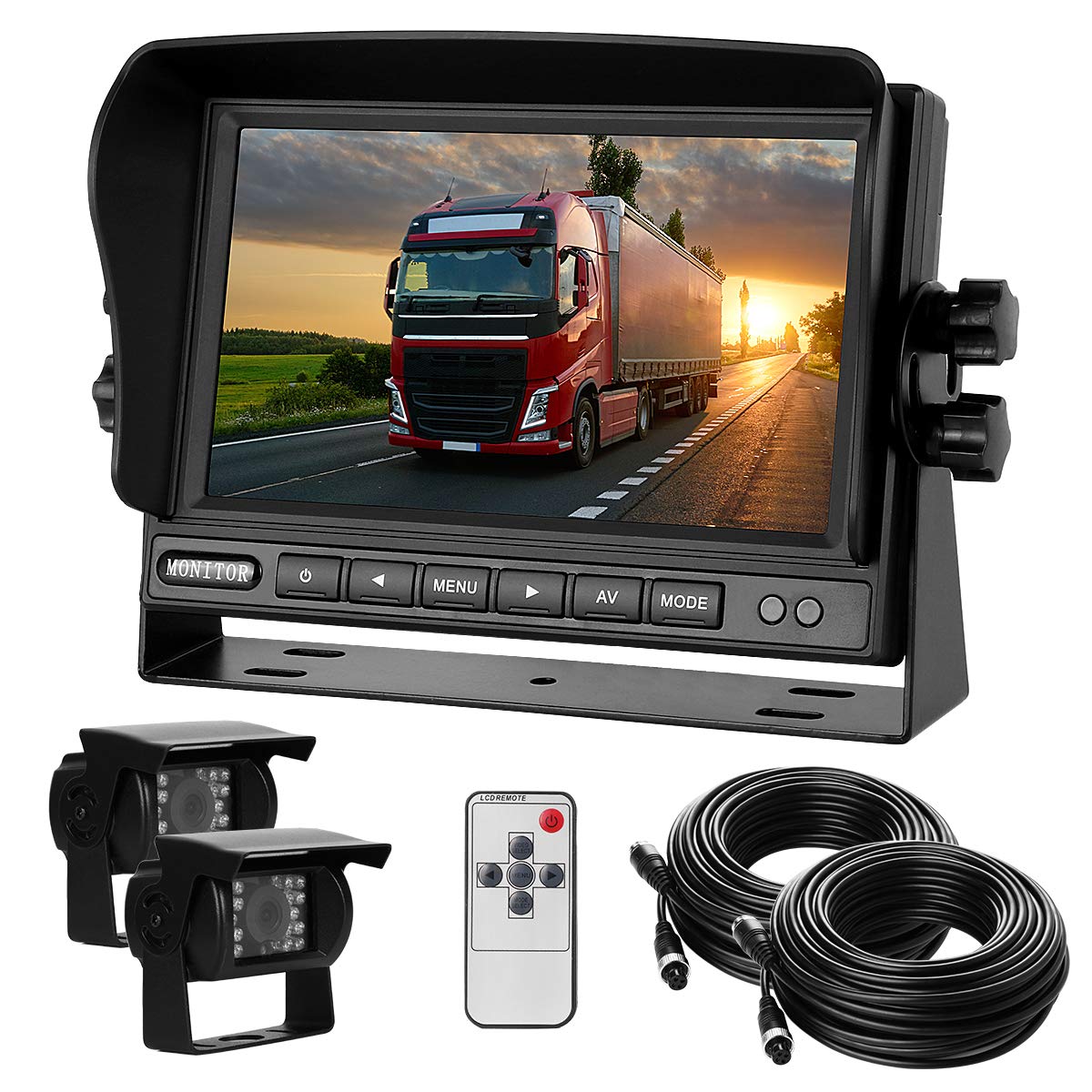

- 【7" Digital HD Color Display】 The 7-inch monitor with a large HD display (800x480) displays the rear view camera image with super sharp clarity. The monitor supports two video inputs. It automatically turns on and switches to the rear view image when reversing.

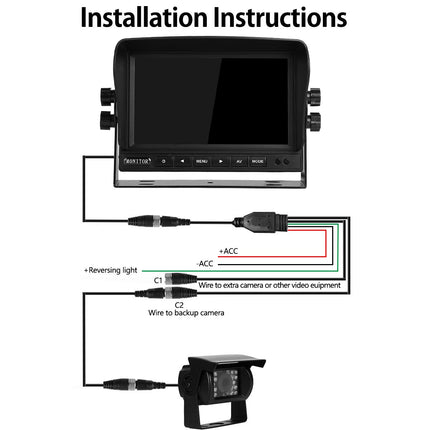

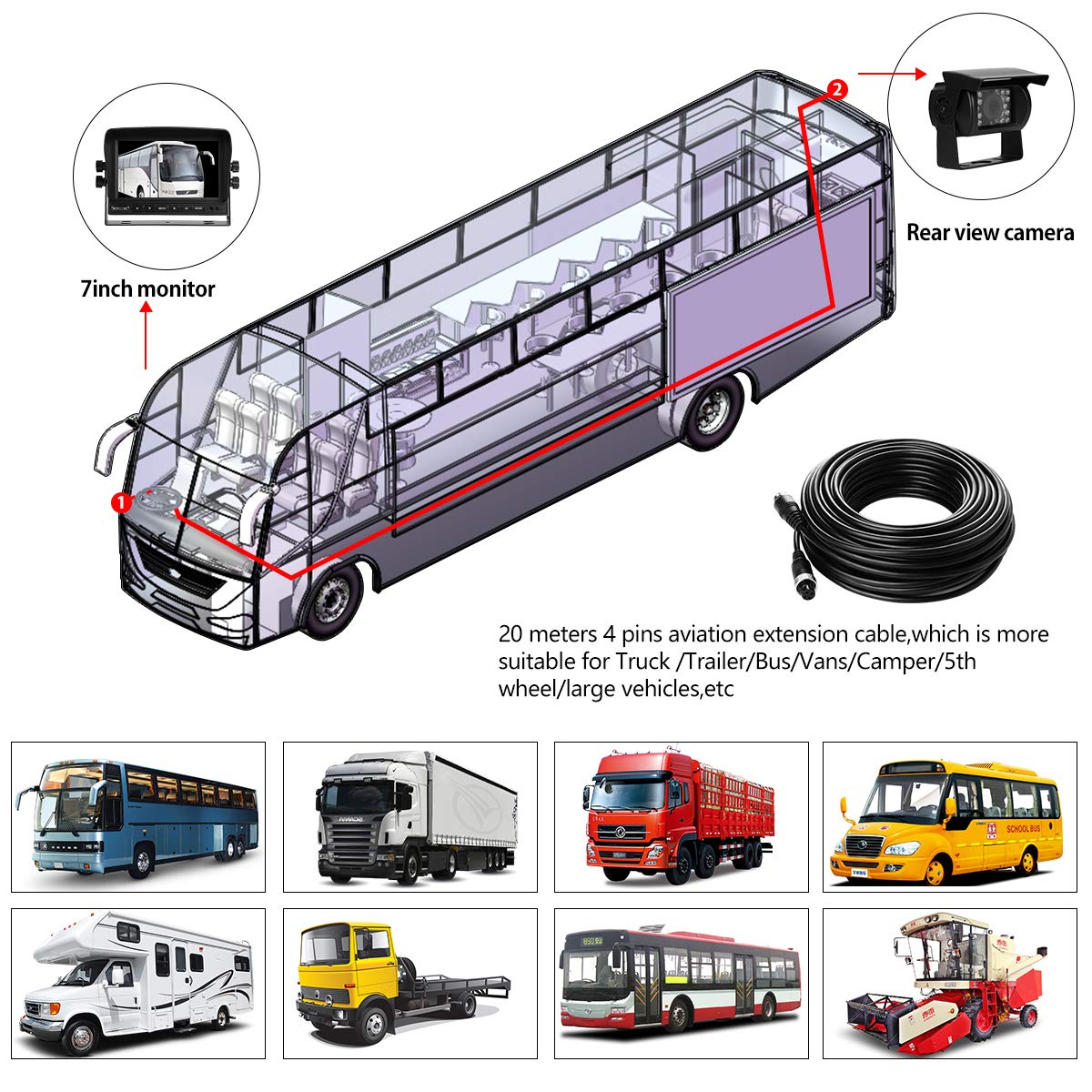

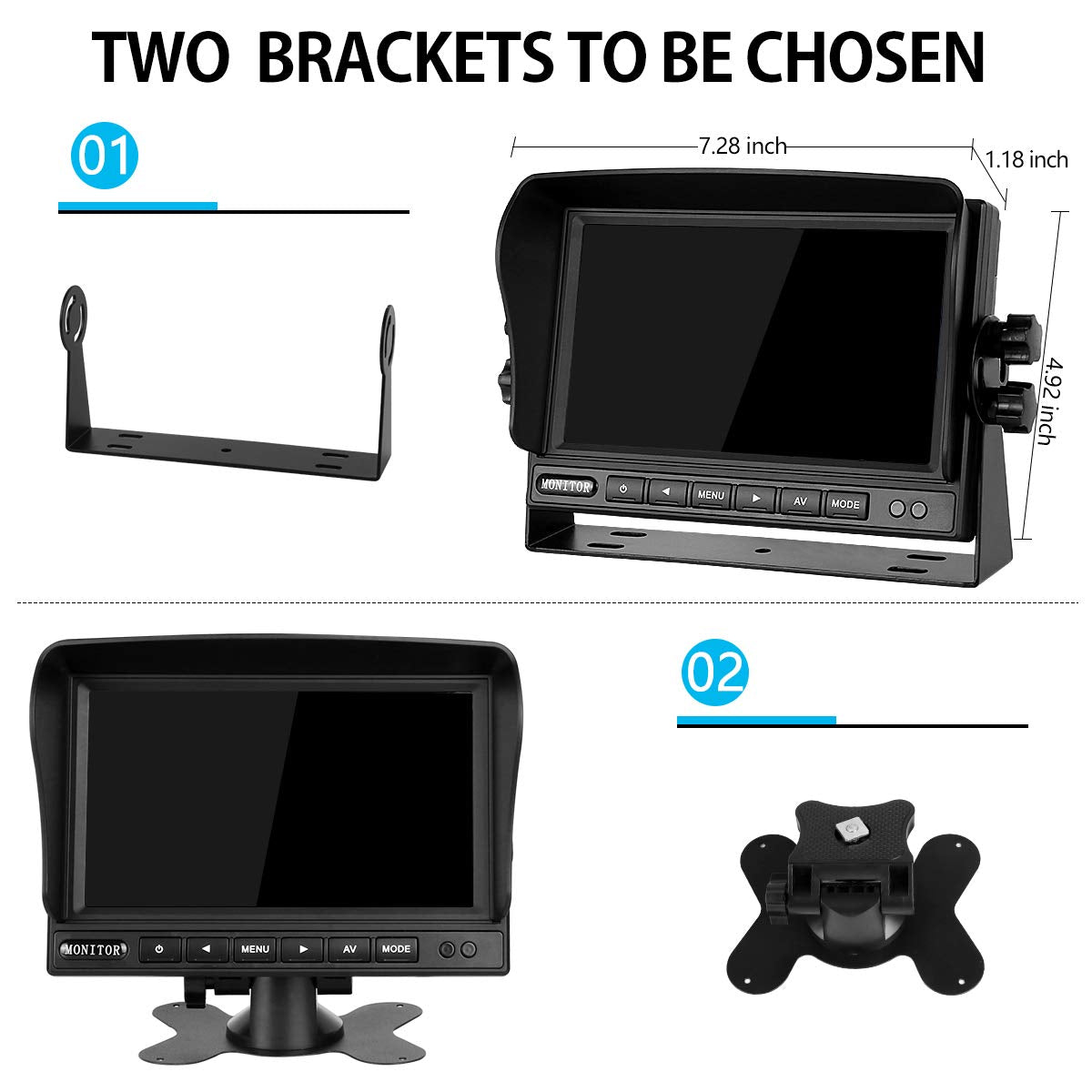

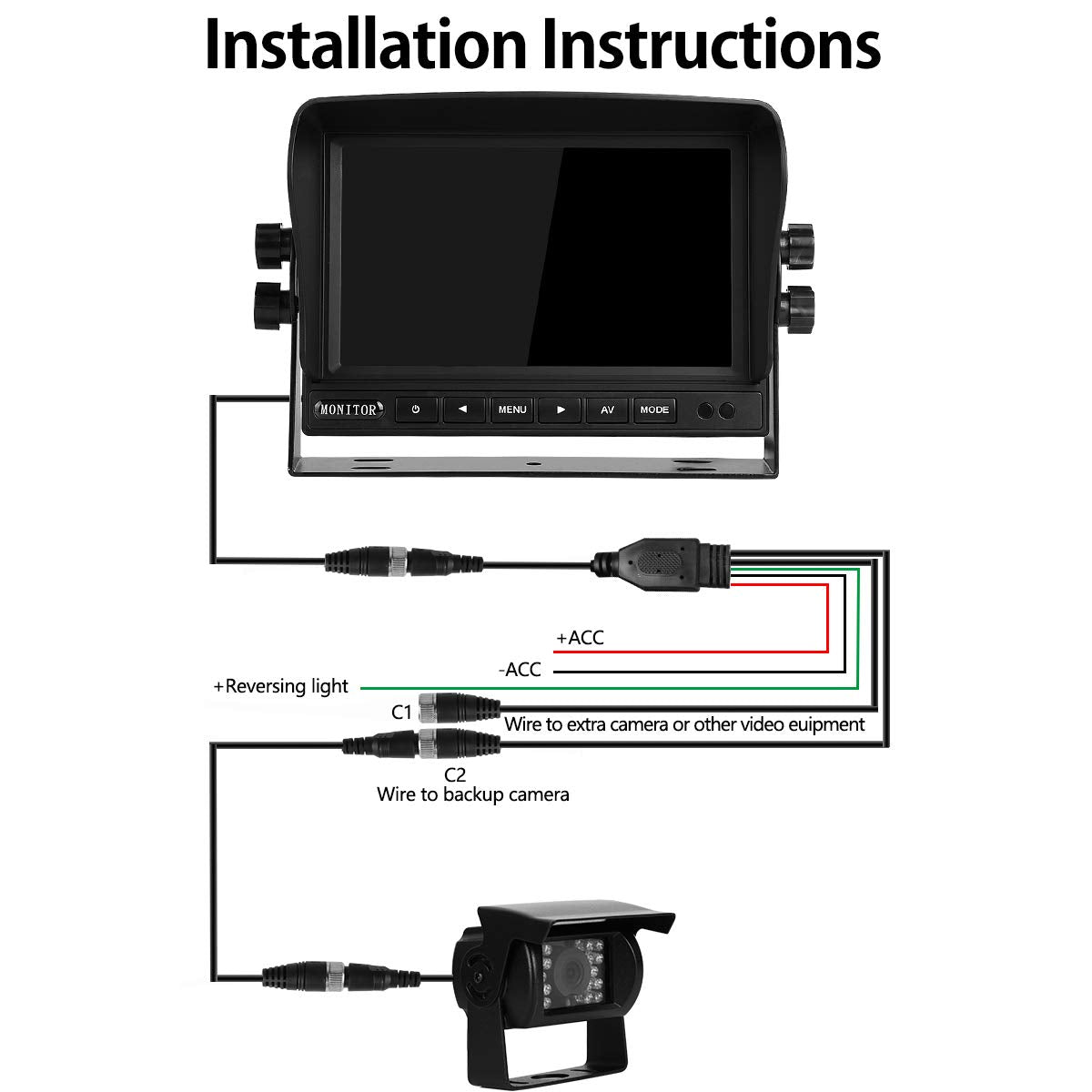

- 【Compatible with a Wide Range of Vehicles】The monitor comes with two optional mounts. You can mount it either upside down or upright on the dashboard. This rear view camera system comes with a 20m premium-quality four-wire connection cable, making it suitable for installation in a wide range of vehicles, including cars, trucks, trailers, buses, vans, agricultural vehicles, and heavy-duty vehicles.

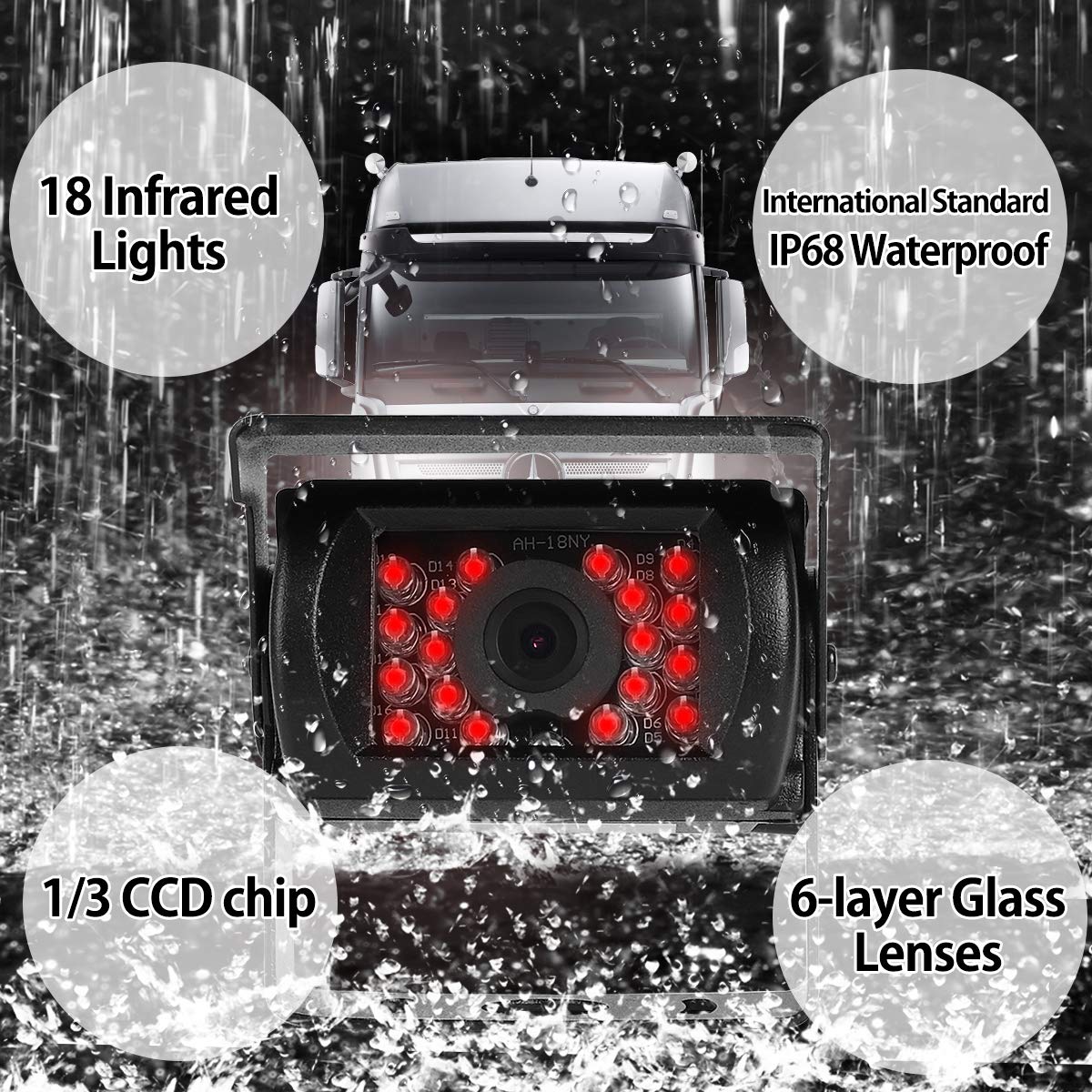

- 【Extremely wide viewing angle】 The 1/3 color CCD 480 TVL rear view camera with high-quality 6-layer glass lens offers a complete rear view behind your vehicle thanks to its 170° viewing angle, helping to reliably detect people and objects in the blind spot.
- 【IP68 & 18 Infrared LEDs】 Our camera is certified to the international IP68 waterproof standard, ensuring reliable performance in all weather conditions. A total of 18 infrared LEDs also provide excellent night vision, even in the absence of any ambient light.
- 【Customer Service】 This set impresses with its very easy installation. We also offer detailed instructions and technical support to all customers.
Binding: Electronic
Details: 12 V – 24 V rear view camera system
camera
-Image sensor: CCD
-Effective pixels: 752x582 pixels
-Lens angle: 170°
-IR LEDs: 18 pcs
-Screen resolution: 480 TV lines
-Current consumption:≤300mA
-TV system: PAL & NTSC
-Waterproof grade: IP68
-Operating voltage: DC 12V/ DC 24V
-Scanning system: 2:1 interlace
7-inch TFT LCD car monitor
-Screen size: 7 inch
-Screen resolution: 800W*RGB*480H
-Signal system: PAL&NTSC
-Video: 2-way video inputs
-Rear view: AV2 Auto-Reverse when the shutter is activated
-Viewing angle: up/down/left/right
-Operating voltage: DC 12V/ DC 24V
-Power consumption:<6W
-Operating voltage: the button operation and remote control
-Wide operating temperature:-10℃-+40℃,RH95% MAX

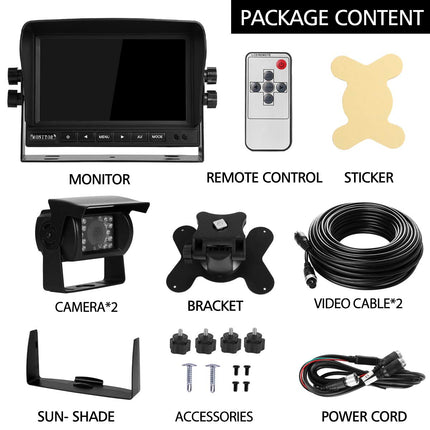

Package Included:
1 x monitor
2 x camera
1 x Power Video Cable
1 x instruction manual
2 x bracket
1 x sticker
1 x remote control
2 x 20 meter extension cables
12 x screws for rear view camera
EAN: 5712850860592
Package dimensions: 10.8 x 8.1 x 6.9 inches
