Description
Brand: DIHOOL
Color: 220V

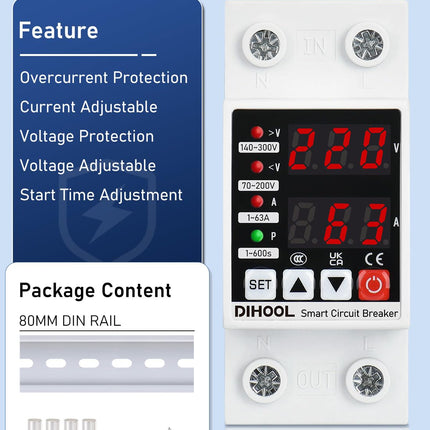

Characteristics:
- Adjustable overvoltage value, adjustable undervoltage value, adjustable overcurrent value and adjustable recovery time

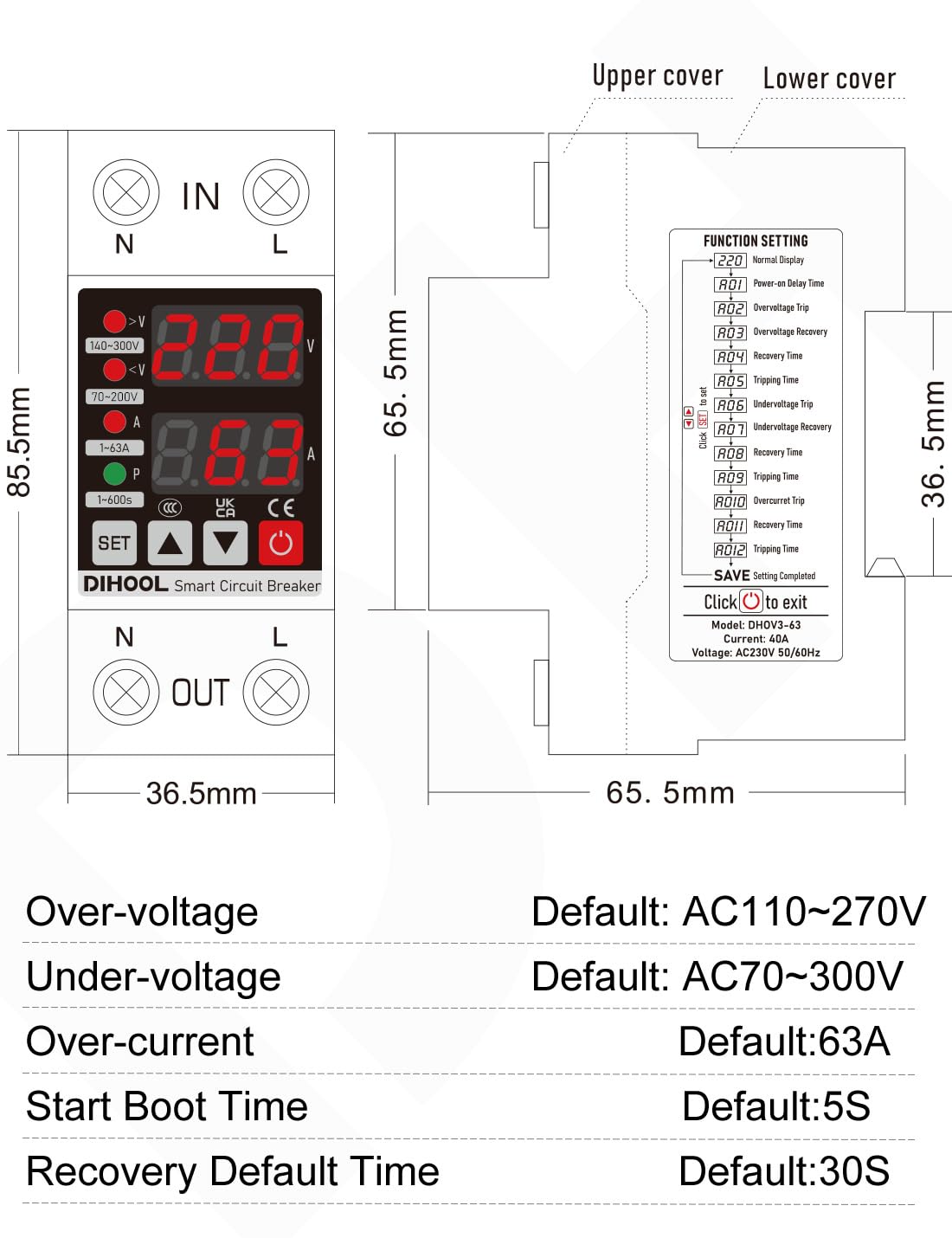

- Default value Overvoltage Trip Value: 275V; Undervoltage Trip Value: 175V; Overflow Trip Value: 63A
- Wait five seconds after power on, and if overvoltage/undervoltage/overcurrent occurs, wait 30 seconds to restore the circuit
- Please read the instruction manual carefully before use and adjust the overvoltage/undervoltage/current protection values according to your own needs
- You can find setup instructions on the product side. If the manual is missing, you can view it through the side view.

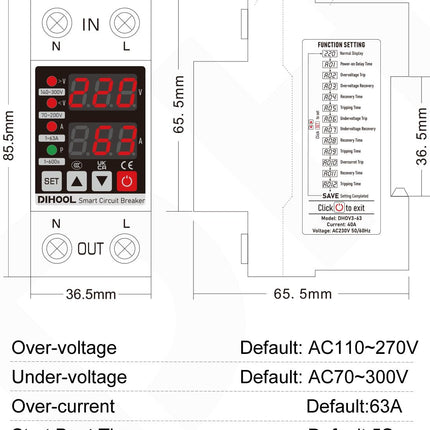

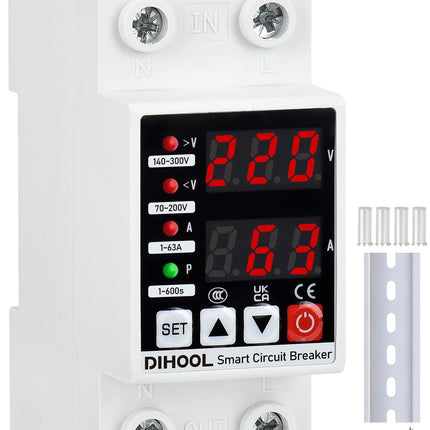

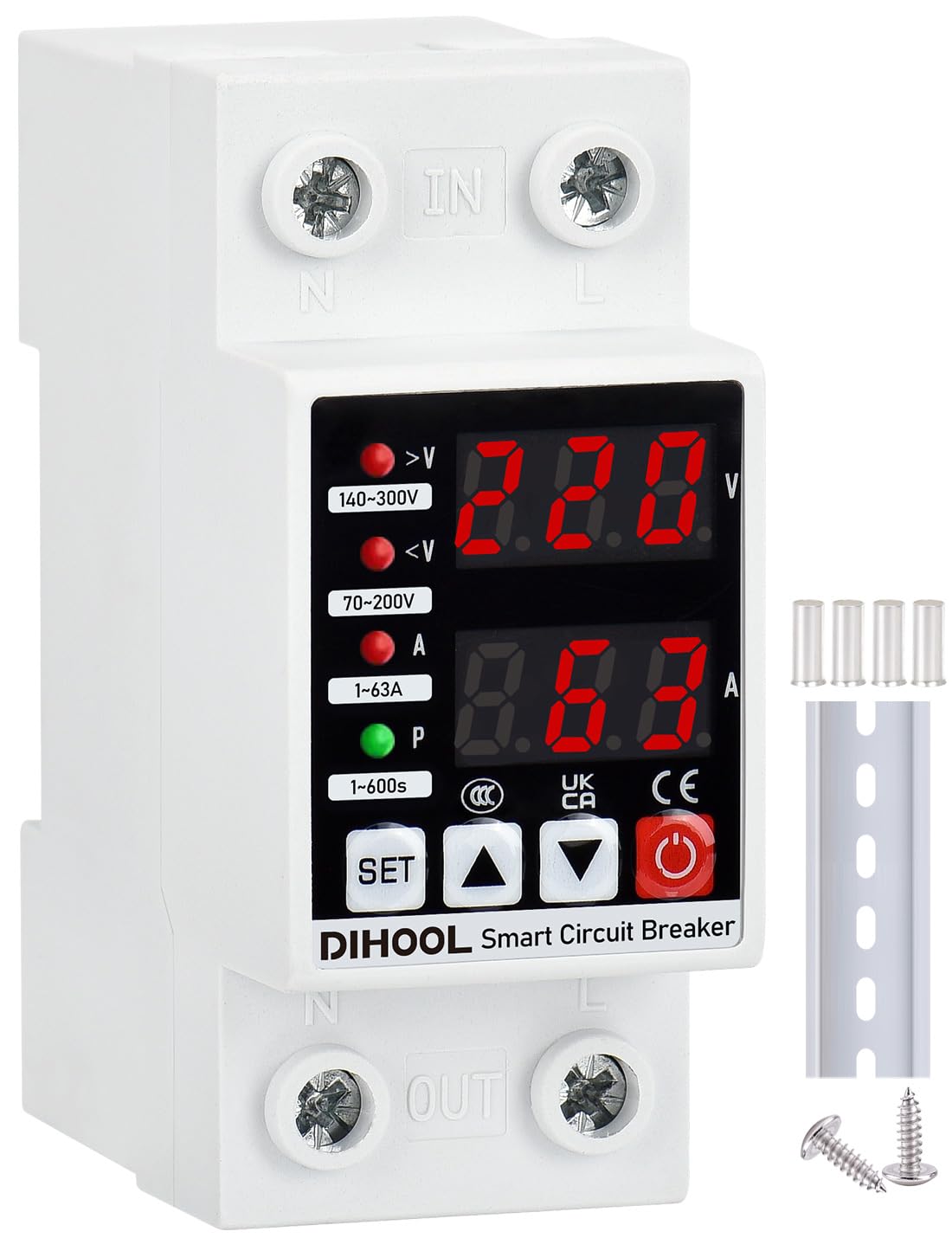

Model number: DHO-DHOV3-220V
Item number: DHO-DHOV3-220V
Details: DHOV3 overvoltage and undervoltage protector is an intelligent adjustable voltage protector. It integrates overvoltage protection, undervoltage protection, and overcurrent protection. Applicable to single-phase AC voltage 220V and 110V, rated operating frequency 50/60Hz, and maximum operating current 63A. In the event of overvoltage, undervoltage, and overcurrent faults in the live wire, this product can immediately cut off the power supply and protect electrical equipment from burning. When the line returns to normal, the voltage protector can automatically reconnect the line. The product's overvoltage value, undervoltage value, overcurrent value, and protection time can be set. It is mainly used for overvoltage/undervoltage protection of incoming lines of residential, photovoltaic, and factory distribution boards.

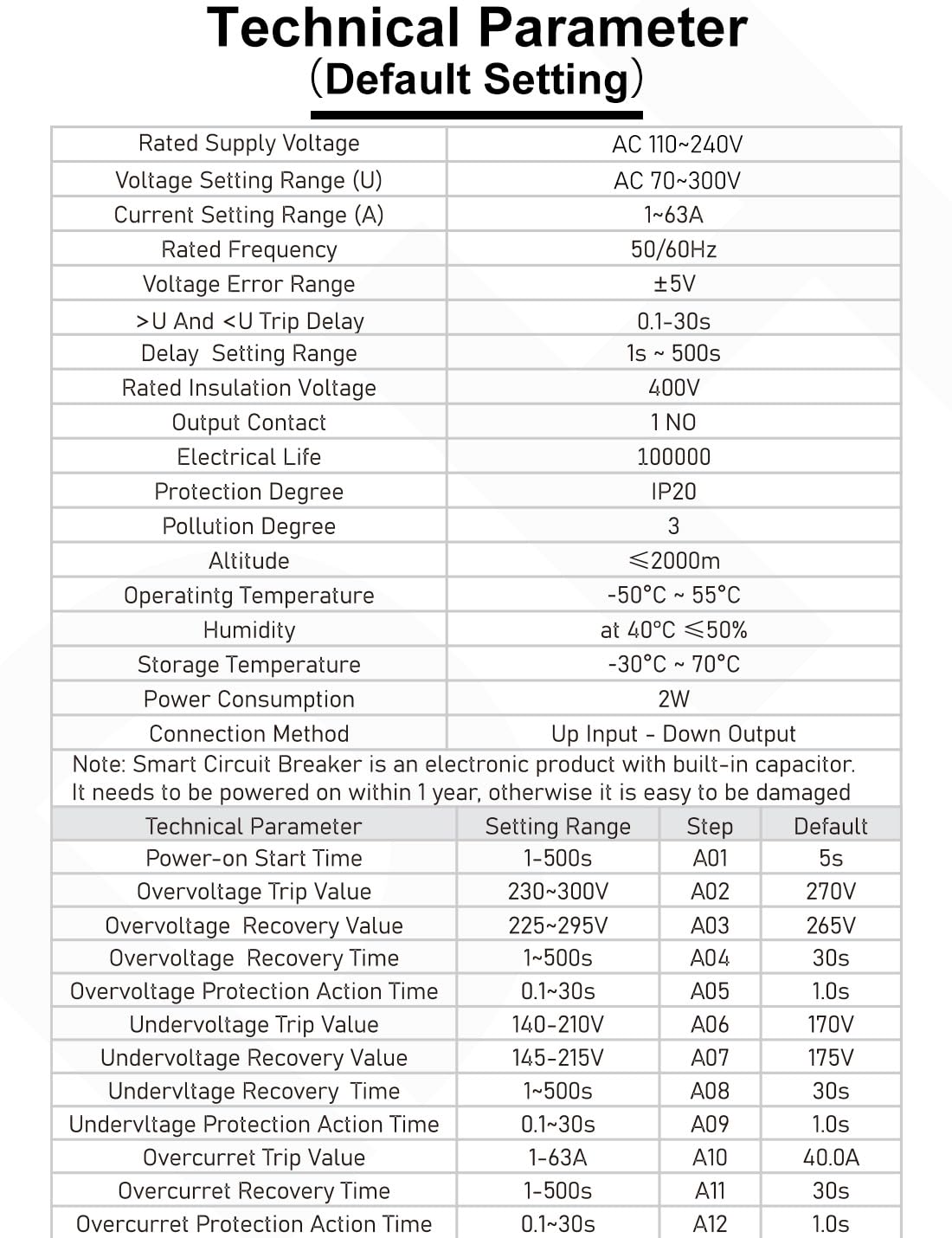

Rated voltage: AC 110V
Voltage setting range: AC 70~160V
Current setting range: 1~63A
Rated frequency: 50/60Hz
Voltage error range: ±5V
>U And Delay Setting range: 1s R600s
Nominal insulation voltage: 400V
Output contact: 1 NO
Electrical life: 100000
Degree of protection: IP20
Degree of contamination: 3
Altitude: ≤2000m
Operating temperature: -50°C
Humidity: at 40°C ≤50%
Storage temperature: Storage temperature
Power consumption: 2W
Connection method: Up input down output
Note: The surge protector is an electronic product with a built-in capacitor. It must be turned on within one year, otherwise it may be easily damaged.
Free exchange within 180 days
Package dimensions: 0.4 x 0.3 x 0.3 inches
