Description
Brand: APKLVSR
Characteristics:
- GPS Module: NEO-6M GPS module with LED signal indicator, standard baud rate: 9600, mounting hole size: 3 mm, 3V-5V universal power supply
- 【Integrated Antenna】: The NEO-6M GPS module features a built-in ceramic patch antenna. This integrated design eliminates the need for an external antenna and simplifies the installation process.
- 【Compatible with Arduino】:NEO-6M GPS module compatible with EEPROM MWC/AeroQuad antenna compatible with Arduino
- 【High-quality material】: GPS module made of high-quality materials, durable. This product is lightweight, easy to install, and has high compatibility.
- 【Application】：The GY-NEO6MV2 GPS module is compatible with all types of flight control modules and provides GPS computer test software
Binding: Electronic
Details: GY-NEO6MV2 NEO-6M GPS Flight Control Module 3V-5V with Super Strong Ceramic Antenna for Arduino EEPROM APM 2.5
Specification of the NEO-6M GPS module:
Voltage: 2.7 V to 5
Power consumption: 45 mA (normal mode), 11 mA (power saving mode)
Satellite tracking: 22 satellites on over 50 channels
Communication protocol: NMEA
Refresh rate: Up to 5 Hz
Sensitivity: -161 dBm tracking, -147 dBm detection
Antenna: Built-in patch antenna
Supports SBAS (WAAS, EGNOS, MSAS, GAGAN)
Operating temperature: -40 °C to +85 °C
Baud rate: Configurable, default at 9600 (supports higher rates 115200)

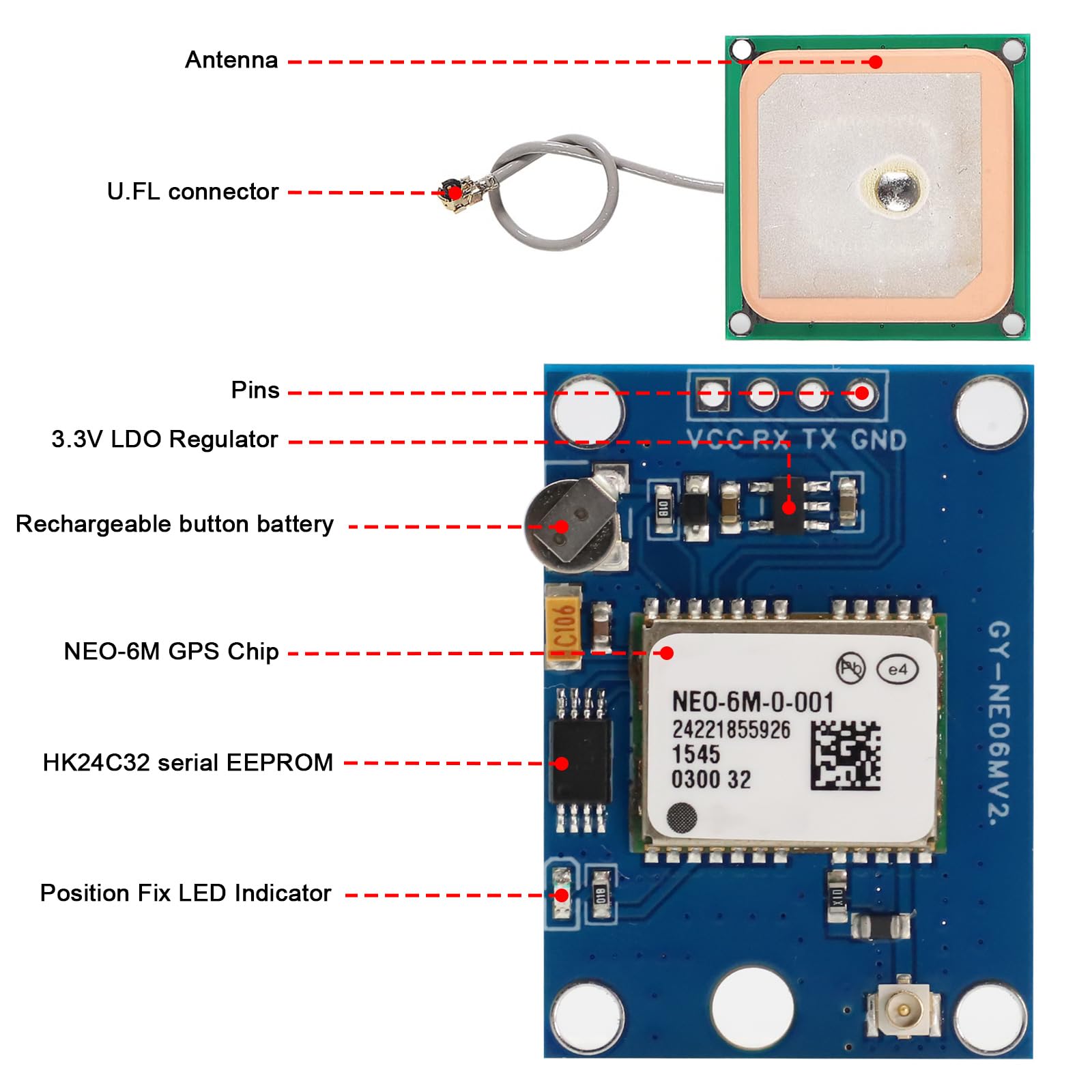

PIN:

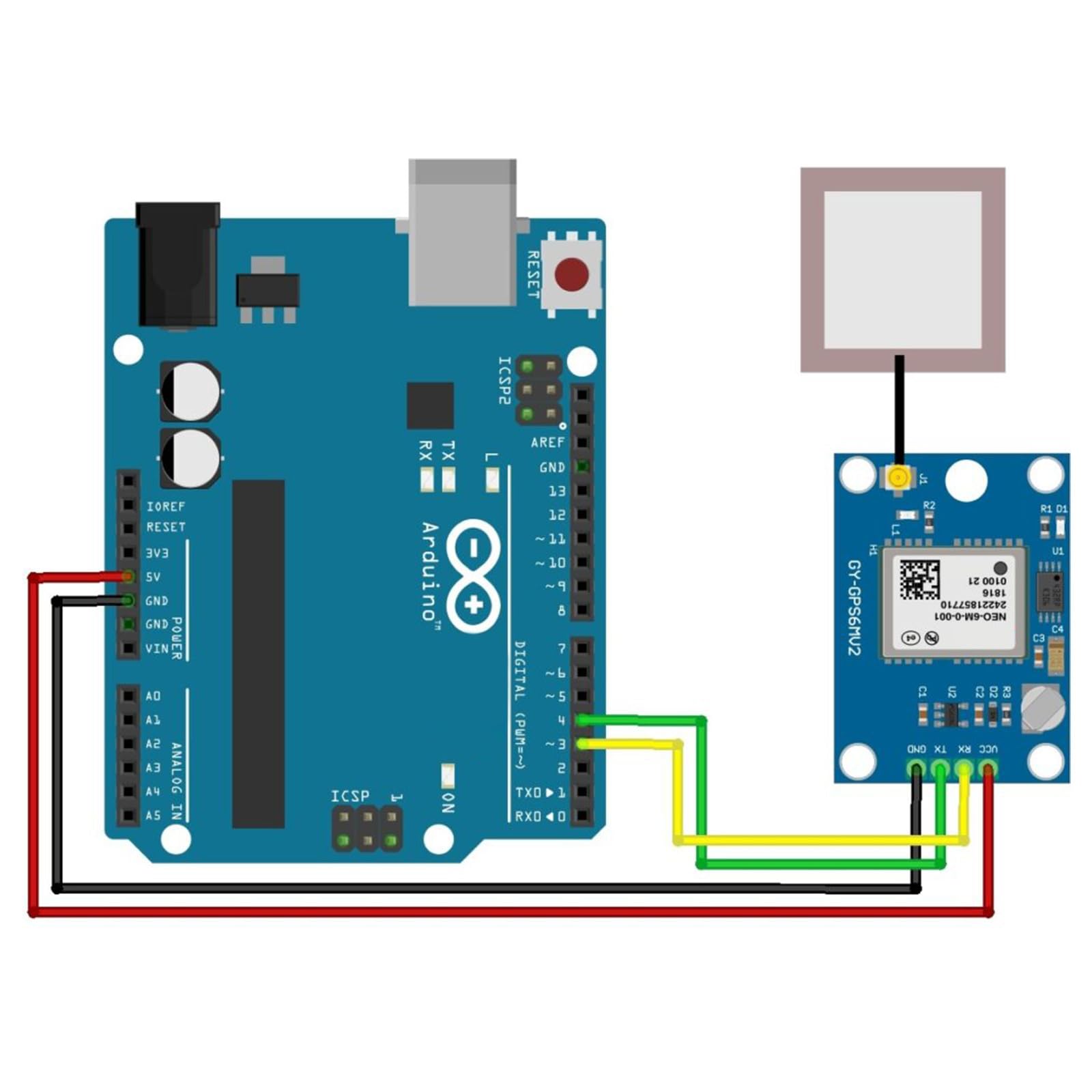

GND: is the ground pin and must be connected to the GND pin on the Arduino.
TxD: (Transmitter) pin is used for serial communication.
RxD: (Receiver) pin is used for serial communication.
VCC: supplies power to the module. You can connect it directly to the 5V pin on the Arduino.
Delivery contents:

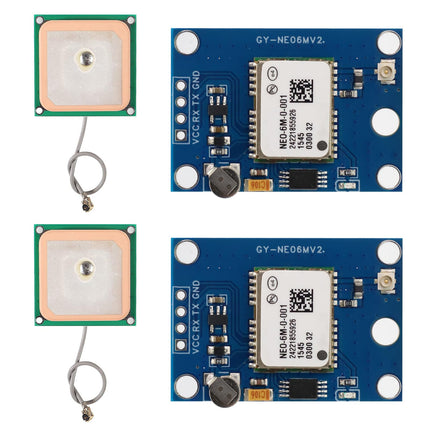

2 * GY-NEO6MV2 GPS module

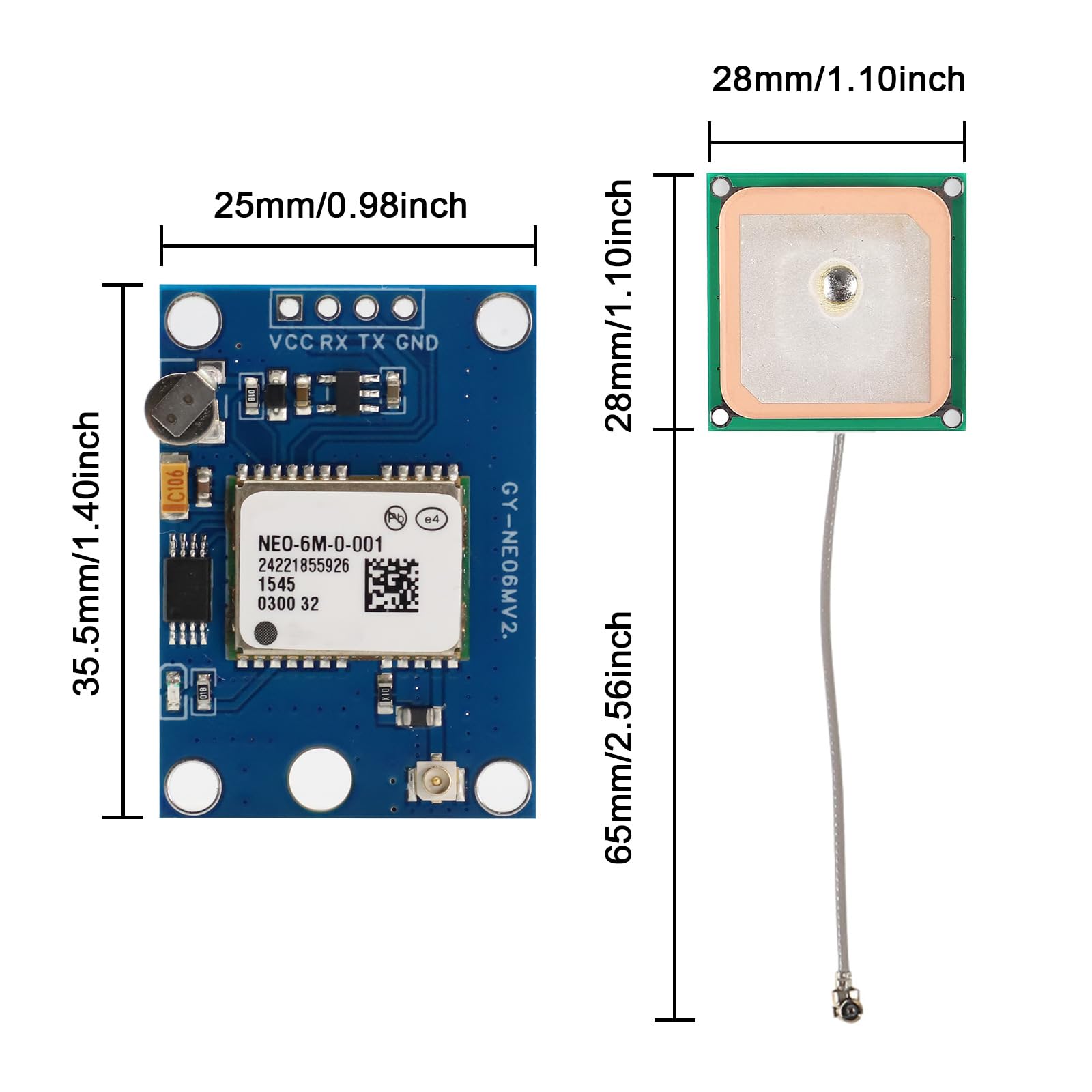

Package dimensions: 4.7 x 3.0 x 0.6 inches
