Description
Brand: ANKEWAY
Color: Black
Characteristics:
- 【Usage】: This product serves as an external steering wheel controller, allowing you to control various functions of your car radio using buttons. It is widely compatible with a wide range of vehicle models. If the steering wheel controls in your car no longer work, this product will be very helpful.
Binding: Electronic
Model number: AW1011
Item number: AW1011

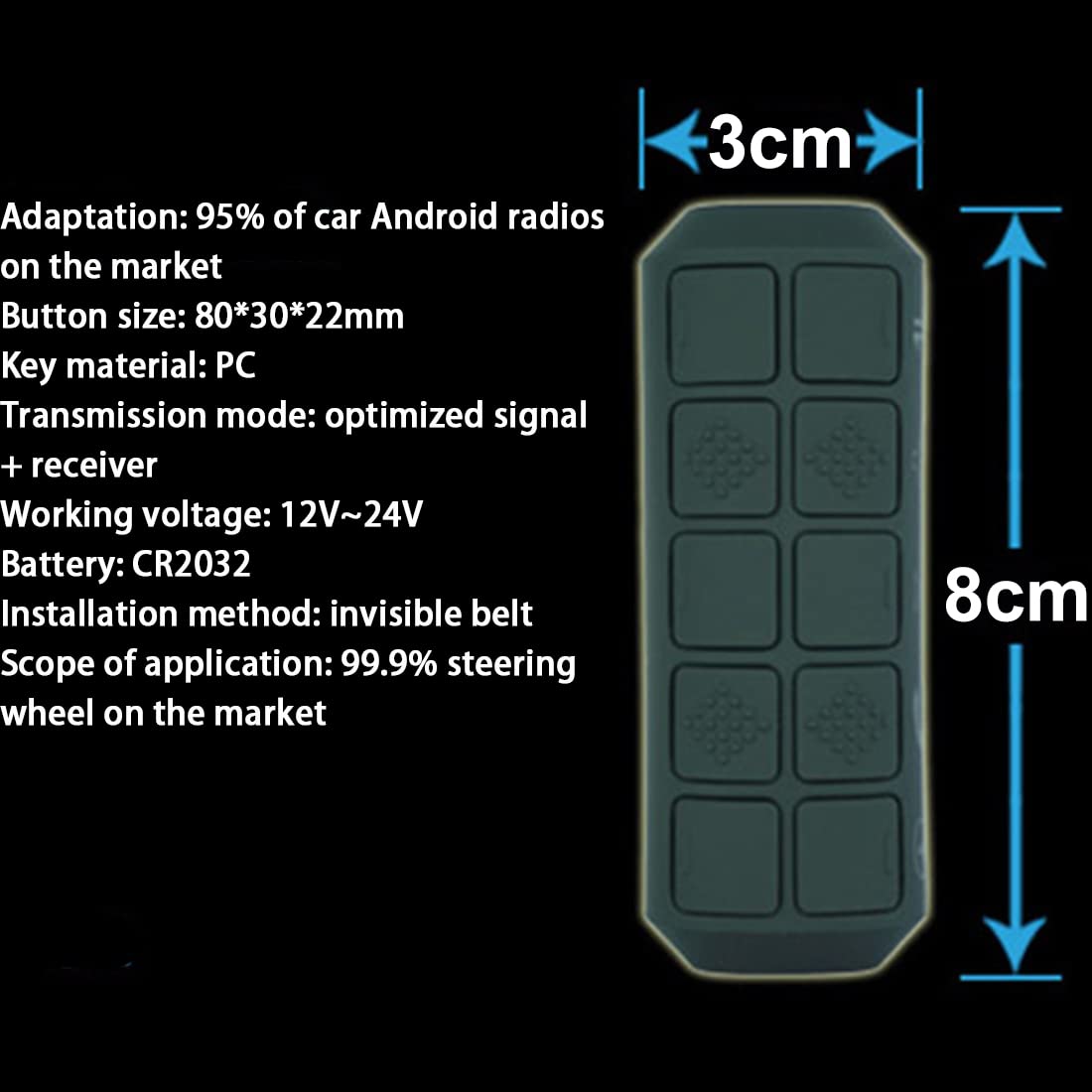

Details: Product Specifications Project Type: Steering Wheel Remote Control This product is perfectly compatible with the ANKEWAY series Android car radio. Material: High-quality silicone Color: Black Shape: Crescent Battery: CR2032 NOTE: If the backlight and buttons do not work, replace the battery. Remote Control Dimensions: 8.0 x 3.0 x 2.0 cm

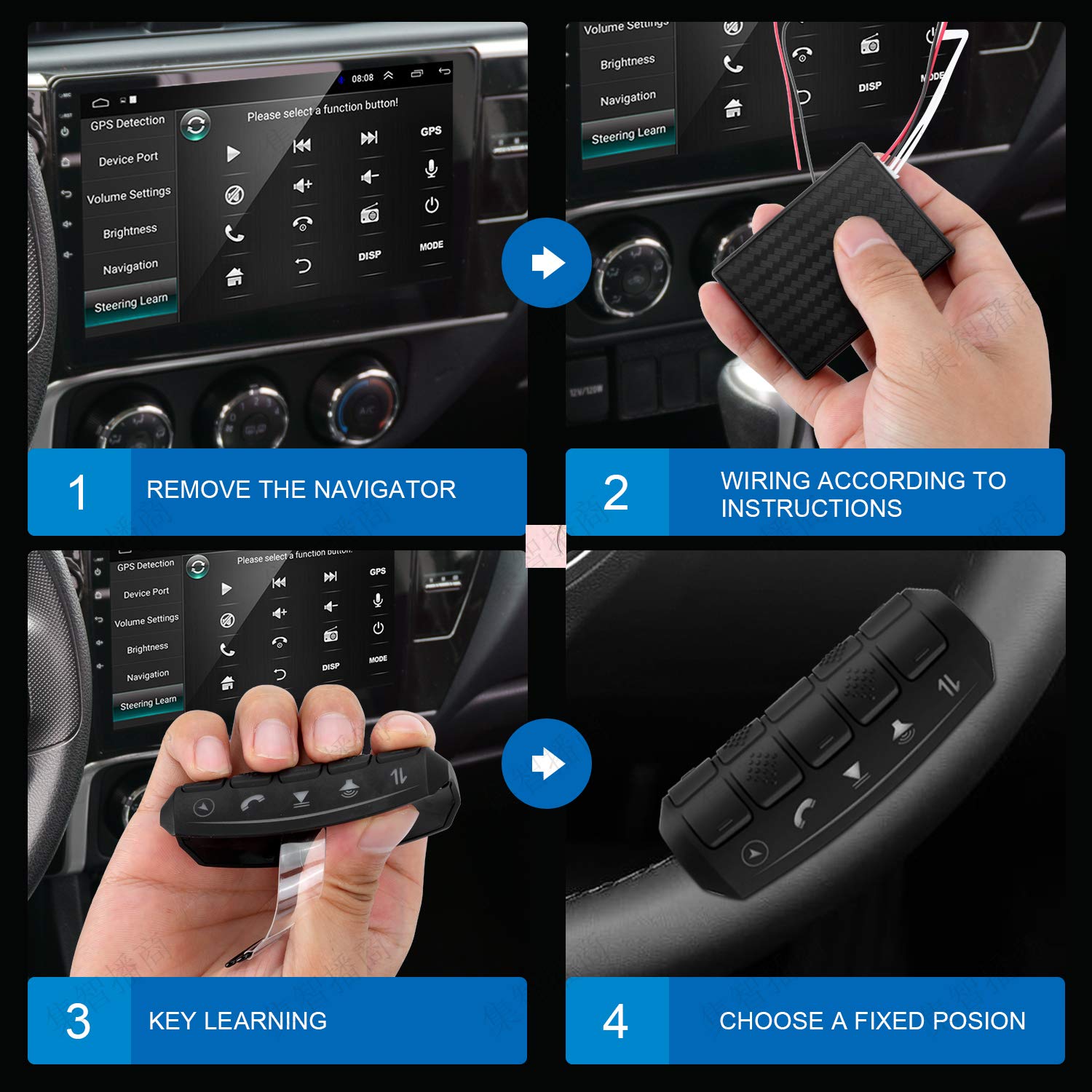

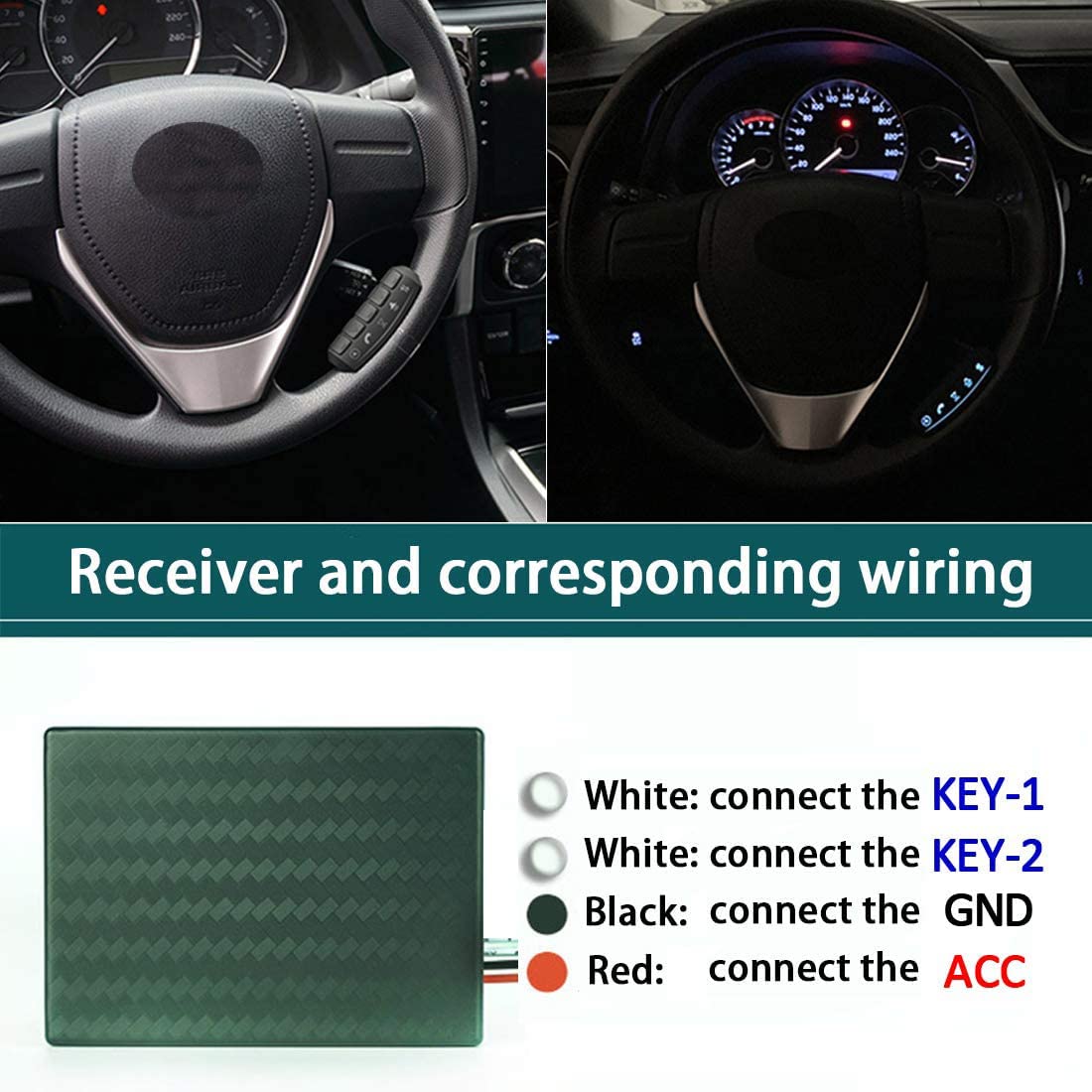

Installation and Debugging Methods Step 1: Install the battery (battery model: CR2032). Ensure the positive and negative poles are correct. The screws should not be overtightened to ensure the button can be pressed normally. Step 2: Installation and Fixing: Fix the remote control to the steering wheel. Step 3: Wiring: Connect the red wire to "ACC." The black wire is open or connected to "GND." Two white wires are connected to the steering wheel control lines "KEY1" and "KEY2" of the Android radio. Step 4: Setting Button: Open the settings interface of the Android radio steering wheel system. Press and hold the button on the steering wheel, then click any button on the radio screen to set and define the button function.

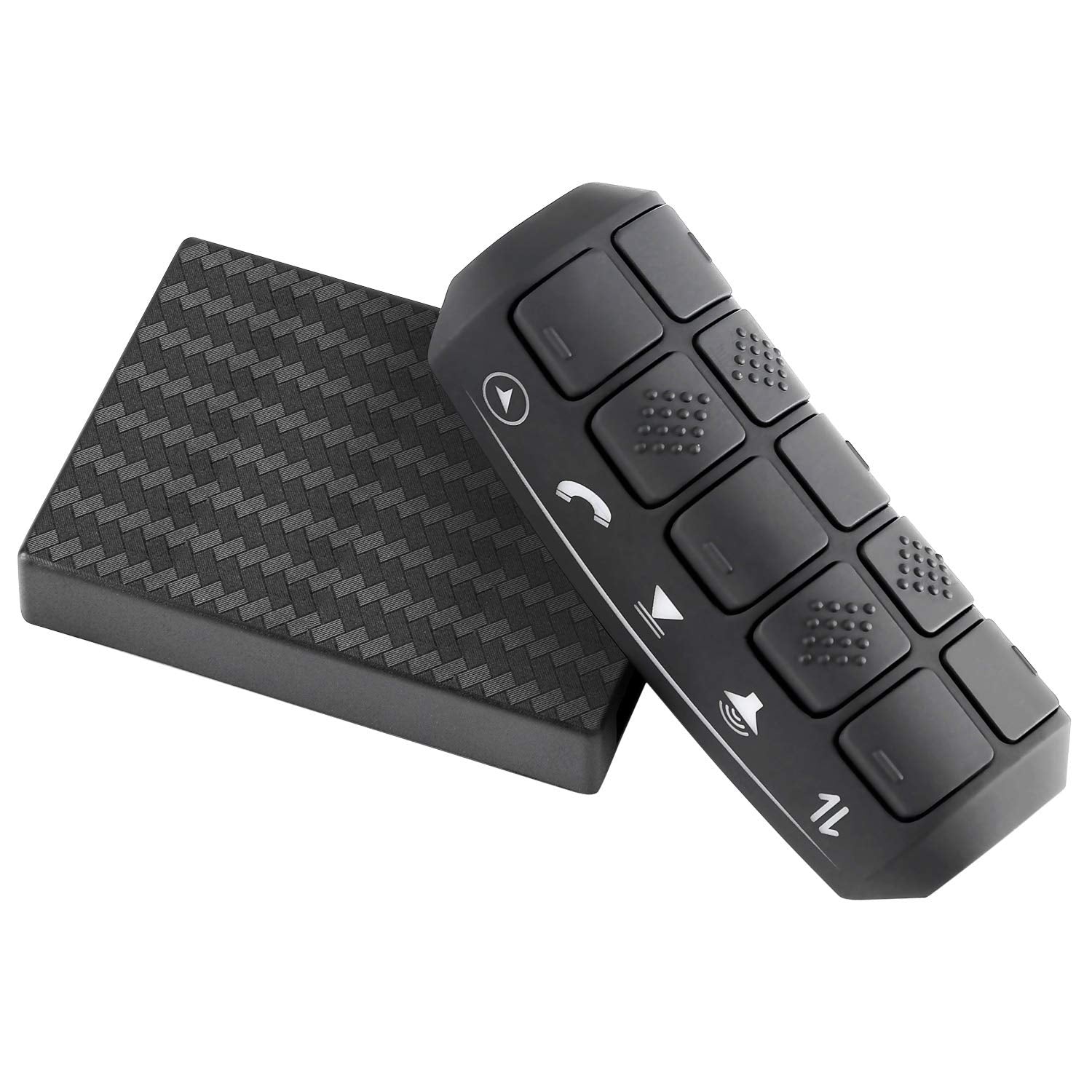

What you get 1 x Steering wheel remote control 1 x Receiver 1 x Connection cable 1 x Mounting screw 1 x User manual
EAN: 0778836681020
Package dimensions: 4.6 x 3.6 x 1.4 inches
