Description
Brand: DUR-line
Color: silver
Characteristics:
- Connections: F-connector – F-socket
- Frequency range: 5 to 2500MHz
- Through loss: 0.3dB
- DC pass-through for remote power supply
- Protects your valuable devices such as TV, receiver, multiswitch from lightning strikes
Binding: Electronic
Model number: DLBS 3001
Item number: 10750
Details: DUR-line 10750 Satellite Surge Protection Lightning Protection DLBS 3001
Connections: F-connector - F-socket
Frequency range: 5 to 2500 MHz
Transmission loss: 0.3db

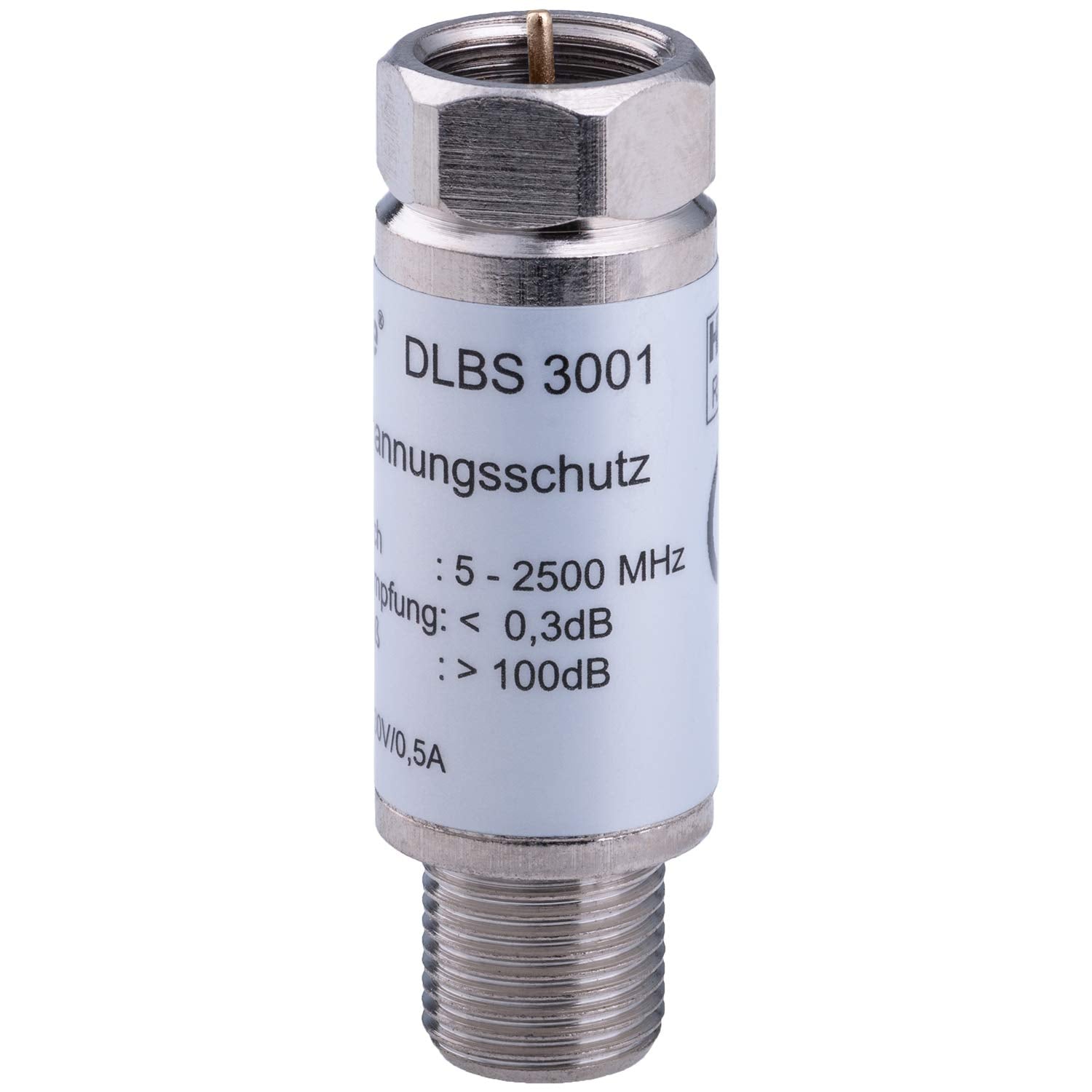

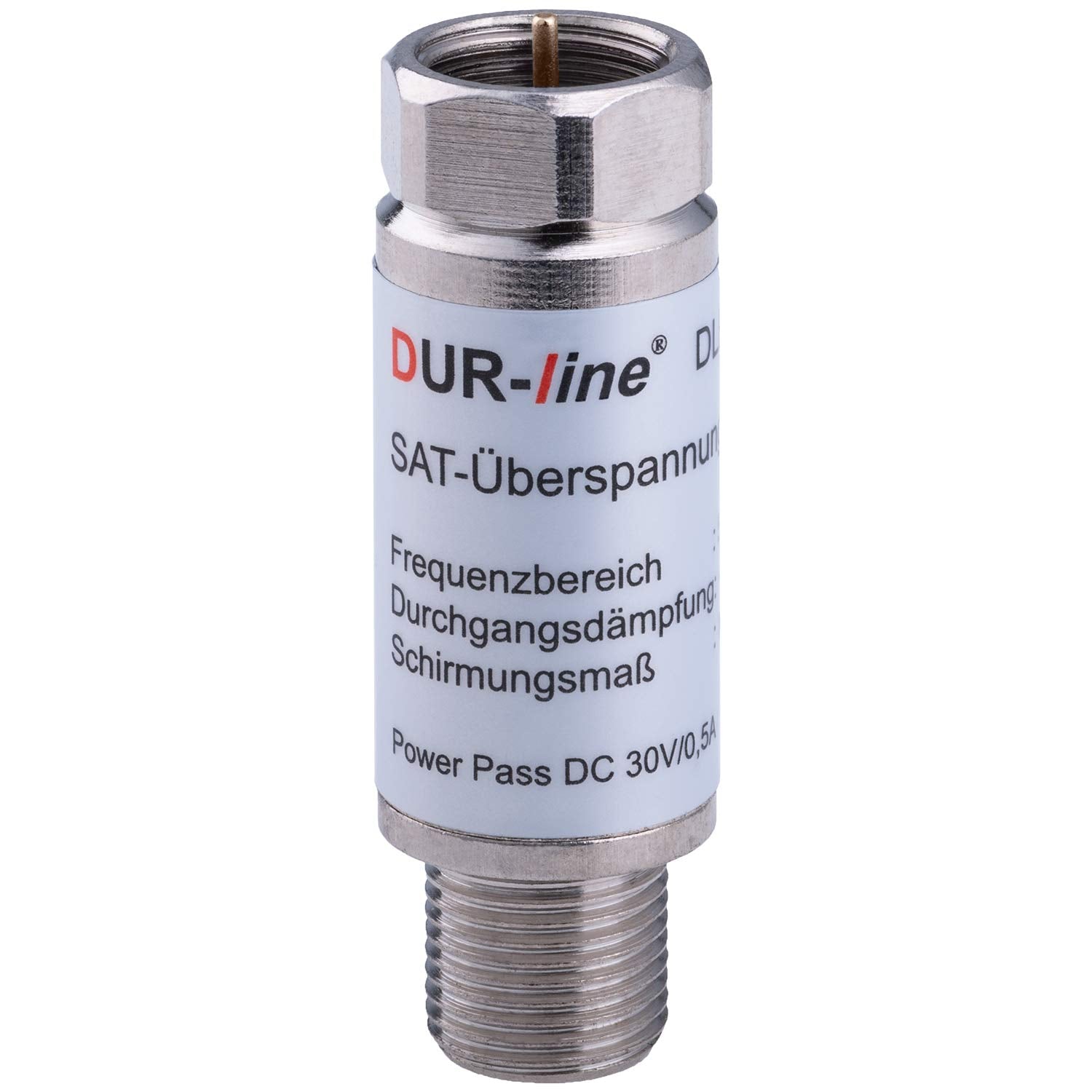

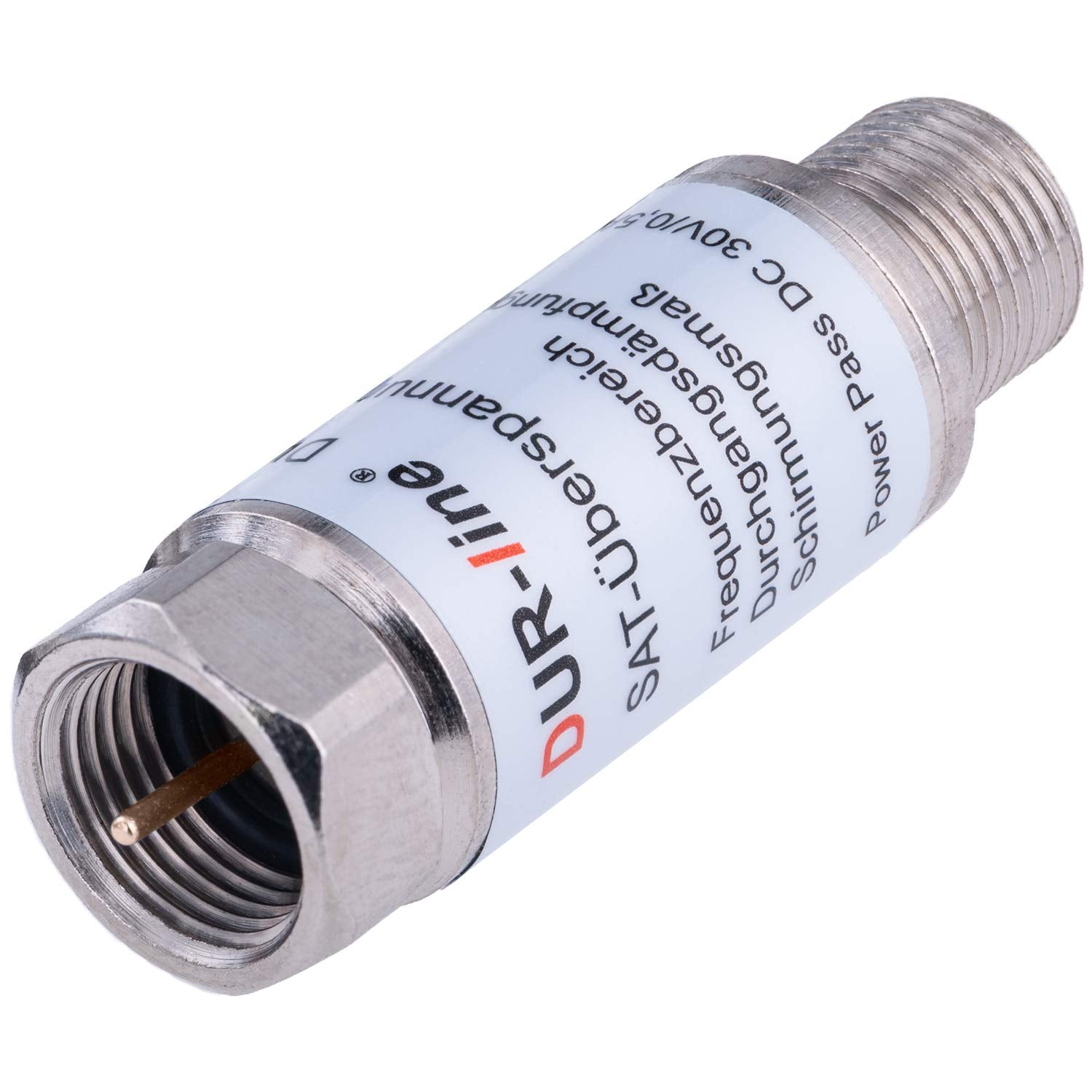

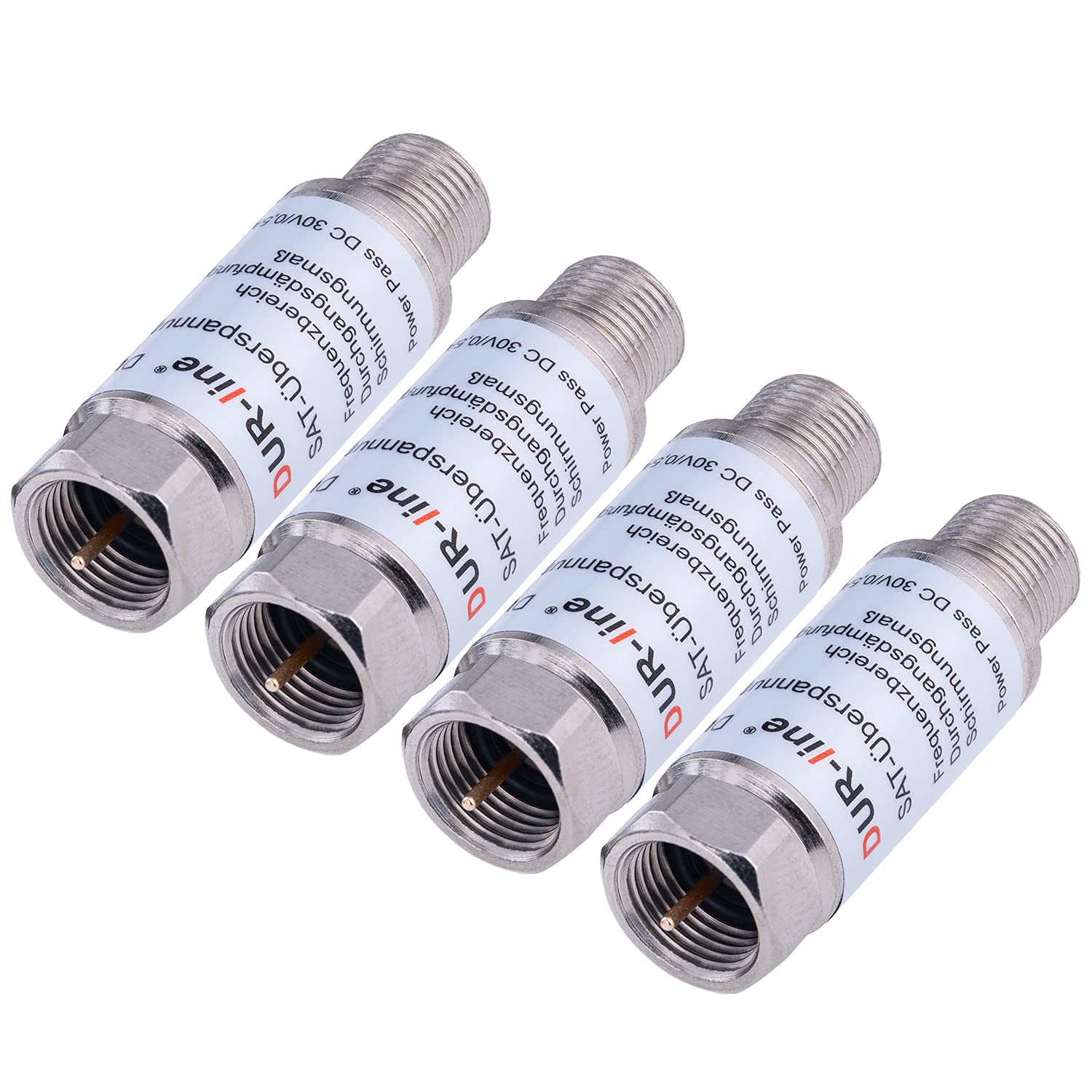

Surge protection Dur-line DLBS 3001

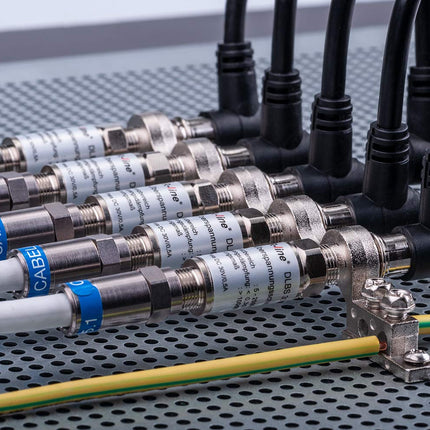

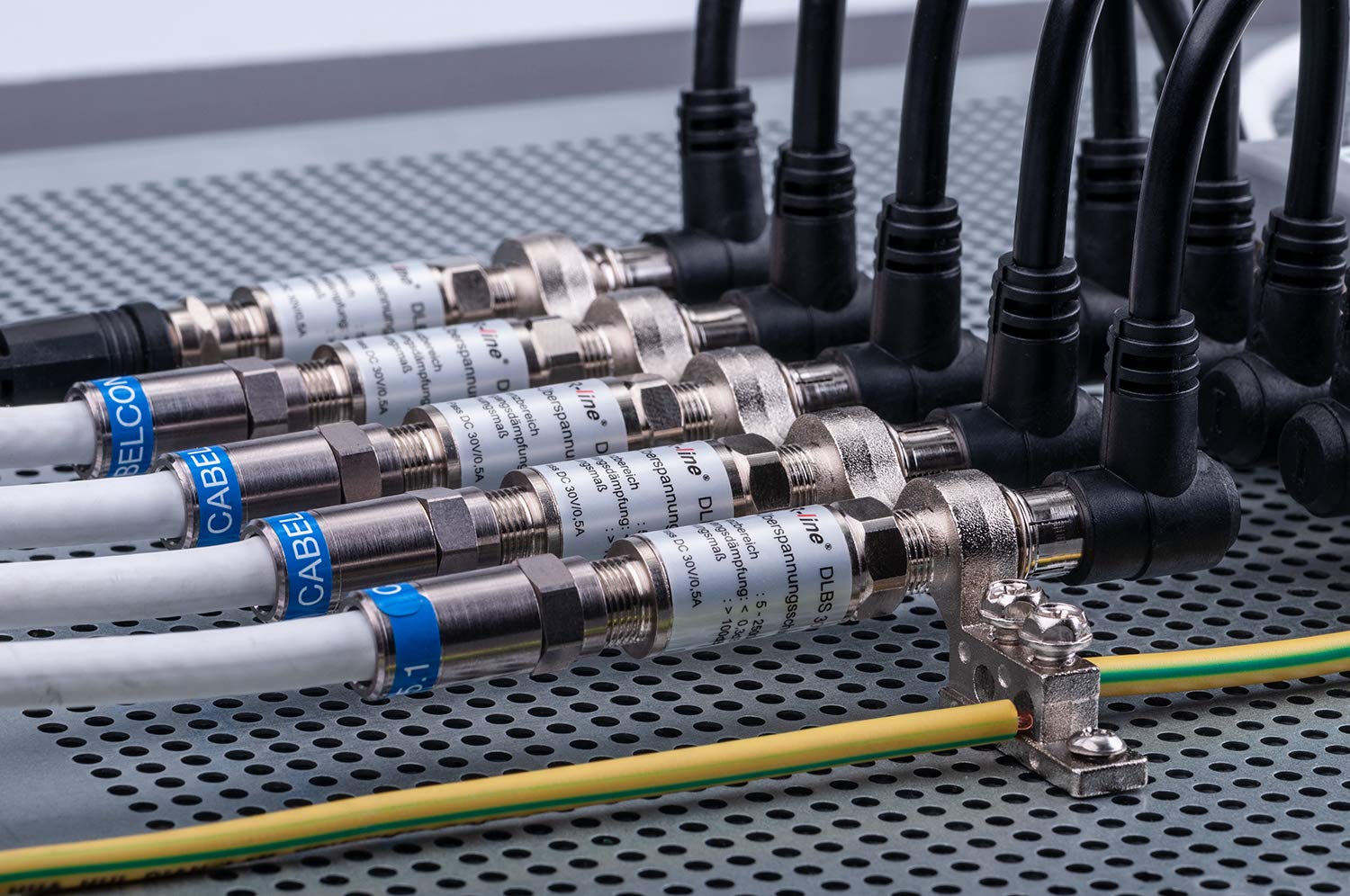

Due to global warming, we are demonstrably seeing an increase in severe storms every year. This is also leading to a growing number of lightning strikes in Germany. This creates pulse-like electrical fields that have a destructive effect even at a distance of several hundred meters. The resulting overvoltages destroy electrical devices connected via the antenna, such as multiswitches, LNBs, receivers, and TVs. These electromagnetic fields, which generate induction peaks, reach electrical devices unhindered via coaxial cables. The Dur-line DLBS 3001 protects your devices at a low cost. This surge protector should be screwed directly onto each multiswitch input or directly onto each LNB output. The through loss of this DLBS 3001 is only 0.3 dB. Inside the Dur-line DLBS 3001, a gas conductor acts as a voltage monitor. If the voltage between the core and the shield exceeds 200 volts, a short circuit occurs in this gas path, short-circuiting surge currents of up to 8,000 amperes before they can have a destructive effect on downstream devices. Once the overvoltage is over, the gas conductor switches back to protection.
Technical data
Article No. 10750
Connections: F-connector - F-socket
Suitable for outdoor use; F-connector with sealing ring
DC pass-through for remote power supply
Frequency range: 5 to 2500 MHz
Impedance 75 ohms
Transmission loss: 0.3db
Solid metal housing
Shielding level 100db
Digitally compatible
Return attenuation greater than 20dB
Current carrying capacity 8 KA (8/20 üs)
Dimensions: length 4cm, diameter 1.4cm
EAN: 4260165021807
Package dimensions: 3.3 x 2.0 x 0.8 inches
